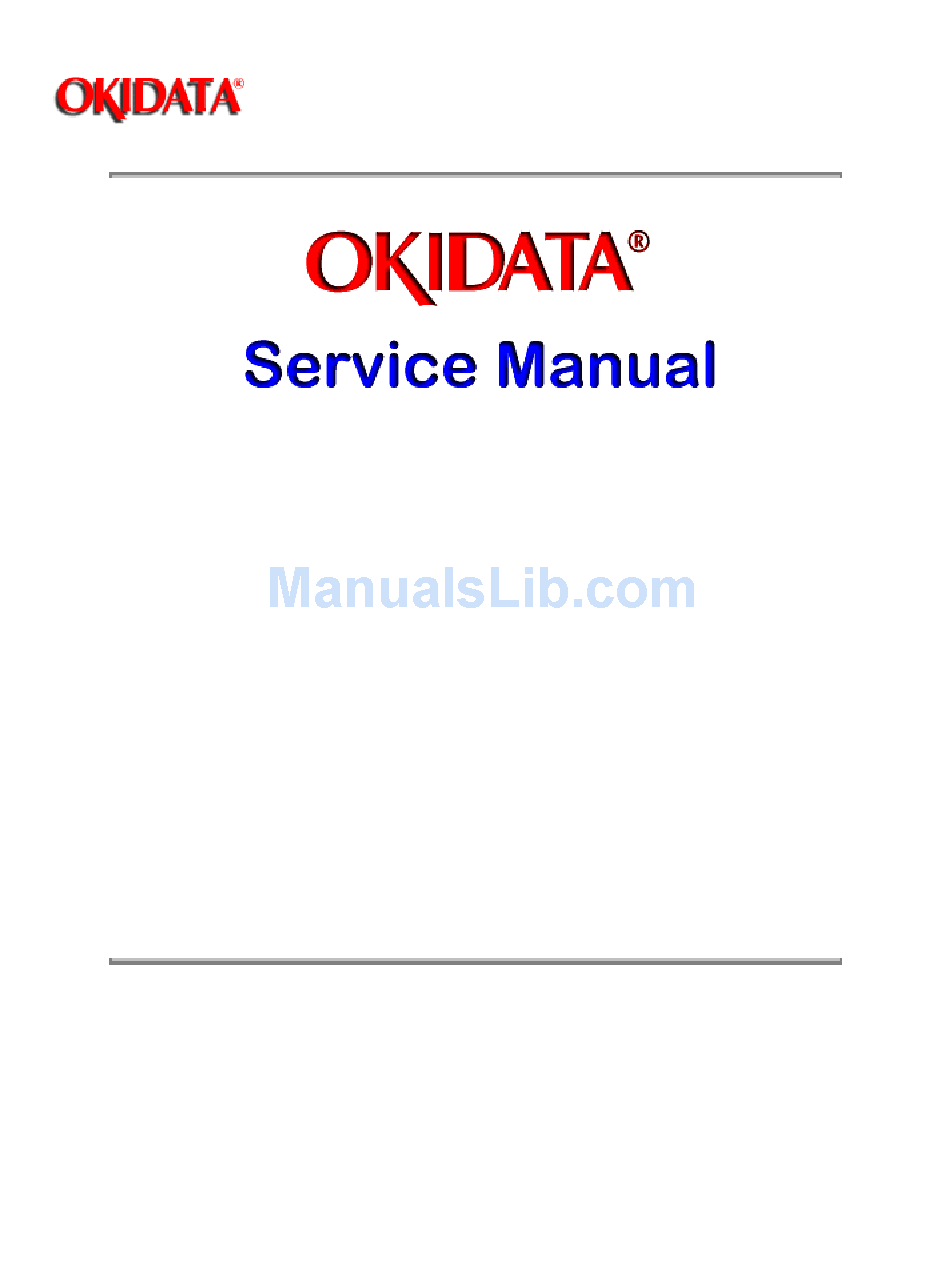

OKIDATA OF1050 Service Manual

Facsimile products

page of 449

/ 449
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual

OKIFAX 1050 // 2350 // 2450

Note: This Adobe Acrobat version of the Okidata Service Training Manual was built with the

pictures rendered at 300 dpi, which is ideal for printing, but does not view on most

displays well.

Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

FACSIMILE PRODUCTS

Adobe Acrobat printable reference

copy of the OKIDATA Service Training Manual.

Service Guide OF1050/2350/2450

Chapter 0 About This Manual

09/17/97

Page: 1

Table of Contents

Need help?

Do you have a question about the OF1050 and is the answer not in the manual?

Questions and answers

Summary of Contents for OKIDATA OF1050

Page 1 300 dpi, which is ideal for printing, but does not view on most displays well. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 2: Table Of Contents
Table of Contents Page Service Guide OF1050/2350/2450 0 About This Manual Front Cover Federal Communications Commission Requirements for End Users FCC Telephone Consumer Protection Act Canadian Department of Communications Requirements for End Users Federal Communications Commission Radio Frequency Statement Canadian Department of Communications Radio Interference...
Page 3 Table of Contents Page ..Recording paper ..Document stacker 2.6 AC Cord Connection 2.7 Telephone and Line Connections 2.8 Packing for Shipment 2B. Programming and Initial Settings ..2.9.2 Technical Functions ..2.9.2.02 TEL/FAX automatic switching ..2.9.2.03 TAD mode ..TEL/FAX mode flow chart ..TAD mode flow chart ..TAD mode flow chart ..2.9.3 Technical Functions Example...
Page 4 Table of Contents Page ..2.9.14.02 CONF. RX MSG. PRINT ..2.9.15 Off-line Tests ..2.9.16 On-line Tests ..2.9.16.02 Reception ....Fig. 2.9.5 Typical Transmission Flow ....Fig. 2.9.6 Typical Reception Flow 2C. Installation of Optional Units ..2.10.02 Procedure ..Installation of the memory board ..Installation of PCIU (PC interface) board 3 Board Description/Printer Operation Section 1: Board Description - 3.1 Unit Configuration and Block Diagram...
Page 5 Table of Contents Page ..Okifax 2350/2450 G3 Receive Picture Signal ..Okifax 2350/2450 Report Print Signal 3.9 Power Supply Unit ..General functional description ..3.9.02 Power Supply Unit (FXVE/FXVH) ..3.9.03 FXVE (for 120 V)/FXVH (for 230 V) Circuit Diagram (2/2) 3.10 NCU Board 3.11 TELU Circuit Diagram (option) ..Block Diagram of TEL-U (option) ..Relationship between NCUU and TEL-U...
Page 6 Table of Contents Page ..4.2.6 Lower Base, Motor Assembly, Back-up Roller, Transfer Roller, Reset Levers ..4.2.7 Registration Roller, Hopping Roller, Sensor Plates ..4.2.8 MCNT Board, Power Supply Unit, Contact Assembly, Transformer 5 Adjustments 5.1 Setting of LED Print Head Drive Time 5.2 Power Voltage (Confirmation) 5.3 Contact Image Sensor Output Check (Confirmation) 6 Cleaning and Maintenance...
Page 7 Table of Contents Page 7.13 High-speed Modem Test 7.14 MF Send Test 7.15 Tone (TEL/FAX) Send Test 7.16 No Acoustic Line Monitor 7.17 Power Supply Unit 7.18 No Document Feeding 7.19 Multiple Document Feeding 7.20 Document Skew 7.21 Document Jam 7.22 Printer Unit ..7.22.2 Troubleshooting Flow Chart of Printer Unit ..Troubleshooting flow chart 1:...
Page 8 Table of Contents Page PREFACE 9.1 Outline 9.2 Mechanism Description 9.3 PARTS REPLACEMENT ..9.3.2 Parts Layout ..9.3.3 Parts Replacement Methods ..9.3.3.1. Pulse Motor (Hopping) ..9.3.3.2. TQSB-PCB 9.4 Troubleshooting 9.5 Connection Diagram ..9.5.2 PCB Layout 9.6 Parts List...
Page 9: About This Manual
Party Line Service is subject to state tariffs. Contact your state Public Utility Commission, Public Service Commission, or Corporate Commission for information. 9. This equipment is hearing-aid compatible. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 10: Fcc Telephone Consumer Protection Act
• Date and time • Name and telephone number which identify the source of your fax transmission Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 11: Canadian Department Of Communications Requirements For
Page: 4 Service Guide OF1050/2350/2450 Chapter 0 About This Manual Canadian Department of Communications Requirements for End Users The Canadian Department of Communications label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements.
Page 13: Federal Communications Commission Radio Frequency
Changes or modifications not expressly approved by Okidata may void your authority to operate this device. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 14: Canadian Department Of Communications Radio Interference
Cet appareil est conforme aux normes Class A dinterference radio tel que specifier par le Ministere Canadien des Communications dans les Reglements DInterference Radio. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 15: General Information
Page: 7 Service Guide OF1050/2350/2450 Chapter 1 General Information 1.1 General Performance 1.1.01 Style Desktop 1.1.02 Applicable lines General switched telephone network (GSTN) Private branch exchange (PBX) 1.1.03 Compatibility ITU-T Group 3 facsimile transceiver 1.1.04 Document width Max. 8.5" (216 mm) (NA Letter) Min.
Page 16 Note: This is Phase C time at STD/Resolution and 14400 bps for 6 sec. and 9600 bps for 9 sec. in MMR code transmission. 1.1.22 Protocol ITU-T Rec. T.30 OKI special protocols: High-speed protocol 1.1.23 Error correction mode (ECM) 1.1.24 Communication mode...
Page 17 Two rows of 20 characters for operation guidance, check and various kinds of information 1.1.27 Power source Nominal input voltage 120 VAC Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 18: General User's Function
Page: 8 Service Guide OF1050/2350/2450 Chapter 1 General Information 1.2 General User's Function 1.2.01 Transmit mode Automatic transmit mode Manual transmit mode 1.2.02 Receive mode Automatic receive mode Manual receive mode TEL/FAX automatic switchover mode TAD mode PC-I/F mode (option) 1.2.03 Dual access (OKIFAX 2350/2450)
Page 19 OKIFAX 2350: 8 mail boxes OKIFAX 2450: 16 mail boxes 1.2.19 PHOTO mode OKIFAX 1050: 16 scale gradations OKIFAX 2350: 32 scale gradations OKIFAX 2450: 64 scale gradations 1.2.20 G3 sequential broadcast (Memory) Broadcast mode OKIFAX 1050 (55 stations at maximum) OKIFAX 2350 (84 stations at maximum) OKIFAX 2450 (134 stations at maximum) Delayed broadcast mode...
Page 20 Transmission error report Confidential reception report (Personal mailbox RX report) Configuration report Telephone directory Power off report Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 21: General Maintenance Functions
1.3.10 Remote diagnosis (using RMCS software) 1.3.11 System reset 1.3.12 Service default report (Technical function settings for service engineer) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 22: General Appearance
Figure 1.4.3 shows the control panel of the OKIFAX 2450. Figure 1.4.1 General Appearance of OKIFAX 1050/2350/2450 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 23 Page: 11 Service Guide OF1050/2350/2450 Chapter 1 General Information Figure 1.4.2 OKIFAX 1050 Control Panel Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 24 Page: 12 Service Guide OF1050/2350/2450 Chapter 1 General Information Figure 1.4.3 OKIFAX 2350 Control Panel Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 25 Page: 13 Service Guide OF1050/2350/2450 Chapter 1 General Information Figure 1.4.4 OKIFAX 2450 Control Panel Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 26: Basic Performance Specifications
Page: 14 Service Guide OF1050/2350/2450 Chapter 1 General Information 1.5 Basic Performance Specifications Table 1.5.1 shows basic performance specifications. Note: Technical function setting Function program setting One-touch key pressed F: SELECT FUNCTION key pressed Table 1.5.1 (1/10) Basic Performance Specifications No.
Page 27 Document Communication Effective reading Copy size width Mode/Paper width width ISO A4 (210 mm) G3/A4 8.2" (208 mm) [INT'L/FTZ] NA letter (216 mm) G3/A4 8.46" (215 mm) Letter [US/CANADA] NA legal (216 mm) G3/A4 8.46" (215 mm) Legal [US/CANADA] Automatic document feeder (ADF) Up to 11.7"...
Page 28 3) Weight, thickness and condition: Same as above Note: One single sheet only should be loaded on the manual loading feeder at a time. For best results use OKI DATA recommended papers 1) Xerox 4200 (20 - lb/base weight paper) 2) L-type paper for photo-printers...
Page 29 deviations (+ or 2 mm) of recording paper.feed direction 1) Printable area LETTERSIZ ISO A4 SIZE NA LEGAL SIZE inch inch inch 279.4 11.7 355.6 215.9 215.9 10.76 273.3 11.46 13.76 349.5 8.18 8.11 8.18 0.12 0.12 0.12 0.12 0.12 0.12 0.16 3.95...
Page 30 Image scanning method NA Letter size (1728-bit) contact image sensor Contrast control 1) Automatic background sensing A continuous document background of 0.3 OD (optical density) or less will be transmitted as white. 2) The LIGHT and DARK contrasts will automatically be adjusted to improve image quality.
Page 31 Modified modified READ (MMR) MODEM 1) High-speed MODEM a) ITU-T Rec. V.29 (9600/7200 bps) b) ITU-T Rec. V.27 ter (4800/2400 bps) c) ITU-T Rec. V.17 (14400/12000/9600/7200 bps); OKIFAX 2450, OKIFAX 2350 (option) d) ITU-T Rec. V.33 (14400/12000 bps); OKIFAX 2450, OKIFAX 2350 (option) 2) Low-speed MODEM ITU-T Rec.
Page 32 9 sec./ITU-T No. 1 sample document (OKIFAX 1050/2350) Note: This is Phase C time at 3.85 line/mm and 14400 bps for 6 sec. and 9600 bps for 9 sec. in MMR code transmission. Error correction ITU-T Error correction mode (ECM) OKIDATA ITU-T ECM Communication mode Half-duplex...
Page 33 Note: OKIFAX 1050/2350 does not back up the message received in memory for the power failure. Telephone handset General telephone function is available while the (option) power is on. Overheat protection The heat of the fuser unit is controlled within predetermined temperature range by the thermistor.
Page 34 8) One touch sheet x 1 (Already installed) 9) User's guide x 1 Temperature and Humidity Conditions Figure 1.5.1 Ambient Condition Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 35: Reports And Lists
Page: 15 Service Guide OF1050/2350/2450 Chapter 1 General Information 1.6 Reports and Lists Table 1.6.1 (1/23) Reports and Lists Specifications Table 1.6.1 shows Reports and Lists Specifications. Note : F +OT: Press FUNCTION and One-touch key FP: Function program setting...
Page 36 Transmitting subscriber identification (TSI printing Received TSI can be printed at the top of the received page. * TF + 10 (To enable or disable this function) * TF + 09 Local date and time printing (OFF/ONCE/ALL pages) TSI Printing and Local Date and Time Printing Format: (Example) Cancel report The fax can automatically print out a power-off report when the power off condition occurs.
Page 37 Activity report The fax can print out an activity report manually, or automatically when 30 communications are recorded. * REPORT PRINTOUT+1(Manual printout) * TF + 34 (Automatic printout, Default is OFF) Message Confirmation Report Format: (Example)
Page 38 (1) Title of the report (2) Date and time when the report was printed (3) Sender ID (4) Total TX and RX time (5) Date of transmission or reception (6) Time when the communication started (7) Time span of the fax communication. (8) Identification of the remote station Personal ID/Location ID/TSI/CSI/Dial number or space (9) Communication mode:...
Page 39 The memory cancellation operation removes the message from the active memory files. (12) Service code Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 40 Page: 16 Service Guide OF1050/2350/2450 Chapter 1 General Information Item Specifications Message confirmation report The fax can print out a message confirmation report manually or automatically depending on user set-up. Note 1: When COPY key is pressed immediately after a single location...
Page 41 (1) Title of the report (2) Date and time when the report was printed (3) Sender ID (4) Date of transmission or reception (5) Length of time for which the fax was connected to the line (6) Identification of the remote station Personal ID/Location ID/TSI/CSI/Dial number (7) Communication mode Reference to ACTIVITY REPORT...
Page 42 Broadcast confirmation report The fax can print out a broadcast confirmation report manually or automatically, depending on user set-up. * COPY key (Manual printout): Pressed immediately after a broadcast, will enable the manual printing of a broadcast confirmation report. + REPORT PRINTOUT + 2 (Manual printout) * FP +02 (To enable or disable automatic printing) Broadcast Confirmation Report Format: (Example)
Page 43 Telephone directory This directory is printed manually. (REPORT PRINTING +3) See following sections for examples. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 44: Telephone Directory For Okifax 1050 (1/2): (Example)
Page: 17 Service Guide OF1050/2350/2450 Chapter 1 General Information Telephone Directory for OKIFAX 1050 (1/2): (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 45: Telephone Directory For Okifax 1050 (2/2): (Example)
Page: 18 Service Guide OF1050/2350/2450 Chapter 1 General Information Telephone Directory for OKIFAX 1050 (2/2): (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 46: Telephone Directory For Okifax 2350 (1/4): (Example)
Page: 19 Service Guide OF1050/2350/2450 Chapter 1 General Information Telephone Directory for OKIFAX 2350 (1/4): (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 47: Telephone Directory For Okifax 2350 (2/4): (Example)
Page: 20 Service Guide OF1050/2350/2450 Chapter 1 General Information Telephone Directory for OKIFAX 2350 (2/4): (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 48: Telephone Directory For Okifax 2350 (3/4): (Example)
Page: 21 Service Guide OF1050/2350/2450 Chapter 1 General Information Telephone Directory for OKIFAX 2350 (3/4): (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 49: Telephone Directory For Okifax 2350 (4/4): (Example)
Page: 22 Service Guide OF1050/2350/2450 Chapter 1 General Information Telephone Directory for OKIFAX 2350 (4/4): (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 50: Telephone Directory For Okifax 2450 (1/6): (Example)
Page: 23 Service Guide OF1050/2350/2450 Chapter 1 General Information Telephone Directory for OKIFAX 2450 (1/6): (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business...
Page 51 Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 52: Telephone Directory For Okifax 2450 (2/6): (Example)
Page: 24 Service Guide OF1050/2350/2450 Chapter 1 General Information Telephone Directory for OKIFAX 2450 (2/6): (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 53: Telephone Directory For Okifax 2450 (3/6): (Example)
Page: 25 Service Guide OF1050/2350/2450 Chapter 1 General Information Telephone Directory for OKIFAX 2450 (3/6): (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 54: Telephone Directory For Okifax 2450 (4/6): (Example)
Page: 26 Service Guide OF1050/2350/2450 Chapter 1 General Information Telephone Directory for OKIFAX 2450 (4/6): (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 55: Telephone Directory For Okifax 2450 (5/6): (Example)
Page: 27 Service Guide OF1050/2350/2450 Chapter 1 General Information Telephone Directory for OKIFAX 2450 (5/6): (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 56: Telephone Directory For Okifax 2450 (6/6): (Example)
Page: 28 Service Guide OF1050/2350/2450 Chapter 1 General Information Telephone Directory for OKIFAX 2450 (6/6): (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 57 Page: 29 Service Guide OF1050/2350/2450 Chapter 1 General Information Item Specifications Configuration report This report is printed manually. (REPORT PRINTING +4) Configuration Report Format: Configuration Report: Service bit=OFF *1: When second paper cassette (is installed and paper size is programmed, 2'nd paper size will appear in No.
Page 58 *1: When second paper cassette is installed and paper size is programmed, 2nd paper size will appear in No.11. *2: For OKIFAX 2450 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 59: Setup Information
Page: 30 Service Guide OF1050/2350/2450 Chapter 2 Setup Information A. Setup Information 2.1 General The following flowchart outlines the installation procedure.
Page 61: Site Selection
Page: 31 Service Guide OF1050/2350/2450 Chapter 2 Setup Information 2.2 Site Selection INSTALLATION Precautions for Installation 2.2.01 Fluctuation in line voltage 120VAC (102V to 127V) 2.2.02 Room temperature 50 to 90°F (10 to 32°C) 2.2.03 Humidity 20 to 80% RH 2.2.04 Operating environment...
Page 62 Note: 1 This space is necessary for handling the handset. (option) (page 2-3) 2 This space is necessary for removing the recording paper cassette. 3 This space is necessary for installing the document stacker and to allow space for the fan exhaust. 2.2.07 Levelness of installation surface 1 degree max.
Page 63 A location with an atmosphere of acid gas, or steam etc., A location exposed to quick temperature changes Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 64: Unpacking
Page: 32 Service Guide OF1050/2350/2450 Chapter 2 Setup Information 2.3 Unpacking Procedure 2.3.01 Remove tape on the top of the carton box and open its cover. .Figure 2.3.1 Unpacking Procedure (1) 2.3.02 Take out the accessory box from the carton box. (See Figure 2.3.1 below)
Page 65 Figure 2.3.1 Unpacking Procedure (2)
Page 66 Figure 2.3.2 Unpacking Procedure (3) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 67: Check Of Contents
I/D unit Already installed. Toner cartridge Document stacker Line cord 7 User's guide 1 vol. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 68: Installation Of Attachments
2.5 Installation of Attachments 2.5.01 Items Image Drum (ID) Unit (already installed) Toner cartridge Recording paper Document stacker Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 69: Toner Cartridge
Page: 35 Service Guide OF1050/2350/2450 Chapter 2 Setup Information 2.5.02 Procedure Toner cartridge Peel off the fixed tape attached on the copy stacker. Open the document table and copy stacker. .Figure 2.5.1 Toner Cartridge Installation (1) Take the cushion out of the ID unit...
Page 70 Figure 2.5.2 Toner Cartridge Installation (2) Installation of Attachments - Continued Take out the toner cartridge from the damp proof bag, shake it five or six times as shown in the illustration to eliminate the toner deflection, and peel off the seal gently. Figure 2.5.3 Toner Cartridge Installation (3) Ensure that the plastic tab on the right-hand side of the toner cartridge recess lines up with the groove on the toner cartridge.
Page 71 Do not use hot water since it makes the toner stick. Close the copy stacker so that both latches are locked completely. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 72 Page: 36 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Recording paper Note: About 250 sheets of the new paper can be set in the recording paper cassette. Remove the paper cassette from the facsimile by pulling it straight out. Figure 2.5.6 Recording Paper Cassette Installation (1) Sheets must not exceed the paper full marker of the new paper limit indication.
Page 73 Figure 2.5.7 Recording Paper Cassette Installation (2) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 74 Document stacker Hang the document stacker onto the stacker pins. Figure 2.5.8 Document Stacker Installation Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 75 Page: 38 Service Guide OF1050/2350/2450 Chapter 2 Setup Information 2.6 AC Cord Connection The power supply is provided as follows. Nominal input voltage 120VAC (Voltage range 102 to 127VAC) Check whether the AC voltage of your input is within the above-mentioned voltage range and if so, check that the power switch is turned OFF.
Page 77 Note: For US version, telephone cable can be inserted into either upper side or lower side of telephone terminal. Figure 2.7.1 Telephone and Line Connections Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 78 TONER FROM THE UNIT AND SHIP SEPARATELY! Failure to do this will result in damage to the machine. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 79 Page: 41 Service Guide OF1050/2350/2450 Chapter 2 Setup Information B. Programming and Initial Settings 2.9 Initial Settings 2.9.1 General Procedure of Key Operation Figure 2.9.1 shows the general procedure of key operation.
Page 83 Page: 42 Service Guide OF1050/2350/2450 Chapter 2 Setup Information 2.9.2 Technical Functions This section explains setting items generally conducted by service personnel, not by users. Table 2.9.1 shows the initial setting items and their purposes. (The default setting is different by the individual countries.) Each item can be accessed by entering the corresponding service number on...
Page 84 TF No. No. Item Specifications Default _________________________________________________________________________________ Service bit Switching serviceman/user operation. ON (1): Service personnel's features are available. OFF (0): Service personnel's features are not avail- able. To enable or disable the following functions: • Drum (Total) and toner counter clear •...
Page 85 ON (1): Enable OFF (0): Disable Long document SCAN Enables the transmission of long-size document OFF (more than 14" (356 mm). ON (1): Unlimited OFF (0): 14" (356 mm.) Cable equalizer Determining the adequate equalizing level of the cable. EQL1, EQL2, EQL3 and without EQL are selectable.
Page 86 from month/day/year to day/month/year or vice versa. MDY=0, DMY=1 Time and date print Enables or disables the function of printing local date and time at the top of the received page. Note: User programming of this function is an FCC requirement. Time and date print Setting ONCE...
Page 87 OFF (0): The messages are printed in the print mode. But print quality is not guaranteed. TAD mode Allows the OKIFAX to share a telephone TYP2 (For external telephone line with an answering device. answering device). TAD mode is of two types (TYPE1/TYPE2). TAD mode Setting TYPE1...
Page 88 HOOK key is pressed. TEL/FAX switching Enables or disables the TEL/FAX automatic switching. If this function is disabled, TEL/FAX mode will not appear as a receive option. ON (1): Enable OFF (0): Disable (Related item: FP08, TF17-18) Modem attenuator Adjusts the attenuation (dB) for the message 10 dB send signal power level.
Page 89 T/F tone attenuator Adjusts the attenuation (dB) for the 10 dB tone send signal (for TEL/FAX SW) for TEL/FAX switching. Adjusting value is 0 to 15 dB in one dB steps. Bit 17 Bit 18 Bit 17 Bit 18 T.F. Item Specifications Default...
Page 90 MF attenuator Adjusts the attenuation (dB) for the send MF 6 dB tone power level. Adjusting value is 0 to 15 dB in one dB Bit 19 Bit 20 Bit 19 Bit 20 T.F. Item Specifications Default Ring duration Selects the minimum ring detection time to detection time meet country's requirements.
Page 91 12 x 10 ms = 120 ms T.F. Item Specifications Default CML timing Selects the time from end of ring to CML-ON. Adjusting (MS) time is 100 MS to 1900 MS in 100 MS steps. For example: (300 ms) Bit 23 Bit 24 03 x 100 ms = 300 ms T.F.
Page 92 Strobe for LED Setting of LED print head strobe signal. 0110 head Note 1: When the rank marking of the new re-placed LED print head (new part) is same as that of the old used LED print head (old part), you do not always have to set the LED print head strobe signal.
Page 93 144 ~ 161 ~ 181 ~ 203 ~ 228 ~ 257 ~ 288 ~ T.F. Item Specifications Default MH only Switches the function of limiting image compres-sion only to the MH codes. ON (1): Coding scheme is MH only. When the receiving image data is affected by noise on the telephone line.
Page 94 Reduction from LEGAL to LETTER is avail-able only when Legal size is selected by this function. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 95 1: The predetermined time is selectable between 20 or 35 sec. (Function program No. 08) 2: No ringing signal is sent to the external telephone handset. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 96 Note 3: Choice of message sending level. The level is selectable from 0 to 15 dB in one dB step. (Technical function No. 17, 18) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 97 Page: 45 Service Guide OF1050/2350/2450 Chapter 2 Setup Information TEL/FAX mode flow chart Notes: *1: Ring Back Tone 1 sec. ON, 3.2 sec. OFF *2: When you want to talk by phone, pick up handset.
Page 98 *4: If the fax does not detect CNG signal during working of TEL/FAX mode, LCD display indicates "LIFT HANDSET". Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 99 *1 To enable the manual TX mode. Load document ---> Press START button ---> Manual transmission Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 100 If the fax does not detect signal during working of TAD, the machine will go to standby mode. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 101 The display shows: Reference: See Figure 2.9.1 in the next section for the general operation flow. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 102 Chapter 2 Setup Information 2.9.3.02 Technical functions Operations: The Display Shows: Figure 2.9.1 General Operation Flow Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 103 Page: 50 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.2 (1/3) Technical Functions Name of Function The Display Shows Service bit Setting: 0 (OFF), 1 (ON) Line monitor control Setting: 0 (OFF), 1 (ON) Error report (MCF) MCF: Message Confirmation...
Page 104 Time and date print Setting: 0 (OFF), 1 (ONCE), 2 (ALL page) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 105 Page: 51 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.2 (2/3) Technical Functions Name of Function The Display Shows TSI print Setting: 0 (OFF), 1 (ON) No toner memory reception Setting: 0 (OFF), 1 (ON) TAD mode (For external telephone...
Page 106 Service Personnel Initial Setting Ring duration detection time Setting: 10 (100ms)~99 (990ms), 10 ms steps Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 107 Page: 52 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.2 (3/3) Technical Functions Name of Function The Display Shows CML timing Setting: 0 (100ms)~19 (1900ms), 100ms steps. T1, timeout value (XTTO value) Setting: 000 (000 sec)~255(255sec) Strobe width for LED head...
Page 108 Head width Setting: 0 (208mm), 1 (216mm) Not used Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 109 S-ON: Effective if the service bit has been set on. FP: Function program setting TF: Technical function setting Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 110 Page: 54 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.3 (1/6) Feature Specifications Item Specifications Auto dial 10 one-touch keys are provided. (OKIFAX 1) One-touch dial 1050) 15 one-touch keys are provided. (OKIFAX 2350) 30 one-touch keys are provided.
Page 111 35 sec.), the fax automatically starts a document receive operation. * FP + 08 (To determine the timer.) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 112 Page: 55 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.3 (2/6) Feature Specifications Item Specifications Automatic redial PTT parameter setting disables or enables this feature, and specifies redial times and redial intervals. * See 2.9.12 for the service bit condition depending on PTT param-eters.
Page 113 (OKIFAX 2350/2450) Example of sheets: Transparency for an overhead projector 11 Manual loading feeder Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 114 Page: 56 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.3 (3/6) Feature Specifications Item Specifications Broadcast Max. 55 (OKIFAX 1050), Max. 84 (OKIFAX (Memory transmission) 2350) and Max. 134 (OKIFAX 2450) remote locations can be specified by the following means: One-touch keys (with or without a group list).
Page 116 For the patterns of dual access refer to the following, Dual Access Combination Table. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 117 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.3 (5/6) Feature Specifications Dual Access Combination Table (1/2) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 118 Page: 59 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.3 (6/6) Feature Specifications Dual Access Combination Table (1/2) Item Specifications Clock adjustment Date and time adjustment...
Page 119 4-digit password code to one of 8 (OKIFAX 1050/2350) or 16 (OKIFAX 2450) mail-box memory segments in the message memory. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 120 Page: 60 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Users Initial Settings One Touch Key Operations...
Page 122 Page: 61 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.4 (1/3) One-touch key Program Settings Item Specifications Delayed transmission (Tx) This function enters a message transmission time(s) and location(s) for execution at a specified time. Broadcast/memory To make a one-time selection of the memory transmission transmis-sion mode.
Page 123 5. Protocol dump report * TF + 01 (Sets to on Service bit) 6. Log. report Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 124 Page: 62 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.4 (2/3) One-touch key Program Settings Item Specifications Counter display (clear) * TF + 01 (Sets to on Service bit) The operation for displaying and clearing the print counters in five ways are as follows: 1.
Page 126 Page: 63 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.4 (3/3) One-touch key Program Settings Item Specifications...
Page 127 User's programs Function program 1. Function program 01: MCF (SINGLE-LOC.) 02: MCF (MULTI-LOC.) 03: SENDER ID 04: MONITOR VOLUME 05: REMOTE DIAGNOSIS 06: CLOSED NETWORK 07: TX MODE DEFAULT 08: T/F TIMER PRG. 09: BUZZER VOLUME 10: 1'ST PAPER SIZE 11: 2'ND PAPER SIZE 12: SELECT LANGUAGE 13: SOFT RINGER SET...
Page 128 5. Password rogram To allow the operator (in this case, a person who wishes to assign a password to mail box) to assign a 4-digit password code to one of 8 for OKIFAX 1050, 8 for OKIFAX 2350 and 16 for OKIFAX 2450 mail-box memory segments in the message memory.
Page 130 Page: 64 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.4 User Function Program Settings Function Program Item Specifications Default Message confirmation Enables or disables the automatic report message confirmation report printing (Single location) after a single location call. ON: Prints the MCF report.
Page 131 Remote diagnosis Enables or disables the remote diagnosis function. The machine can allow remote diagnosis from a service center that is capable. ON: Enables OFF: Disables Closed network The fax compares the last four digits of TSI/CSI received from remote station with fax numbers registered locally for one-touch dial and two-digits autodial.
Page 132 1'st cassette paper size Selects A4, LETTER or LEGAL for this LETTER function. The operator must select the preferable paper size as the machine cannot detect the paper size automatically. 2'nd cassette paper Selects A4, LETTER or LEGAL for this LETTER size (option) function.
Page 134 If you want to set up all or several items starting with 01, then enter 01 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 135 Page: 66 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.5 User's Functions Tap No. Name of Function The Display Shows Message confirmation report (Single location) Message confirmation report (Multiple locations) Sender ID Line monitor volume Remote diagnosis Closed network...
Page 136 Buzzer volume 1'st cassette paper size 2'nd cassette paper size Select language Software ringer set Remote receive Ring response time Memory and feeder selection...
Page 137 One-touch key parameters Note1: RESOLUTION & ORIGINAL of Tx mode default setting can be selected by using key. Note2: When the service bit is set to "off" and the correspond bit of XPARA of national code is set to "off", Ring response is bypassed as follows: Note3: When 2'nd tray is not mounted on OKIFAX 1050/2350/2450, 2'nd paper size is bypassed as follows:...
Page 138 Note2: For OKIFAX 2450, Remote Receive is bypassed as follows: Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 139 Enter 15 using the ten-key pad. Press the key until the setting you want is displayed, then press the key. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 140 To get the "DIAL PARAMETER" message on the display, perform the same operation as listed in Section 2.9.12. (Dial parameters settings). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 141 Press the key. Enter date and time by using the ten-key pad (0 to 9 keys). Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 142 Page: 70 Service Guide OF1050/2350/2450 Chapter 2 Setup Information 2.9.7 Dual Access Operation (for OKIFAX 2350/2450)
Page 144 Page: 71 Service Guide OF1050/2350/2450 Chapter 2 Setup Information 2.9.8 System Data Programming TSI/CSI (Default: Blank) Registration of sender ID (Default: Blank) Registration of telephone number for the call-back message (Default: Blank) Operations: To program system ID data, press the SELECT FUNCTION key once and one-touch key No. 9 in the standby mode.
Page 145 Note: Use the UNIQUE key to input special symbols. Operations: Press the START key. Press the START key.
Page 147 Page: 72 Service Guide OF1050/2350/2450 Chapter 2 Setup Information 2.9.9 One-Touch Key Programming 2.9.9.01 Purpose One-touch keys No. 01 through 10 (OKIFAX 1050), No. 01 through 15 (OKIFAX 2350) or No. 01 through 30 (OKIFAX 2450) allow registration: (Default: Blank) Telephone number (numeral, -, P (Dial Pause), and space) in 32 digits.
Page 149 Page: 73 Service Guide OF1050/2350/2450 Chapter 2 Setup Information 2.9.10 Two-digit Auto Dial Programming 2.9.10.01 Purpose Auto dial No. 01 through 40 (OKIFAX 1050), No. 01 through 64 (OKIFAX 2350) or No. 01 through 99 (OKIFAX 2450) allow registering a telephone number in 32 digits (numeral, -, P (Dial Pause), and space) and ID for the telephone directory function in 15 characters (alphabets, numeral, and symbols).
Page 151 Page: 74 Service Guide OF1050/2350/2450 Chapter 2 Setup Information 2.9.11 Group setting Grouping some one-touch keys and some two-digit auto dial codes to which telephone numbers have been assigned. This group setting makes multiple polling reception and broadcast operation simple.
Page 152 Case 2: Canceling member(s) from a group...
Page 154 Page: 75 Service Guide OF1050/2350/2450 Chapter 2 Setup Information 2.9.12 Dial Parameters Settings 2.9.12.01 Procedure The following shows the case in which the service bit is on. The display shows:...
Page 156 Service Guide OF1050/2350/2450 Chapter 2 Setup Information 2.9.12.02 Procedure Table 2.9.11 Default Settings of Dial Parameters Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 157 Page: 77 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Table 2.9.6 Dial Parameters Settings Item Specifications National code Selecting the following parameters: INT'L, GRB, NOR, SWE, AUS, USA, BEL, HOL, SUI, AUT, ESP, ITA, GRE, GER, FRE Note: Must be set to USA for proper machine operation.
Page 158 (The access code is not dialed automatically.) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 159 To allow the operator (in this case, a person who wishes to assign a password to mail-box) to assign a 4-digit password to one of 8 for OKIFAX 1050, 8 for OKIFAX 2350, 16 for OKIFAX 2450 mail-box memory segments in the message memory. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business...
Page 160 Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 161 This function will force printing of messages received into memory due to a low toner condition. Note: Print quality may be poor under these circumstances. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 162 Messages received in a personal box can be printed out only if the password entered by the operator matches that registered for the box. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 163 Page: 81 Service Guide OF1050/2350/2450 Chapter 2 Setup Information 2.9.15 Off-line Tests 2.9.15.01 Purpose Activate self-diagnosis which includes: Print test CPU-ROM version printing CPU-RAM check FLASH version printing LANGUAGE version printing DEFAULT version printing RAM check RAM check (memory board: optional) PC-I/F version printing (optional)
Page 164 Fig. 2.9.4 Printed Data of Self-diagnosis Print Test (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 165 Make sure that the telephone number of the remote machine is shown on the display. Press the START button. Typical message transmission flow is described in Figure 2.9.5. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 166 The display shows AUTO REC. START. The message is automatically received. Typical message reception flow is described in Figure 2.9.6. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 167 Page: 84 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Fig. 2.9.5 Typical Transmission Flow...
Page 169 Page: 85 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Fig. 2.9.6 Typical Reception Flow Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 170 Chapter 2 Setup Information C. Installation of Optional Units 2.10.01 Items Memory board PC interface board Telephone handset Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 171 Since screws and small parts are easily misplaced, they should temporarily be attached to their original positions. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 172 Page: 88 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Installation of the memory board In the OKIFAX 1050, one of either the MEM or MEM-2 memory board can be mounted on to the connector CN12 of the OKIFAX 1050 MCNT board. However, choose either memory board or PCIU board in order to use this connector (CN12).
Page 173 Note: Fit the fixing hooks an anchor positions on the cassette guide, after that, lift the rear cover slightly and push it to the inside. Tighten the two screws S1 and S2. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 174 Page: 89 Service Guide OF1050/2350/2450 Chapter 2 Setup Information Installation of PCIU (PC interface) board OKIFAX 1050 Remove Rear Cover Remove the rear cover by removing the two screws S1 and S2 . Install PCIU board First, install PCIU board on to the connector CN12 of the OKIFAX 1050 MCNT board, and then tighten the two screws to the separation plate.
Page 175 After having taken out the telephone set, telephone handset and curled cord from the carton box, connect them as show in Fig. C.3.2. After installing the connection cable to the telephone set, extend the connection cable as in Fig. C.3.3.
Page 176 After installing the cradle assembly to the telephone set, fix the screw as in Fig. C.3.4. Install the telephone assembly on the facsimile transceiver unit. In this case, cram the telephone assembly into the position of Fig. C.3.5 by lifting the facsimile transceiver unit slightly. When 2'nd tray is mounted on the facsimile transceiver unit, install the telephone assembly in the position of Fig.
Page 177 Connect the terminal of the other side of the connection cable formed on the rear side of the equipment, like Fig. C.3.6, to the telephone set. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 178 Page: 90 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Section 1: Board Description 3.1 Unit Configuration and Block Diagram 3.1.01 The unit configuration of the OKIFAX 1050 is as follows: Figure 3.1.1 Unit Configuration of OKIFAX 1050 (1) Main control board (MCNT) (R054/R050) (2) Network control unit (NCU) (3) PC interface board (P050): option ...
Page 179 Because there is one expansion connector, however, both boards cannot be installed at the same time. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 180 Page: 91 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.1.02 The unit configuration of the OKIFAX 2350/2450 is as follows: Figure 3.1.2 Unit Configuration of OKIFAX 2350/2450 (1) Main control board (R175 for OKIFAX 2350/R175-2 for OKIFAX 2450) (2) Modem board (MODEM)
Page 181 (8) Optional Telephone (boards) Telephone interface board (TEL-U) Hook board (HOOK) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 182 3.2 Overall Dimension and Mechanical Structure of OKIFAX 1050 Figure 3.2. Overall Dimension and Mechanical Structure Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 183 3.3 Overall Dimension and Mechanical Structure of OKIFAX 2350/2450 Figure 3.3 Overall Dimension and Mechanical Structure Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 184 Power supply unit POW UNIT: (FXVE, FXVH) Printer unit Figure 3.4.2 shows the block diagram of OKIFAX 2350/2450 facsimile transceiver. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 185 Page: 95 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.5 Function of Each Board The section describes the principal functions of the individual units of the OKIFAX 1050/2350/2450 electrical sections. Figure 3.5.1 and 3.5.2 shows the pertinent block diagram.
Page 186 Generation of single-frequency signals for tonal signals Detection of single-frequency tonal signals Generation of Dual Time Multiple-Frequency signals for tone dialing Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 187 Control of LEDs on operation panel Control of LCD on operation panel LED: Light-emitting diode LCD: Liquid crystal display Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 188 Input of receive data and receive signals from telephone line Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 189 Generation of medium voltages +300V, -300V, +400V, -450V and 0V Generation of high voltages -1.35 kV, -0.75 kV and +1 kV Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 190 3.5.05 MEMO (memory) board (Option) P-SRAM Memory storage for ECM operations, memory broadcast, delayed broadcast, etc. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 191 The P050 board is used as an interface between the OKIFAX units and PC compatible computer Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 192 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.5.07 HOOK board (Optional handset) Hook switch circuit Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 193 Chapter 3 Board Description/Printer Operation 3.5.08 TELU board (Option): For US and Canada Speech network circuit Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 194 Motor control Interfaces with the Main Control Board to provide second paper cassette control R054 Package Layout (OKIFAX 1050) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 195 Page: 104 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Meaning of abbreviations used in Block Diagram A/D: Analog-to-digital converter AMP: Amplifier BATT: Battery CNi: Connector number i CPU: Central processing unit D-MOTOR: Drum motor DRV: Motor drive DRAM: Dynamic random-access memory...
Page 196 Figure 3.5.1 OKIFAX 1050 Block Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 197 Page: 105 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Figure 3.5.2 OKIFAX 2350/2450 Block Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 198 Page: 106 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.6 Explanation of Signal Flow for OKIFAX 1050/2350/2450 Note: Regarding the difference of the signal flow between OKIFAX 1050 and OKIFAX 2350/2450, since one-line scanning processing speed of OKIFAX 2350/2450 is faster in comparison with OKIFAX 1050, to the circuit diagram of OKIFAX 2350/2450 has added the EXSEED (image processing LSI) and SRAM (dark/light level correction data).
Page 199 The picture data for one-line is transferred from DRAM/P-SRAM to CPU. The CPU performs the picture data processing (encode) for this picture data (FILLER, fill bits are inserted) and again stored into the DRAM/P-SRAM. The stored encoded data is output from DRAM/P-SRAM to the MODEM under the control of CPU.
Page 200 IOGA and transferred to the LED print head for printing as HDATA. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 201 Page: 107 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.7 Signal Flow by Mode of operation (OKIFAX 1050) 3.7.01 Copy picture signal Figure 3.7.1 shows the picture signal route in local copy mode. 3.7.02 300 bps send signal Figure 3.7.2 shows the 300 bps send protocol signal route.
Page 203 Page: 108 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Okifax 1050 300 bps Send Signal Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 204 Page: 109 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Okifax 1050 300 bps Receive Signal Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 205 Page: 110 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Okifax 1050 G3 Send Picture Signal Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 206 Page: 111 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Okifax 1050 G3 Receive Picture Signal Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 207 Page: 112 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Okifax 1050 Report Print Signal Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 208 3.8.05 G3 receive picture signal Figure 3.8.5 shows the G3 receive picture signal route. 3.8.06 Report print signal Figure 3.8.6 shows the report print signal route. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business...
Page 209 Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 210 Page: 114 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Okifax 2350/2450 300 bps Send Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 211 Page: 115 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Okifax 2350/2450 300 bps Receive Signal Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 212 Page: 116 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Okifax 2350/2450 G3 Send Picture Signal Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 213 Page: 117 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Okifax 2350/2450 G3 Receive Picture Signal Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 214 Page: 118 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Okifax 2350/2450 Report Print Signal Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 215 Page: 119 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.9 Power Supply Unit 3.9.01 FXVE (for 120 V)/FXVH (for 230 V) Circuit Diagram (1/2) IMPORTANT: Okidata recommends that maintenance of the Power supply unit (FXVE/FXVH board) be performed by replacement of a unit, not by replacement of components.
Page 216 CN3-11, +5 V 1.8 A 0.2 to 4.5 5 V ± 4% mVP-P mVP-P CN3-28 CN3-4, 32 +30 V 0.95 A 0 to 0.95 A 4.0 VP-P CN3-30 +8 V 0.1 A 0 to 0.1 A 6.5 to 15 V 3.0 VP-P 3.6 VP-P CN3-28...
Page 218 Page: 120 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation General functional description Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 219 Page: 121 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.9.02 Power Supply Unit (FXVE/FXVH) General functional description 1. General The power supply unit consists mainly of an AC transformer and a power PCB (FXVE board for AC120V/FXVH board for AC230V). A block diagram of the power supply unit is shown in Figure A3.XX.
Page 220 -1.35 kV Voltage applied to charging roller. +400 V Voltage applied to cleaning roller. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 221 Page: 122 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.9.03 FXVE (for 120 V)/FXVH (for 230 V) Circuit Diagram (2/2) This circuit consists of power control IC2, photo-sensors and high voltage generation unit. DANGER: 3.9.03 FXVE (for 120 V)/FXVH (for 230 V) Circuit Diagram (2/2) This circuit consists of power control IC2, photo-sensors and high voltage generation unit.
Page 223 Page: 123 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.10 NCU Board Explanation of NCU circuit diagram This section briefly describes functional blocks of the NCU circuit diagram. NCUU circuit diagram Receiving Sensitivity The receiving sensitivity is determined by the operational amplifier IC2.
Page 224 NCUU Package Layout (OKIFAX 1050/2350/2450) Figure 3.10.1 Block Diagram of NCUU...
Page 226 Block diagram Figure 3.11.1 Block Diagram of TEL-U Figure 3.11.1 Block Diagram of TEL-U Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 227 Page: 125 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Block Diagram of TEL-U (option) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 228 Page: 126 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Relationship between NCUU and TEL-U Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 229 Page: 127 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.12 MEMO (memory) Circuit Diagram (option) The optional memory board (MEM/MEM-2/MEM-3), is used for expanding the OKIFAX unit's Image (picture) memory.. Block diagram Figure 3.12.1 shows a related signal of memory board.
Page 230 Note: No. of sheets are counted provided that ITU-T No.1 sample document is used. No. of sheets are typical value. Expanded Memory (Optional) OKIFAX 1050/2350/2450 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 231 Page: 128 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.13 P050 (PC interface unit) Circuit Diagram (option) P050 board with RS232C (25 pin) is used as an interface between a PC compatible computer and OKIFAX 1050, 2350 or 2450. The OKIFAX connects to a serial port of the PC using an RS-232D cable (supplied with the optional PC Interface Kit).
Page 232 Figure 3.13.1 Block Diagram of P050 (PC interface unit) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 233 Page: 129 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.14 TQSB (Second tray) Circuit Diagram: option Block diagram This board is installed as the optional board for OKIFAX 2350/2450. Figure 3.14.1 shows a block diagram of the second tray (option).
Page 235 Page: 130 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Section 2: Print Operation 3.15 Mechanical Components 3.15.01 EP drum cartridge The EP (image) cartridge consists of an EP (image) drum, a charger, and a developer. The cartridge forms a toner image on the drum, using an electrostatic latent image formed by the LED print head.
Page 236 Electrographic Process Flow Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 237 Page: 131 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation Layout of Print Station Components Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 238 Page: 132 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.16 Process Operations 3.16.01 Hopping and feeding Hopping and feeding are affected by the registration stepper motor in the mechanism shown below. Turning the registration motor in the "a" direction drives the hopping roller. Turning the registration motor in the "b"...
Page 239 The paper is further advanced in synchrony with the print data. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 240 (-1.35 KVDC) applied from the Power Supply Unit exceeds a threshold value, charging begins. The applied voltage is proportional to charge potential with off set of approx. -550V. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 241 Page: 134 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.16.03 Exposure Light emitted from the LED head irradiates the EP (image) drum surface with negative charges. The surface potential of the irradiated part of the EP drum drops, thereby forming an electrostatic latent image associated with the image signal.
Page 243 Page: 135 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.16.4 Developing Toner is attracted to the electrostatic latent image on the EP (image) drum surface to convert it into a visible toner image. Developing takes place at the contact between the EP (image) drum and the devel-oping roller.
Page 245 EP (image) drum surface is transferred to the upper side of the paper by the positive charge on the lower side of the paper. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 246 The back-up roller is held under a pressure of 2.5 kg by the pressure spring at each side. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 247 After the end of the transfer, residual toner on the EP (image) drum is attracted to the cleaning roller temporarily by static electricity to clean the EP (image) drum surface. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 248 +1000 V +1000 V -750 V CB (cleaning) +400 V +400 V -1350 V -1350 V Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 249 3 : Developing 4 : Transfer 5 : Fusing 6 : Cleaning Figure 3.17.1 Actual EP Process Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 250 3. The alarm serves as a warning only and the printing operation is performed. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 251 Page: 142 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.19 Major Trouble Errors 3.19.01 Fuser Error The fuser error indicates an error in thermister on heater. In case the fuser error occurs at the time of printing, the heater is turned off immediately, but the printing continues of that page. However, if the error occurs before the write sensor is turned on, the motors stop.
Page 252 • Operation during toner low state When the stirring bar reaches the maximum height, since there is no resistance provided by the toner on the other side, it falls to the minimum height due to its own weight. Because of this, the time interval during which it is in encounter with the magnet of the sensor lever becomes long.
Page 253 0.31 ~ 2.00 sec. OKIFAX 1050 8 ppm 3.2 sec. 0.16 ~ 1.00 sec. OKIFAX 2350/2450 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 255 (MCNT-150) to notify it of the OFF state of the microswitch. The MCNT-150 executes the cover open routine. The operation panel displays the message COVER OPEN. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 256 Page: 145 Service Guide OF1050/2350/2450 Chapter 3 Board Description/Printer Operation 3.21.02. Sensors and switch control Six types of sensors are used in the printer as listed below. All of their output are processed by the Main Control (MCNT) board. Inlet sensor 1...
Page 257 SW-2 Cover open switch Detects whether the cover of the printer section is open or not. (Interlock for high voltage power supply) 0: Cover is open, 1: Cover is closed Figuree 3.21.1 Sensor Location (Top View)
Page 258 Figure 3.21.2 Detail of Sensor/Lever Paper Inlet Jam This jam occurs when either of the following conditions occur. When the printer is powered ON, paper is at inlet sensor 1. After the hopping operation is attempted three times, the leading edge of the paper does NOT reach inlet sensor 1.
Page 259 Figure 3.21.1 Paper Inlet Jam Paper Feed Jam This jam occurs when either of the following conditions occur. The paper does not pass over the paper sensor within a pre-determined period of time. The leading part of the paper does not reach the outlet sensor within a pre-determined period of time after the paper has passed over the paper sensor.
Page 260 Figure 3.21.2 Paper Feed Jam Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 261 8. Do not place printed circuit boards directly on the equipment or on the floor. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 262 Table 4.1.1 shows the tools required for the replacement of parts such as circuit boards and mechanical units. Table 4.1.1 Tools Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 263 4.2 How to Disassemble and Reassemble This section explains how to disassemble and reassemble the fax. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 264 Page: 149 Service Guide OF1050/2350/2450 Chapter 4 Mechanical Disassembly and Reassembly 4.2.1 LED Print Head (1) Disassembly procedure a) Open the Document Table assembly. b) Open the Stacker Cover by pressing the latches inward. c) Disconnect the flat cable from the PC connector.
Page 265 After replacing the LED print head, set drive time of the print head using the adjustment procedure in Chapter 5. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 266 Page: 150 Service Guide OF1050/2350/2450 Chapter 4 Mechanical Disassembly and Reassembly 4.2.2 Image Drum, Rear Cover, NCU Cover, Main Cover, Separation Plate, NCU Board, Modem Board (1) Disassembly procedure 1) Image Drum, Rear Cover, NCU Cover, Main Cover a) Open the Document Hopper assembly.
Page 267 e) Remove the Rear Cover by remov-ing two screws (2). f) Remove the NCU Cover by remov-ing one screw (3). g) First, lift the Main Cover from the front side. Then, remove the Main Cover by pushing it toward the rear to dislodge it from the nails at both sides on the rear side.
Page 268 2) Separation Plate a) Remove the Separation Plate by removing two screws 4 . 3) NCU Board, MODEM Board a) Remove the NCU Board by removing two screws 5 . Lift board from its connector. b) Remove the MODEM Board by removing one screw 6 . Lift board from its connector. Note: OKIFAX 1050: The modem is part of the MCNT PCB and is not removable.
Page 269 (2) Reassembly procedure Reverse the disassembly procedures. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 270 Page: 151 Service Guide OF1050/2350/2450 Chapter 4 Mechanical Disassembly and Reassembly 4.2.3 Control Panel Assembly, Paper Guide (U) Assembly. (1) Disassembly procedure 1) Control Panel Assembly and Paper Guide (U) Assembly First, carry out the disassembly procedure up to the point of the 4.2.2 (Main Cover, NCU Cover, Rear Covers, Separation Plate, NCU Board, and Modem).
Page 271 2) Paper guide (U) Assembly a) Separation Rubber a. The Separation Rubber can be removed from the Paper Guide (U) Assembly by lifting it out and away from its mounting tabs. b) Feed Roller a. Remove the ground cables by removing two screws (5). b.
Page 272 Note: Be careful as not to break the shaft of the Exit Roller when removing. (2) Reassembly procedure Reverse the disassembly procedures. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 273 Page: 152 Service Guide OF1050/2350/2450 Chapter 4 Mechanical Disassembly and Reassembly 4.2.4 Sub-roller, ADF Roller Assembly, Pinch Roller, Contact Image Sensor, Document Detectors (PC1 and PC2). (1) Disassembly procedure 1) Scanner Unit First, carry out the disassembly pro-cedure up to the point of the 4.2.2 (Rear Cover and Main Cover) and 4.2.3...
Page 274 3) Scanner Frame a) Remove the Scanner Frame by removing the three screws (3). 4) Sub-roller, ADF roller assembly, Pinch Roller, Contact Image Sensor Turn the Scanner Frame Assembly upside down and perform the disassembly procedure. a) Remove the Bottom Plate by removing the three screws (4). b) Remove the sub-roller from the Scanner Frame.
Page 275 Plate by carefully pressing the latch with a flat screwdrivers. (2) Reassembly procedure Reverse the disassembly procedure. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 276 Page: 153 Service Guide OF1050/2350/2450 Chapter 4 Mechanical Disassembly and Reassembly 4.2.5 Registration Stepper Motor, Main Stepper Motor, release Guide Assembly, Eject Roller Assembly, Manual Guide Assembly (only for OKIFAX 2350/2450), Stack Cover, Fusing Unit (1) Disassembly procedure First, carry out the disassembly procedure up to the point of the Scanner Unit Assembly removal (Refer to Sub-section 4.2.4...
Page 277 2) Eject Roller Assembly (1) a) Using a flatblade screwdriver, press the latch (2) inward and hold, while lifting the eject roller assembly up and out. 4) Stacker Cover a) Open the copy stacker by pushing the buttons. b) Disconnect the flat cable from the PC connector. Remove the LED head while spreading the retainer on the Copy Stacker.
Page 278 5) Fusing Unit a) Remove the Fusing Unit by removing the four screws (2). Note: The Copy Stacker Cover must be removed first. 6) Manual Feed Assembly (only OKIFAX 2350/2450) a) First, carry out the disassembly procedure up to the point of Main Cover removal. (Refer to sub-section 4.2.2 b) Remove the Manual Feed Assembly by flexing it down, and then pressing inward on the two retainers.
Page 280 Page: 154 Service Guide OF1050/2350/2450 Chapter 4 Mechanical Disassembly and Reassembly 4.2.6 Lower Base, Motor Assembly, Back-up Roller, Transfer Roller, Reset Levers (1) Disassembly procedure 1) Lower Base, Motor Assembly a) First, carry out the disassembly procedure up to, but not including, the point of the Fusing Unit removal.
Page 281 2) Back-up Roller, Reset Levers After removing the Lower Base: a) Use a needle nose pliers to remove the stacker cover reset spring (1). b) Press down on the back-up (pressure) rollers (4) to release the tension on the left and right reset levers.
Page 282 3) Transfer Roller Caution: Do NOT touch the transfer roller! Touching the transfer roller may cause incomplete toner transfer, resulting in faded output. a) Use extreme care when lifting the transfer roller. The left bearing will break if too much twist or pressure is applied.
Page 283 (2) Reassembly procedure Reverse the disassembly procedures. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 284 Page: 155 Service Guide OF1050/2350/2450 Chapter 4 Mechanical Disassembly and Reassembly 4.2.7 Registration Roller, Hopping Roller, Sensor Plates (1) Disassembly procedure 1) Registration Roller, Hopping Roller a) First, carry out the disassembly procedure up to the point of the Lower Base removal.
Page 285 Press and hold the latches (1) while pushing the Toner Sensor up and out. (2) Reassembly procedure Reverse the disassembly procedures. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 286 Page: 156 Service Guide OF1050/2350/2450 Chapter 4 Mechanical Disassembly and Reassembly 4.2.8 MCNT Board, Power Supply Unit, Contact Assembly, Transformer (1) Disassembly procedure The Main Control PCB (R054/R050, R175, R175-2) and Power Supply Unit can be easily accessed by removing the scanner and printer as whole assemblies. Use the following disassembly procedure.
Page 287 2 MCNT board (for OKIFAX 1050) a) Remove the MCNT Board by removing the five screws (1). MCNT Board (for OKIFAX 2350/2450) a) Remove the MCNT Board by removing the five screws (2). 3) Power Supply Unit and Contact Assembly a) Disconnect the two connectors from the Transformer.
Page 288 Remove the Transformer by disconnecting the two connectors. (2) Reassembly procedure Reverse the disassembly procedures. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 289 LED print head (old part), you do not always have to set the LED print head drive time. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 290 Page: 158 Service Guide OF1050/2350/2450 Chapter 5 Adjustments 5.2 Power Voltage (Confirmation) The power voltage of the machine are not adjustable. However, their measurement procedures are described here for the confirmation of each voltage. It is not possible to measure the +8VDC, and +30VDC voltages.
Page 291 Figure 5.2.1 +5VDC Measurement Points on MCNT Board Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 292 Page: 159 Service Guide OF1050/2350/2450 Chapter 5 Adjustments 5.3 Contact Image Sensor Output Check (Confirmation) PC board name: R054/R050 (MCNT) board for OKIFAX 1050, R175 (MCNT) board for OKIFAX 2350 and R175-2 (MCNT) board for OKIFAX 2450. Measurement points: SIG signal, CN10-1 pin and ground terminal Specification: A waveform sample is shown below.
Page 293 Figure 5.3.1 SIG Signal Measurement Points on MCNT Board Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 294 Page: 160 Service Guide OF1050/2350/2450 Chapter 6 Cleaning and Maintenance 6.1 Replacement of Consumable Parts The user (or service personnel) is required to replace the following items as consumable parts. 6.1.01 User side Part name Expected Use Before Replacement Reference Item No.
Page 295 Figure 6.1.1 Consumable Parts 6.1.03 Others Table 6.1.1 Reliability Item Specifications Document feeder Jam occurrence and misfeeds in the automatic document feeder will be less than one in 500 operations for all specified documents. Recording paper feeder Jam occurrence in the automatic paper feeder will be less than one in 1,500 operations and misfeeds will be less than one in 500 operations for all specified recording paper.
Page 297 Page: 161 Service Guide OF1050/2350/2450 Chapter 6 Cleaning and Maintenance 6.2 Preventative Maintenance Preventative maintenance of the following items should be performed semi-annually after the machine is installed (or whenever the machine requires service). The description of preventative maintenance is shown in Table 6.2.1.
Page 298 ADF and power supply optical sensors as necessary. Figure 6.2.1 Parts of Routine Inspection Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 299 User can clear only DRUM counter. When the drum has reached its life span, LCD shows REPLACE I/D Unit. After having cleared the drum counter, warning message will be disappeared. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 300 Page: 163 Service Guide OF1050/2350/2450 Chapter 6 Cleaning and Maintenance 6.4 Printer Counter Display/Clear 6.4.01 Purpose The service personnel can clear and check the following counters: Image Drum Toner Image Drum (Total) Print Scan 6.4.02 Procedure The following shows the case when the service bit has been set ON.
Page 302 Page: 164 Service Guide OF1050/2350/2450 Chapter 6 Cleaning and Maintenance 6.5 Self-diagnosis Test 6.5.01 Purpose To check ROMs, RAMs and printing function. 6.5.02 Procedure Test report will be automatically printed out with the following items: OKIFAX 1050 Pattern 1 Stair pattern (32 lines in each...
Page 303 CPU-ROM VERSION In case CPU-ROM is good. HASH OK CPU-ROM In case CPU-ROM is not good. HASH NG CPU-RAM In case CPU-RAM is good. In case CPU-RAM is not good. FLASH VERSION FLS1 In case FLS1 is good. HASH OK In case FLS1 is not good.
Page 304 FLASH VERSION LANGUAGE In case LANGUAGE is good. HASH OK In case LANGUAGE is not good. HASH NG DEFAULT VERSION DEFAULT In case DEFAULT is good. HASH OK In case DEFAULT is not good. HASH NG RAM1 In case RAMi is good. RAM2 In case RAMi is not good.
Page 305 *2 marked items are optional. OPT-RAM3 OPT-RAM4 PC-I/F VERSION PP01 HASH 1507 Figure 6.5.1 Self-diagnosis Data Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 306 Page: 165 Service Guide OF1050/2350/2450 Chapter 6 Cleaning and Maintenance 6.6 Sensor Calibration Test 6.6.01 Purpose To adjust the linearity of output levels of contact image sensor.
Page 307 Note: After adjustment of levels, check the copy quality by copying test charts or documents. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 308 6.7 LED Test 6.7.01 Purpose To check all LEDs on operation panel by lighting. 6.7.02 Procedure Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 309 6.8.01 Purpose To send G3 tonal frequencies through the phone line for remote testing. 6.8.02 Procedure Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 310 Page: 168 Service Guide OF1050/2350/2450 Chapter 6 Cleaning and Maintenance 6.9 High-speed Modem Send Test 6.9.01 Purpose To check the telephone line quality in combination with a remote station programmed to the high-speed modem receive test mode. 6.9.02 Procedure...
Page 312 6.10.01 Purpose To check the telephone line quality in combination with a remote station programmed to the high-speed modem send test mode. 6.10.02 Procedure Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 313 6.11 MF Send Test 6.11.01 Purpose To send the multi-frequencies of tone dialing to the line. 6.11.02 Procedure Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 314 6.12 Tone (TEL/FAX) 6.12.01 Purpose To check the pseudo-ring back tone of TEL/FAX automatic switching. 6.12.02 Procedure Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 315 A printed page will carry the residual toner from the machine. This cleaning should be performed when print quality becomes questionable. 6.13.02 Procedure Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 316 6.14.01 Purpose To analyze the transmitted/received G3 protocol signals. This data is useful when troubleshooting communications problems. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 317 Manual print-out of the last communication. Note: The service bit (TF#1) must be ON to enable the Protocol Dump Report. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 318 Page: 175 Service Guide OF1050/2350/2450 Chapter 6 Cleaning and Maintenance 6.14.03 Dump data description Data sample Figure shows the printed data as a sample.
Page 319 Figure 6.14.1 Protocol Dump Data (Sample: at transmitter side)
Page 321 Page: 176 Service Guide OF1050/2350/2450 Chapter 6 Cleaning and Maintenance 6.14.04 Analysis from the data The printed out data permits to analyze G3 facsimile communication protocol signals between two facsimile machines. Figure 6.14.2 shows the result of an analysis on the printed data referring to Figure...
Page 322 Figure 6.14.2 Result of Analysis (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 323 Page: 177 Service Guide OF1050/2350/2450 Chapter 6 Cleaning and Maintenance 6.14.05 FCF (Facsimile Control Field) conversion table Table 6.14.1 shows all FCF signals which are needed to analyze the printed out protocol dump data. Some signals have two different hexadecimal codes in accordance with the calling party or called party.
Page 324 Return to Control for Partial Page 37 B7 Receiver not Ready 76 F6 Receiver Ready Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 325 Chapter 6 Cleaning and Maintenance 6.15 System Reset 6.15.01 Purpose To clear or initialize the following data: (a) Location data (b) Configuration data (default) 6.15.02 Procedure Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business...
Page 326 Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 327 Page: 179 Service Guide OF1050/2350/2450 Chapter 6 Cleaning and Maintenance 6.16 Service Code 6.16.01 The service code can be printed on Activity Report to recognize the result of each communication. 6.16.02 The activity report indicates the code 0000", should a communication terminates on normal status as a service code.
Page 328 21B0 Transmitter tried to transmit by confidential transmission function but the remote fax has not the capability of confidential reception. 21B1 Transmitter tried to transmit by Broadcast Initiate function but the remote fax has not the broadcast capabil-ity. 21C0 In Closed Network setting, TSI/CIG/CSI is either not received or, if received, it is not authorized one.
Page 329 90F1 Fan motor error. 90F2 Fuser error. 90F3 Recording paper size error. 90F4 Cover open. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 330 Page: 180 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair General This chapter contains: (a) Troubleshooting flow charts related to general operations (b) Troubleshooting flow charts by test operations (c) Troubleshooting flow charts placing an emphasis on mechanical portions Section...
Page 331 7.21 Document jam 7-24 7.22 Printer unit 7-25 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 332 Page: 181 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.1 Overall Troubleshooting Flow Chart...
Page 334 Page: 182 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.2 No LCD Operation Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 335 Page: 183 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.3 ALARM LED ON Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 336 Page: 184 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.4 Printing Test Failure Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 337 Page: 185 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.5 No Local Copy...
Page 339 Page: 186 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.6 Auto Dial Failure Note: Make sure that your selected dialing method (tone/pulse) is appropriate for your Telco / PBX needs. Refer to the Dialing Parameters in the Users Documentation.
Page 341 Page: 187 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.7 Transmission Problem This section explains how to localize the cause of problems occurred after completion of connection with a remote station. Before beginning: Printout the Activity Report. Look for common failure items. For instance, is one particular country, area code or phone number always causing the problem? If possible, substitute the "defective"...
Page 342 Perform the High-Speed Modem Transmit Test (refer to section 7.13). If this test fails, perform replacements listed below until problem is corrected. Data communication problems could have many different causes. It would be almost impossible to design a RAP to cover all possible situations. Therefore, once you have performed the above listed steps, replace the following assemblies in the order listed: 1) Modem board (OKIFAX 2350/2450 only) 2) MCNT board...
Page 344 Page: 188 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.8 Auto Reception Failure...
Page 346 Page: 189 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.9 Reception Problem This section explains how to localize the cause of problems occurred after completion of connection with a remote station. Before beginning: Printout the Activity Report. Look for common failure items. For instance, is one particular country, area code or phone number always causing the problem? If possible, substitute the "defective"...
Page 347 Perform the High-Speed Modem Transmit Test (refer to section 7.13). If this test fails, perform replacements listed below until problem is corrected. Data communication problems could have many different causes. It would be almost impossible to design a RAP to cover all possible situations. Therefore, once you have performed the above listed steps, replace the following assemblies in the order listed: 1) Modem board.
Page 349 Refer to section 7.20. NO Does the document jam? Refer to section 7.21. NO Is the problem resolved? YES End of procedure. NO Contact Technical Support. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business...
Page 350 Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 351 Page: 191 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.11 LED Test...
Page 353 Page: 192 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.12 Tone Send Test Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 354 Page: 193 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.13 High-speed Modem Test...
Page 356 Page: 194 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.14 MF Send Test Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 357 Page: 195 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.15 Tone (TEL/FAX) Send Test Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 358 There are two source routes of acoustic line monitor: (a) General communication signal (b) DP pulse signal Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 359 Page: 197 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.17 Power Supply Unit Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 360 Page: 198 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.18 No Document Feeding...
Page 362 Definition: Multiple document feeding. Multiple documents are not separated and they are fed in the same one feeding operation. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 363 Page: 200 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.20 Document Skew...
Page 365 Page: 201 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.21 Document Jam...
Page 367 (4) Do not expose the drum to light for longer than 5 minutes at room temperature. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 368 Page: 203 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair 7.22.2 Troubleshooting Flow Chart of Printer Unit Overall troubleshooting flow chart: Category LCD message Trouble Troubleshooting display flow chart number Cover 14:14 [FAX] The cover (copy stacker) is open. open...
Page 369 14:14 [FAX] Toner is running empty. REPLACE TONER Note: No toner memory RX is OFF. CART. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 370 Chapter 7 Troubleshooting and Repair Troubleshooting flow chart 1: The cover (copy stacker) is open. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 371 Chapter 7 Troubleshooting and Repair Troubleshooting flow chart 2: Warning message to replace ID unit because of its life. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 372 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair Troubleshooting flow chart 3: Engine controller error (ROM/RAM error) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 373 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair Troubleshooting flow chart 4: Fan motor rotation error Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 374 NO Replace the MCNT board. If the problem persists, replace the power supply board. YES Replace the fusing unit. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 375 Page: 209 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair Troubleshooting flow chart 6: Recording paper feed jam, transport jam, ejection jam, recording size error Note 1: The paper length stop must be set for the correct paper size, but should not be "pinching" the paper.
Page 376 Note 4: Check fuser heat and back up rollers for dirt or toner contamination. Clean as necessary. Always allow fuser to cool before cleaning. Use Caution! Fuser area is very hot. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 377 Page: 210 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair Troubleshooting flow chart 7: No recording paper cassette or not recording paper ACTION Check and/or replace MCNT board. Check the following & replace if necessary.: POWER SUPPY UNIT Cover Open Switch...
Page 378 Check for spilled toner. Vacuum all toner from printer and clean toner carefully from all drive gears. Check the connection between the power supply, contact assembly, fuser assembly, heater, and the thermostat. Check PWU Check entrance sensor lever, hopping roller, and registration motor for dirt.
Page 379 Poor fusing (Images are blurred or peeled off when touched by hands) Figure 7.22.1 Abnormal Symptoms of Image Troubles (Example) Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 380 Page: 211 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair Troubleshooting flow chart 8: Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 381 Page: 212 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair Troubleshooting flow chart 9: Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 382 Page: 213 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair Troubleshooting flow chart 10: Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 383 Page: 214 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair Troubleshooting flow chart 11: Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 384 This refers to repetitive "spots" or unusual marks on printed pages. Measure the distance between them to determine the problem. Note: "ID" refers to the Image Drum. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 385 Page: 216 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair Troubleshooting flow chart 13: Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 386 Page: 217 Service Guide OF1050/2350/2450 Chapter 7 Troubleshooting and Repair Troubleshooting flow chart 14: Troubleshooting flow chart 15:...
Page 388 Page: 218 Service Guide OF1050/2350/2450 Chapter 8 Drawings and Parts List OKIFAX 1050...
Page 390 Page: 219 Service Guide OF1050/2350/2450 Chapter 8 Drawings and Parts List OKIFAX 2350/2450...
Page 392 Page: 220 Service Guide OF1050/2350/2450 Chapter 8 Drawings and Parts List OKIFAX 1050...
Page 394 Page: 221 Service Guide OF1050/2350/2450 Chapter 8 Drawings and Parts List OKIFAX 2350/2450...
Page 395 Section 1: Cabinet Illustratio OKIFAX Description Okidata Part Part Number Number Number...
Page 396 4PB4120-1136P 2450 1050/2350/ GUIDE: ASSIST 51019601 4PP4120-1161G 2450 1050/2350/ SPRING: METAL TENSION 50930601 4PP4120-1107P 2450 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 398 Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 400 Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 401 Page: 224 Service Guide OF1050/2350/2450 Chapter 8 Drawings and Parts List OKIFAX 2450 Section 2: Control...
Page 402 COVER: ONE TOUCH 1PP4120-1112P1 2350 COVER: ONE TOUCH 1PP4120-1111P1 2450 COVER: ONE TOUCH 53076101 1PP4120-1072P1 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 403 Page: 225 Service Guide OF1050/2350/2450 Chapter 8 Drawings and Parts List OKIFAX 2350/2450 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 404 Page: 226 Service Guide OF1050/2350/2450 Chapter 8 Drawings and Parts List OKIFAX 1050 Section 3: Printer Illustratio OKIF Description Okidata Part Number Part Number Number...
Page 405 1050/ COVER: 53069008 2PA4083-6160G8 2350/ FACE DOWN STACKER 2450 ASSY. 1050/ WIRE: GUIDE 51013801 4PB3517-1567P1 2350/ 2450 1050 MOTOR: MAIN STEPPER 56511303 4PB4122-1243P3 2350/ MOTOR: MAIN STEPPER 56512701 4YB4120-1117P1 2450 1050 MOTOR: REGISTRATION 56511302 4PB4122-1243P2 STEPPER 2350/ MOTOR: REGISTRATION 56512601 4YB4120-1118P1 2450 STEPPER...
Page 406 1050/ LEVER: RESET (R) 50805901 3PP4083-6054P1 2350/ 2450 1050/ GEAR: EJECT ROLLER IDLE 51229201 4PP4083-6081P1 2350/ 2450 1050/ ROLLER: REGISTRATION (F) 50407001 3PB4122-1281P1 2350/ 2450 1050/ GEAR: TR 51236601 3PP4083-6290P1 2350/ 2450 1050/ ROLLER: TRANSFER 50409301 3YB4083-7640P1 2350/ 2450 1050/ ROLLER: BACK UP 53343702 3PB4083-6064P2...
Page 407 1050/ LEVER: EXIT SENSOR ASSY. 51010802 4PA4083-6025G1 2350/ 2450 1050/ ROLLER: EXIT ASSY. 50409901 2PA4120-1129G1 2350/ 2450 1050/ GUIDE: RELEASE ASSY. 51019201 2PA4120-1085G1 2350/ 2450 1050/ SPRING: RELEASE 50930001 4PP4120-1087P1 2350/ 2450 1050/ LED HEAD 56110802 4YA4116-1115G2 2350/ 2450 1050/ CONNECTOR: PC 56730201 224A1286P0140...
Page 408 BRUSH: STATIC: RELEASE 51305103 4PB4120-1051P3 2350/ GUIDE 2450 1050/ BEARING: TR 51609001 3PP4083-6289P1 2350/ 2450 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 409 Page: 227 Service Guide OF1050/2350/2450 Chapter 8 Drawings and Parts List OKIFAX 1050...
Page 411 Page: 228 Service Guide OF1050/2350/2450 Chapter 8 Drawings and Parts List OKIFAX 2350/2450 Section 4: Base Assembly Illustratio OKIF Description Okidata Part Number Part Number 1050 POWER TRANSFORMER 56414701 4YB4049-7032P1 (120V) 2350/ POWER TRANSFORMER 56414801 4YB4049-7082P1 2450 (120V) 1050/ ASSY: CONTACT...
Page 412 1050/ LINK: SHEET (R) 50808601 4PP4083-7658G1 2350/ 2450 1050/ CASSETTE: PAPER ASSY. 50110501 1PA4120-1162G1 2350/ 2450 1050/ FRAME: SEPARATION ASSY. 53345601 3PP4083-5663G1 2350/ 2450 1050/ BEAM 51608801 3PP4083-7660P1 2350/ 2450 1050/ GUIDE: CASSETTE (L) ASSY. 51019001 3PP4083-7670G1 2350/ 2450 1050/ PLATE: BASE SUB ASSY.
Page 413 1050/ INDICATOR: PAPER SUPPLY 57001501 3PP4122-1171P1 2350/ 2450 1050/ FOOT: RUBBER 50806104 4PB4016-1960P4 2350/ 2450 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 414 Page: 229 Service Guide OF1050/2350/2450 Chapter 8 Drawings and Parts List OKIFAX 1050/2350/2450 Section 5: Scan Unit...
Page 415 Illustratio OKIF Description Okidata Part Number Part Number 1050/ FRAME: SCANNER SUB 53348001 2PA4120-1160G1 2350/ ASSY. 2450 1050/ BASE: SCANNER (L) 50221101 2PP4120-1034P1 2350/ 2450 1050/ PLATE: ADF GROUND 51019901 4PP4120-1023P1 2350/ 2450 1050/ LEVER: PC2 50808801 3PP4120-1017P1 2350/ 2450 1050/ LEVER: PC1 50808701...
Page 416 MOTOR: SCAN 56512901 4YB4120-1035P1 2350/ MOTOR: SCAN 56513101 4YB4120-1036P1 2450 1050/ SCREW +BTD3-8-10F 2350/ 2450 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 417 Page: 230 Service Guide OF1050/2350/2450 Chapter 8 Drawings and Parts List OKIFAX 1050/2350/2450...
Page 418 Section 6: Paper Guide Illustratio OKIF Description Okidata Part Number Part Number...
Page 419 1050/ ROLLER: FEED (1) ASSY. 50410301 3PA4120-1045G1 2350/ 2450 1050/ PLATE: GROUND (SR) 51020201 4PP4120-1047P1 2350/ 2450 1050/ PLATE: GROUND (SL) 51020301 4PP4120-1048P1 2350/ 2450 1050/ GROUND WIRE 4YS4011-1714P2 2350/ 2450 1050/ GUIDE: PAPER (U) SUB 51020401 2PA4120-1159G1 2350/ ASSY. 2450 1050/ PLATE: PINCH ASSY.
Page 420 GROUND WIRE 4YS4011-1714P3 2350/ 2450 1050/ FRAME: PAPER GUIDE (U) 51020601 2PA4120-1213G1 2350/ ASSY. 2450 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 421 Page: 231 Service Guide OF1050/2350/2450 Chapter 8 Drawings and Parts List OKIFAX 1050...
Page 423 Page: 232 Service Guide OF1050/2350/2450 Chapter 8 Drawings and Parts List OKIFAX 2350/2450...
Page 424 Section 7: Cables Illustratio OKIF Description Okidata Part Number Part Number...
Page 425 2450 1050/ CORE: FERRITE 55505303 105A1051C1003 2350/ 2450 1050/ CORE: FERRITE 55505203 105A1070C0003 2350/ 2450 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 426 FOAM: PACKAGING (BOT. L) 53581602 2350/ 2450 1050/ FOAM: PACKAGING (BOT. R) 53581603 2350/ 2450 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 427 This Manual is intended for maintenance personnel and describes the field maintenance methods for High Capacity Second Paper Feeder option of OKIFAX 2350/2450 Series Plain Paper Facsimile Systems. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 428 Paper setting quantity: 500 sheets of paper weighing 64 g/m 2 9.1.2 External View and Component Names Fig. 1-1 External View and Component Names Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 430 Page: 237 Service Guide OF1050/2350/2450 Chapter 9 High Capacity Second Paper Feeder Maintenance 9.3 PARTS REPLACEMENT This section covers the procedures for the disassembly, reassembly and installations in the field. This section describes the disassembly procedures, and for reassembly procedures, basically proceed with the disassembly procedures in the reverse order.
Page 432 Page: 238 Service Guide OF1050/2350/2450 Chapter 9 High Capacity Second Paper Feeder Maintenance 9.3.2 Parts Layout This section describes the layout of the main components. Fig. 3-1...
Page 434 This section describes the parts replacement methods for the components listed in the disassem-bly order diagram below. Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 435 Page: 240 Service Guide OF1050/2350/2450 Chapter 9 High Capacity Second Paper Feeder Maintenance 9.3.3.1. Pulse Motor (Hopping) 1) Turn the OKIFAX power switch off, pull out the AC cord from the outlet. Remove the OKIFAX from the High Capacity Second Paper Feeder.
Page 436 6) Remove three screws 9 which are holding the guide R (2nd) assy 0 to the bottom plate A. Remove the screw B which is keeping the rear cover C and guide R (2nd) assy 0. Remove the guide R (2nd) assy 0. 7) Remove the protect (M) D, guide bracket E, planet gears F and planet gear bracket G.
Page 438 Page: 241 Service Guide OF1050/2350/2450 Chapter 9 High Capacity Second Paper Feeder Maintenance 9.3.3.2. TQSB-PCB (see 9.3.3.1 1) Remove the pulse motor 2) Remove the connector O from the TQSB-PCB P. 3) Remove the screw Q and remove the TQSB-PCB Note : Refer to Detail A in the previous page.
Page 440 Page: 242 Service Guide OF1050/2350/2450 Chapter 9 High Capacity Second Paper Feeder Maintenance 9.4 Troubleshooting 9.4.1 Precautions Prior to the Troubleshooting Go through the basic checking items provided in the prior sections of this Handbook. Obtain detailed information concerning the problem from the user. Go through checking in the conditions similar to that in which the problem occurred.
Page 441 Jam error Notifies of • Check the paper in (ejection) occurrence the printer. Carry out (see note of jam while the the recovery printing by below) paper opening and closing is being ejected the cover, and turn the from error display off. the printer.
Page 443 Service Guide OF1050/2350/2450 Chapter 9 High Capacity Second Paper Feeder Maintenance 9.5 Connection Diagram 9.5.1 Interconnection Diagram Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 444 Service Guide OF1050/2350/2450 Chapter 9 High Capacity Second Paper Feeder Maintenance 9.5.2 PCB Layout TQSB-PCB Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)
Page 445 Page: 245 Service Guide OF1050/2350/2450 Chapter 9 High Capacity Second Paper Feeder Maintenance 9.6 Parts List...
Page 448 Figure 6-1 High Capacity Second Paper Feeder...
Page 449 Guide: 2nd Cassette (R) Assy 1YX4122-1364G002 50222201 Clutch: One-Way 2nd Tray 4PP4122-1382P001 51401101 PCB: TQSB (2nd Feeder) 4YA4046-1651G002 55078102 Copyright 1997, Okidata, Division of OKI America, Inc. All rights reserved. See the OKIDATA Business Partner Exchange (BPX) for any updates to this material. (http://bpx.okidata.com)

This manual is also suitable for:

Okifax 1050 Okifax 2350 Okifax 2450

OKIDATA OF1050 Service Manual

About this Manual

1 General Information

2 Setup Information

Quick Links

Need help?

Questions and answers

Related Manuals for OKIDATA OF1050

Summary of Contents for OKIDATA OF1050

This manual is also suitable for:

Table of Contents
