Blank Panel Removal

Remove the blank panels from the front panel as follows.
1. Remove the system unit cover and front panel as previously described.
Remove the blank panel from the selected slot by pressing the panel tabs from in-
2.
side the front panel and pushing the blank panel out (see Figure 5-9).

Speaker Assembly Removal

Remove the speaker from the device cage as follows.
Remove the system unit cover as previously described.
1.
2. Unplug the speaker from its connector on the system board (see Appendix A for
connector assignments).
Top Blank
Panel Tabs
Bottom Blank
Panel Tabs

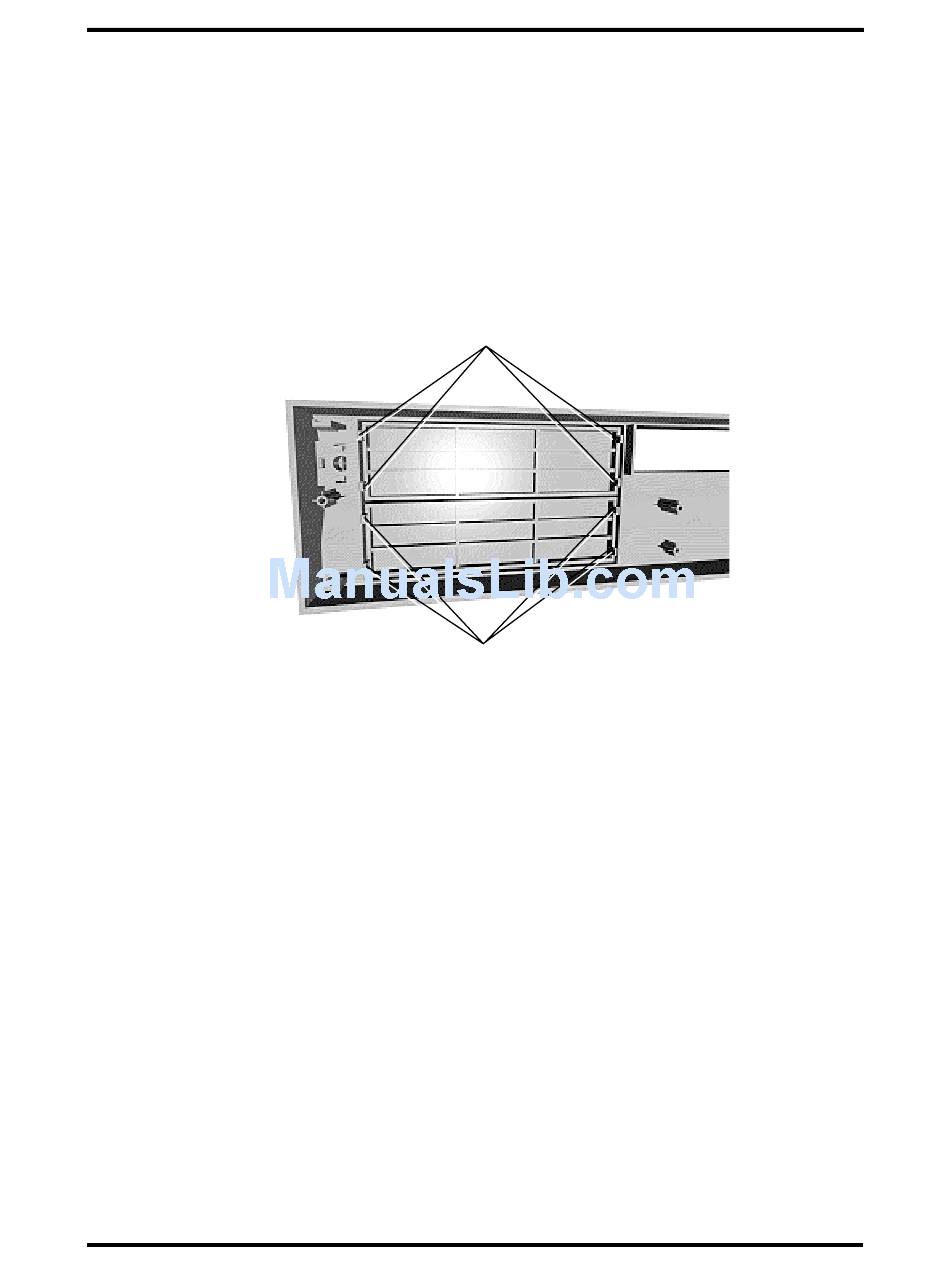

Figure 5-9 Blank Panel Tabs
