3-12 Option Installation
3. Position the SIMM in the socket. The notched end of the SIMM allows only the
correct positioning.
4. Insert the SIMM at an angle into the socket.
Tilt the SIMM towards the locking tabs using equal pressure at the ends of the
5.
SIMM until it locks into the socket (see Figure 3-10).
Clip
Replace any cables or boards that may have been removed.
6.
7. Replace the system unit cover.

Video Upgrade

Upgrade the video memory by adding two 512-KB by 16-bit video DRAM modules as
follows.
Remove the system unit cover as previously described.
1.
Locate the video DRAM sockets (see Figure 3-8).
2.
If any expansion boards are obstructing your view of the sockets, remove the
boards (see "Expansion Board Removal").
CAUTION: Before installing a SIMM, reduce
static discharge by touching the system's metal
chassis.

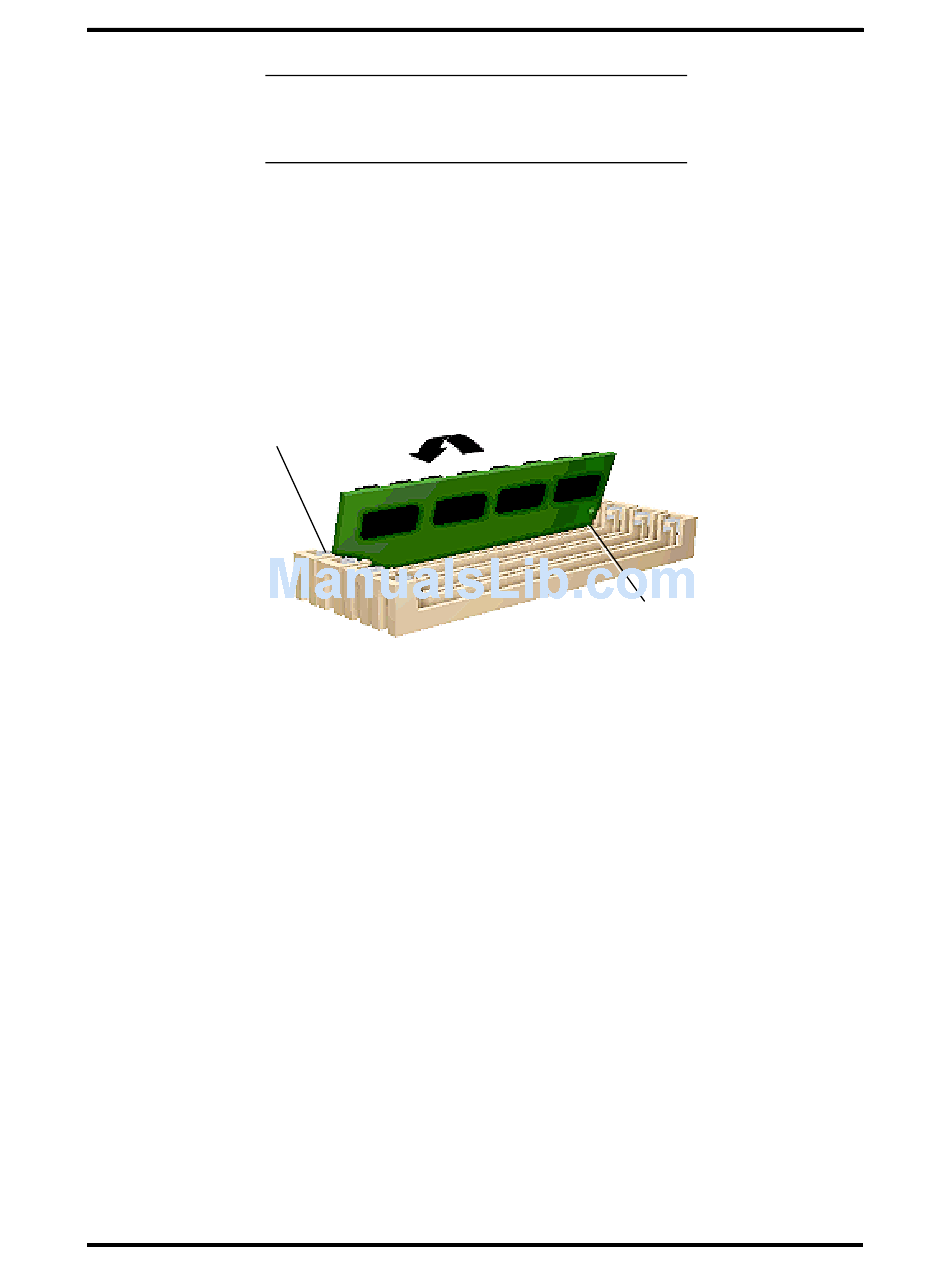

Figure 3-10 Inserting the SIMM
Notched End
of SIMM
