5-4
System Unit Repair
To remove a board on the inside of the PCI/ISA backboard, remove the two slot
cover support screws shown in Figure 5-4. The slot cover support secures the ex-
pansion board in place.
Screw
Remove the board from the expansion slot connector and take it out of the system
4.
unit.
Expansion
Board

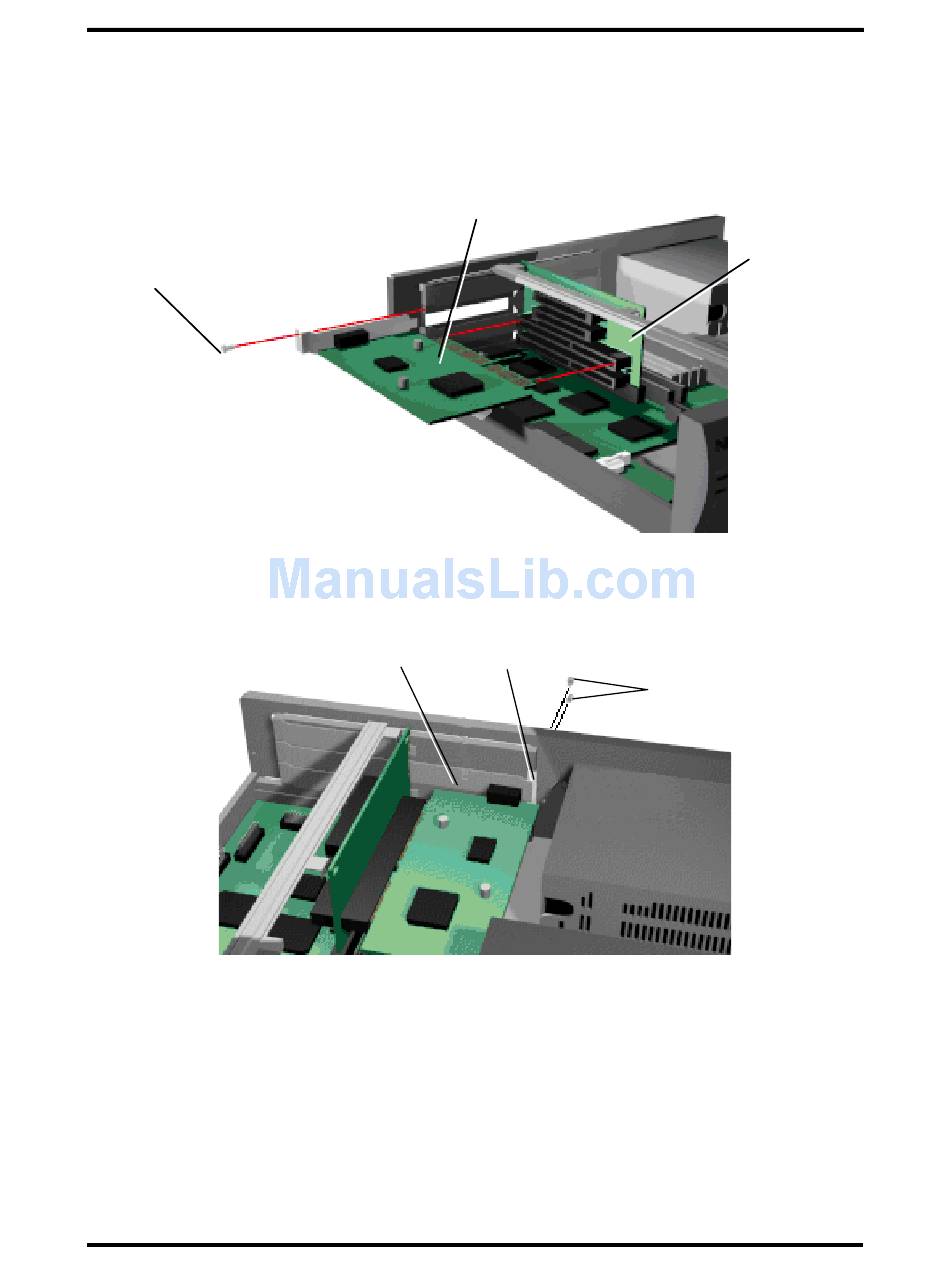

Figure 5-3 Expansion Slot Screw
Expansion Board
Slot Cover
Bracket
Support
Figure 5-4 Inside Expansion Slot Screw
ISA/PCI-Bus
Backboard
Screws
