Appendix B
System Board Jumpers
This appendix provides jumper setting information for configuring the system for a
particular system requirement. Situations that require changing the jumper settings include
the following:
T
upgrading the processor
T
clearing a password

JUMPER LOCATIONS

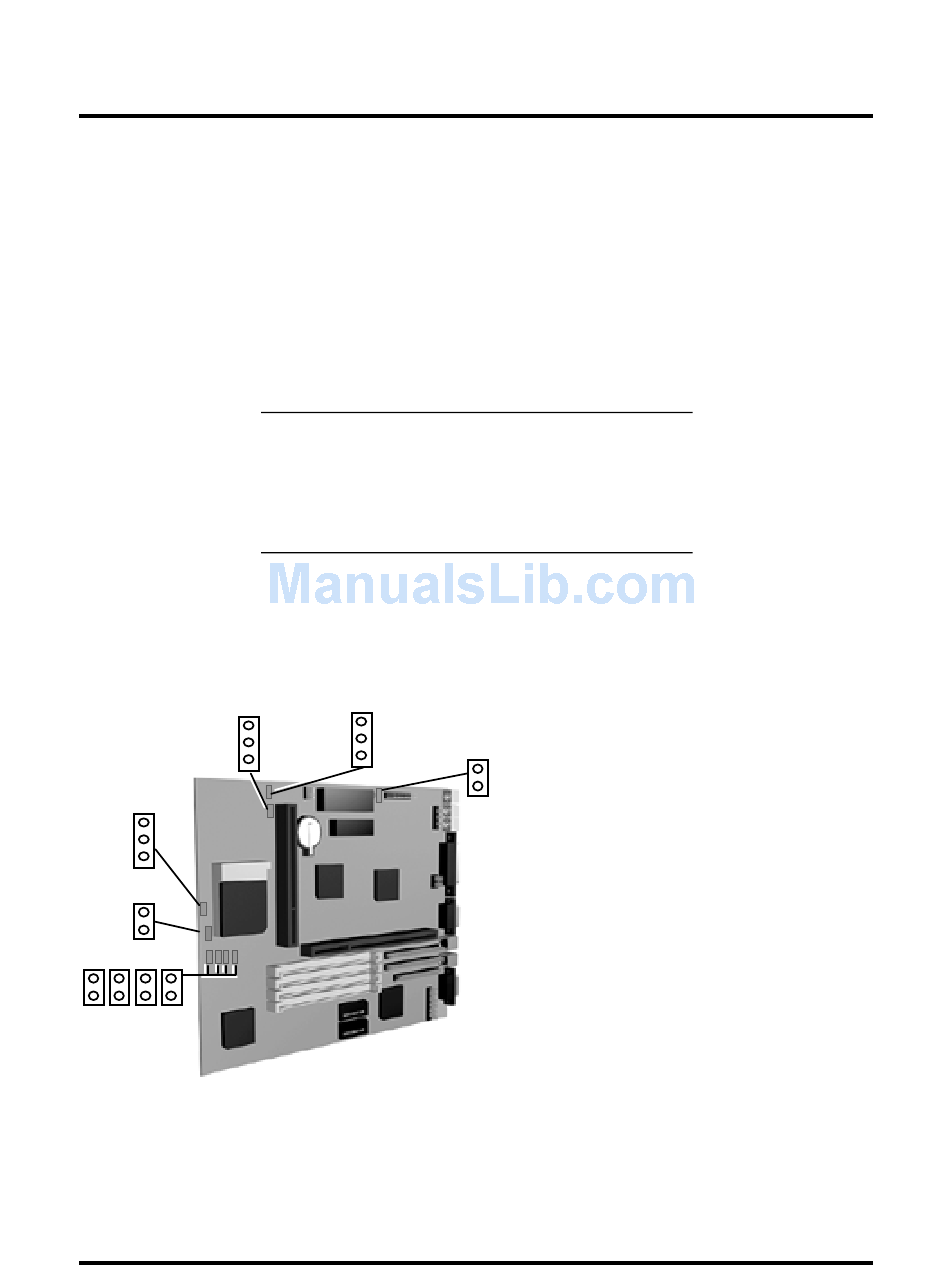

Figure B-1 shows the location of the system board jumpers.
L2 SRAM
Cache
1
2
3
BF0
1
2
3
BF1
JP5 JP4 JP7 JP3
CAUTION: Jumpers are set correctly at the
factory for the shipped configuration. If the
system requires a jumper change, change only the
jumper setting for that condition. Otherwise,
keep the jumpers at their factory settings.
VRE/VR
1
2
CLR PASSWD
3
Figure B-1 System Board Jumper Locations
