3-18 Option Installation

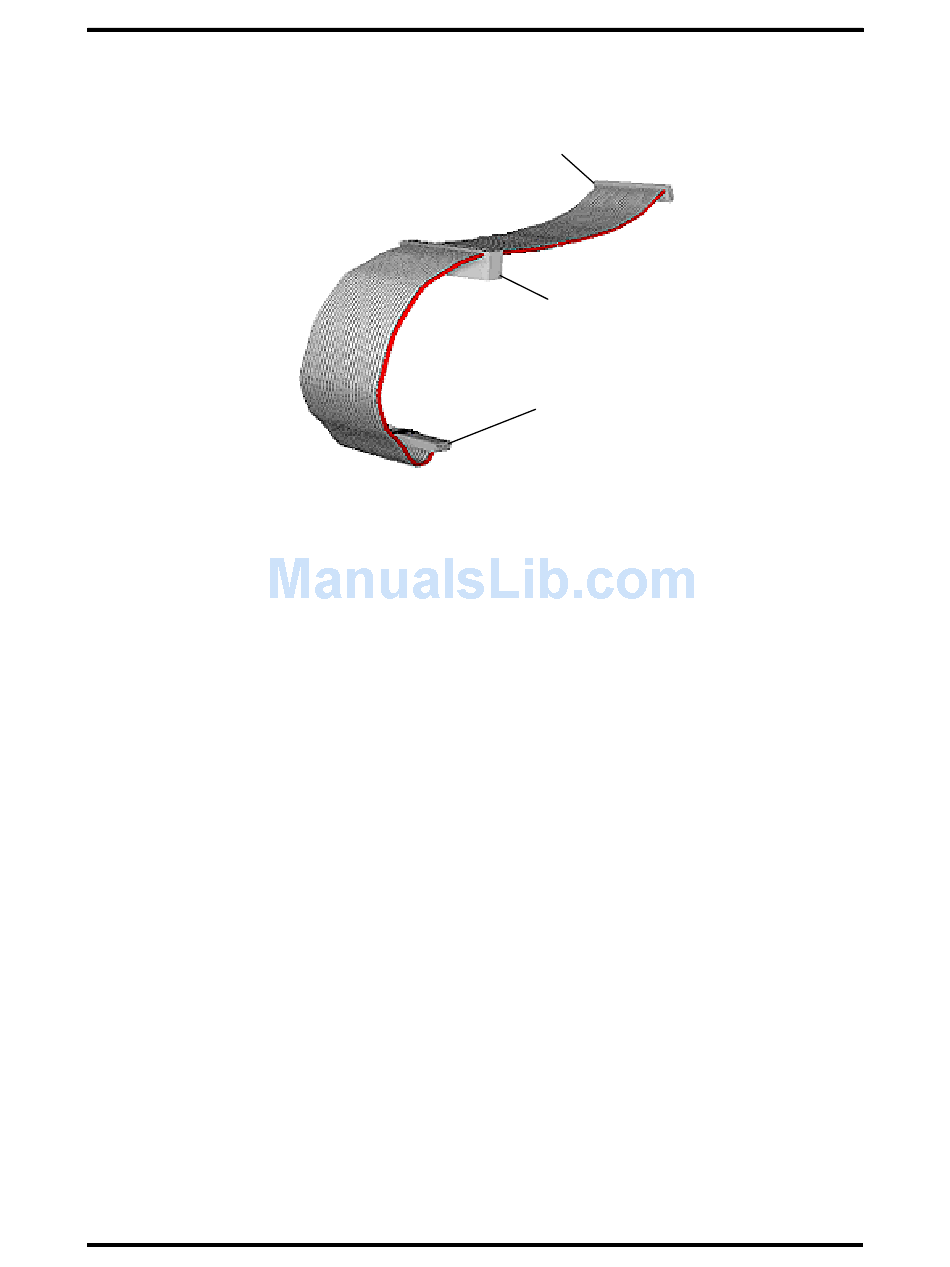

Figure 3-15 shows a three-connector diskette drive signal cable.
Figure 3-15 Optional Diskette Drive Signal Cable
IDE Signal Cables
Hard disk systems come with a three-connector IDE interface cable attached to the primary
IDE connector. Multimedia systems come with a second IDE cable connected to the CD-
ROM reader and to the secondary IDE connector.
Each IDE connector on the system board supports two IDE devices. The addition of an
IDE device to an IDE connector does not require the replacement of the existing IDE signal
cable.
If installing an optional IDE CD-ROM reader, connect it to the secondary IDE connector.
The primary (fast) IDE port should be reserved for hard disks.
Attaches to 1.44-MB
Diskette Drive
Attaches to Optional
Diskette Drive
Attaches to the
System Board
