This section provides an overview of the NEC PowerMate Professional 9000E
Series workstation configurations. The section highlights system hardware
features, front, back, and inside features, and system security features. Also
included are brief descriptions of the major components comprising the system.

Configurations

NEC PowerMate Professional 9000E Series workstations are built-to-order
systems for commercial offices. The systems feature one or two Intel
Pentium II processors, four dual inline memory module (DIMM) sockets, and
synchronous dynamic random access memory (SDRAM). The system also
features two universal serial bus (USB) ports, two serial ports, and a parallel
port. Ultra direct memory access (DMA), remote wakeup ("Wake-On LAN"),
and chassis intrusion monitoring are also supported. All systems come with a
sound board.
Build choices include intelligent device electronics (IDE) hard drives of
8.4 gigabyte (GB) or 14.4 GB, and ultra wide SCSI hard drives of 4.55 GB or
9.1 GB. Minimum system memory is 32-megabyte (MB) and is available in
64-MB, 128-MB, and 256-MB DIMM modules. Memory configurations range
from 64 MB to 1 GB. Systems come with a choice of workstation-class PCI
graphics boards.
Additional build choices include fax/modem, sound, video, and peripheral
devices such as CD-ROM drives.

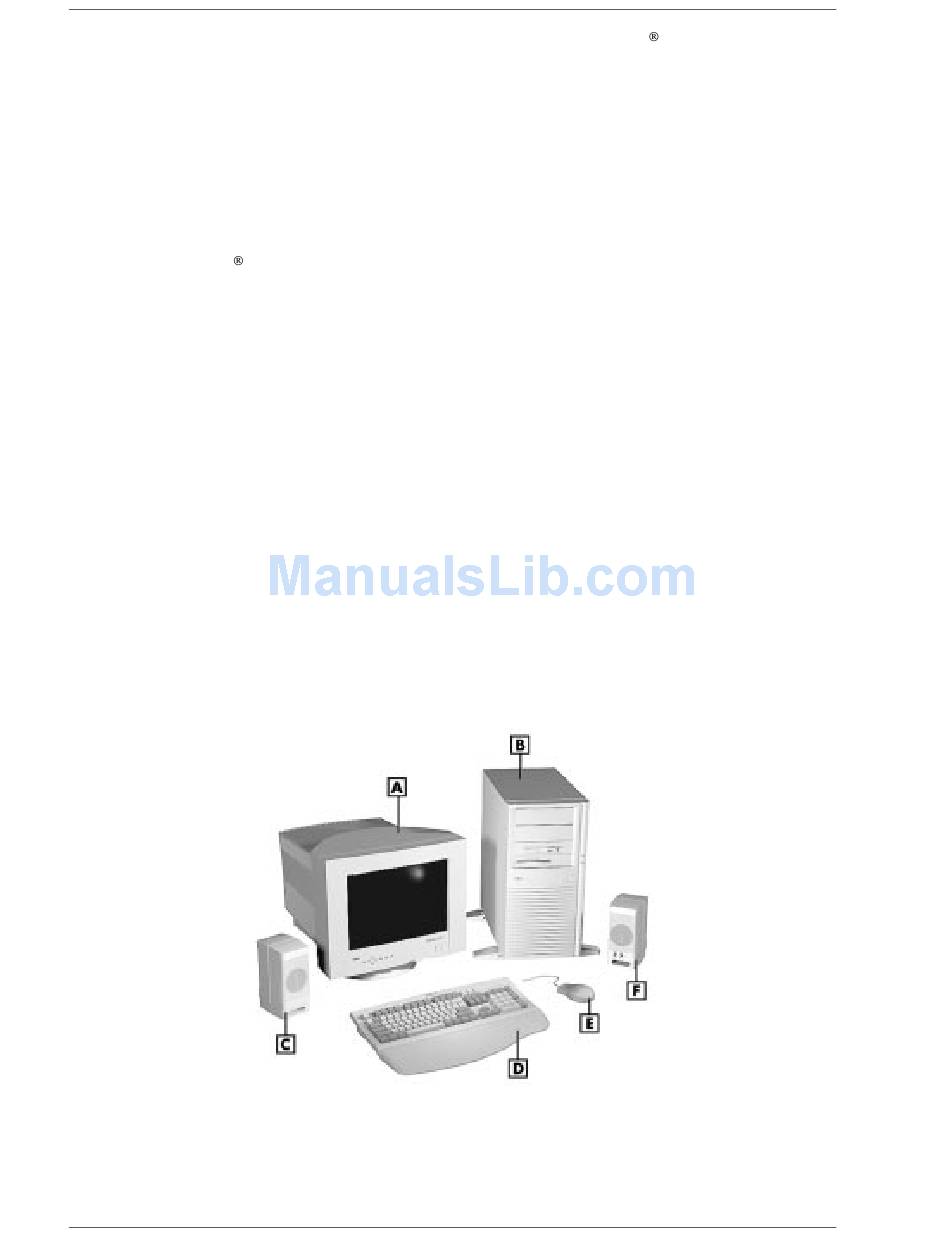

The following figure shows the components shipped with the PowerMate
Professional 9000E Series system (the monitor and speakers are optional).

PowerMate Professional 9000E Series System Components

A – Monitor (sold separately) B – System Unit
C – Left Speaker (speakers not available with all units)
D – Keyboard E – Mouse F – Right Speaker (speakers not available with all units)
