Pin Signal
53 CB3
54 VSS
55 DQ16
56 DQ17

IDE, SCSI, and Diskette Drive Cable Connectors

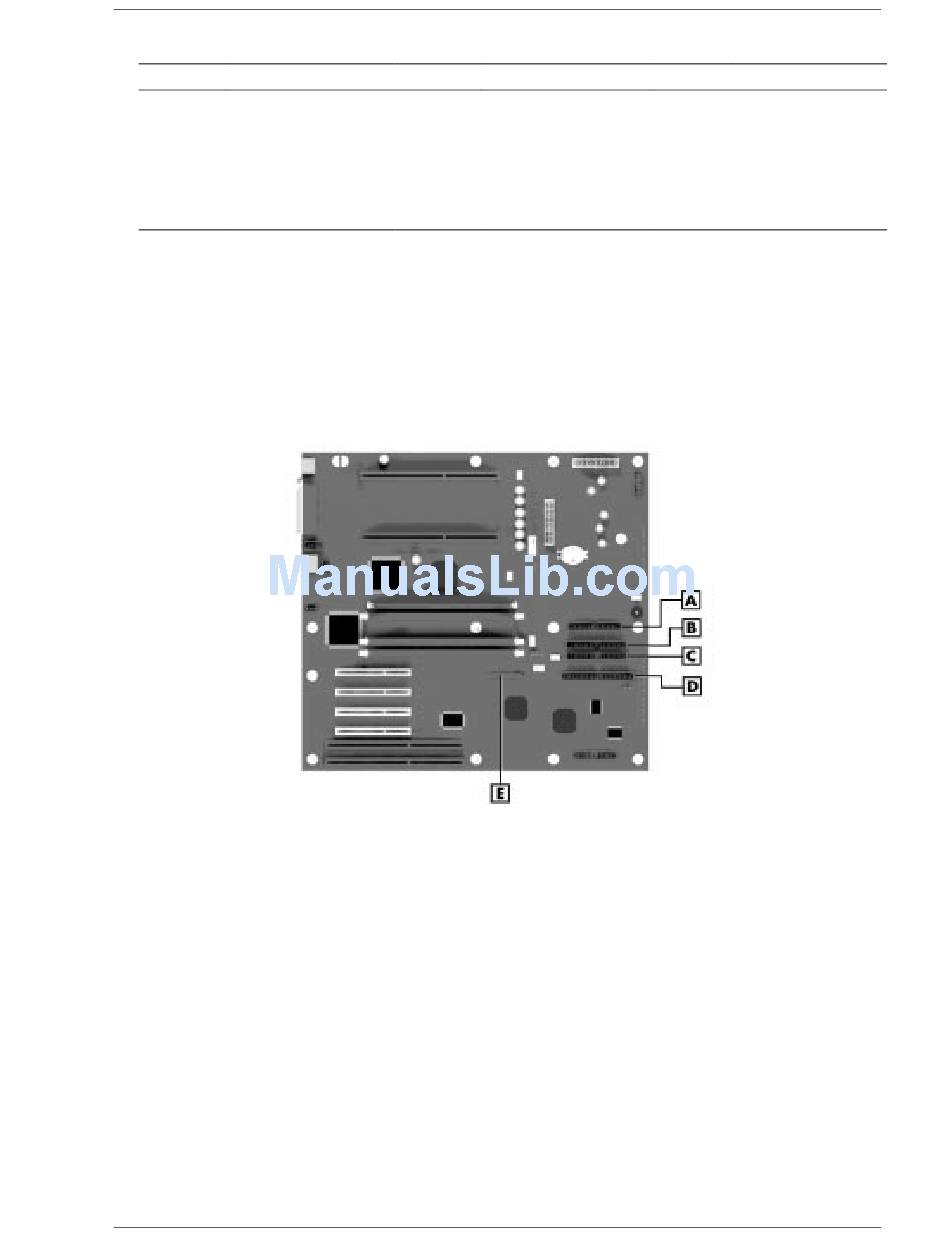

The IDE and diskette cable connectors are shown in the following figure. Pin
assignments are given in the tables following the figure.
A - Diskette Drive Connector B - Primary IDE Connector
C - Secondary IDE Connector D - Narrow SCSI Connector
E - Wide SCSI Connector
DIMM Socket Pin Assignments
Pin Signal
109 NC
110 VDD
111 CAS
112 DQM4

Drive Cable Connectors

Pin Signal
165 SA0
166 SA1
167 SA2
168 VDD
System Board 4-9
