Illustrated Parts Breakdown (IPB)

The following figure shows the illustrated parts breakdown (IPB) for
PowerMate Professional 9000E Series workstations. Each FRU on the IPB is
identified with a number that is a cross-reference to the FRU list.

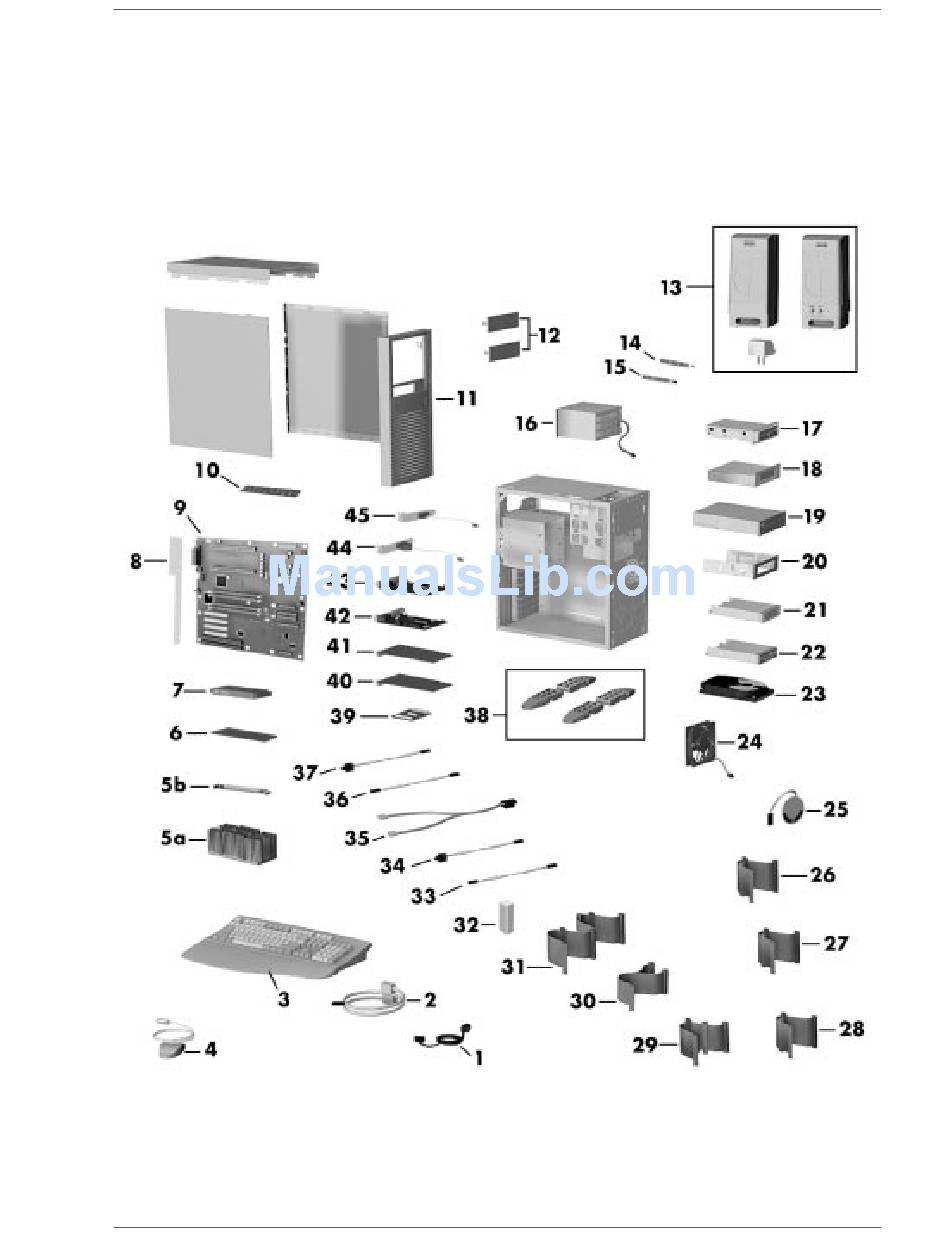

PowerMate Professional 9000E Series Illustrated Parts Breakdown*

* This data was prepared September 1998. For an up-to-date listing of spare parts, call FaxFlash at 1-888-329-0088
(or 1-978-635-6090 outside the U.S.) and order document 42102318.
Illustrated Parts Breakdown 6-5
