Memory

This subsection describes how to remove and replace DIMM memory modules.

Removal

To remove a DIMM module, proceed as follows:
1. Turn off the system and disconnect the power cord and all peripheral cables
connected to the system.
2. Remove the system unit top cover (see "System Unit Top Cover").
Remove the front bezel (see "Front Bezel").
3.
Separate the two halves of the chassis (see "Opening the System Chassis" in
4.
Section 3).
Disengage the latches on the DIMM socket (see Figure 5-10).
5.
6. Lift out the DIMM module.
7. Return the latches to upright position to avoid interference with other
components.

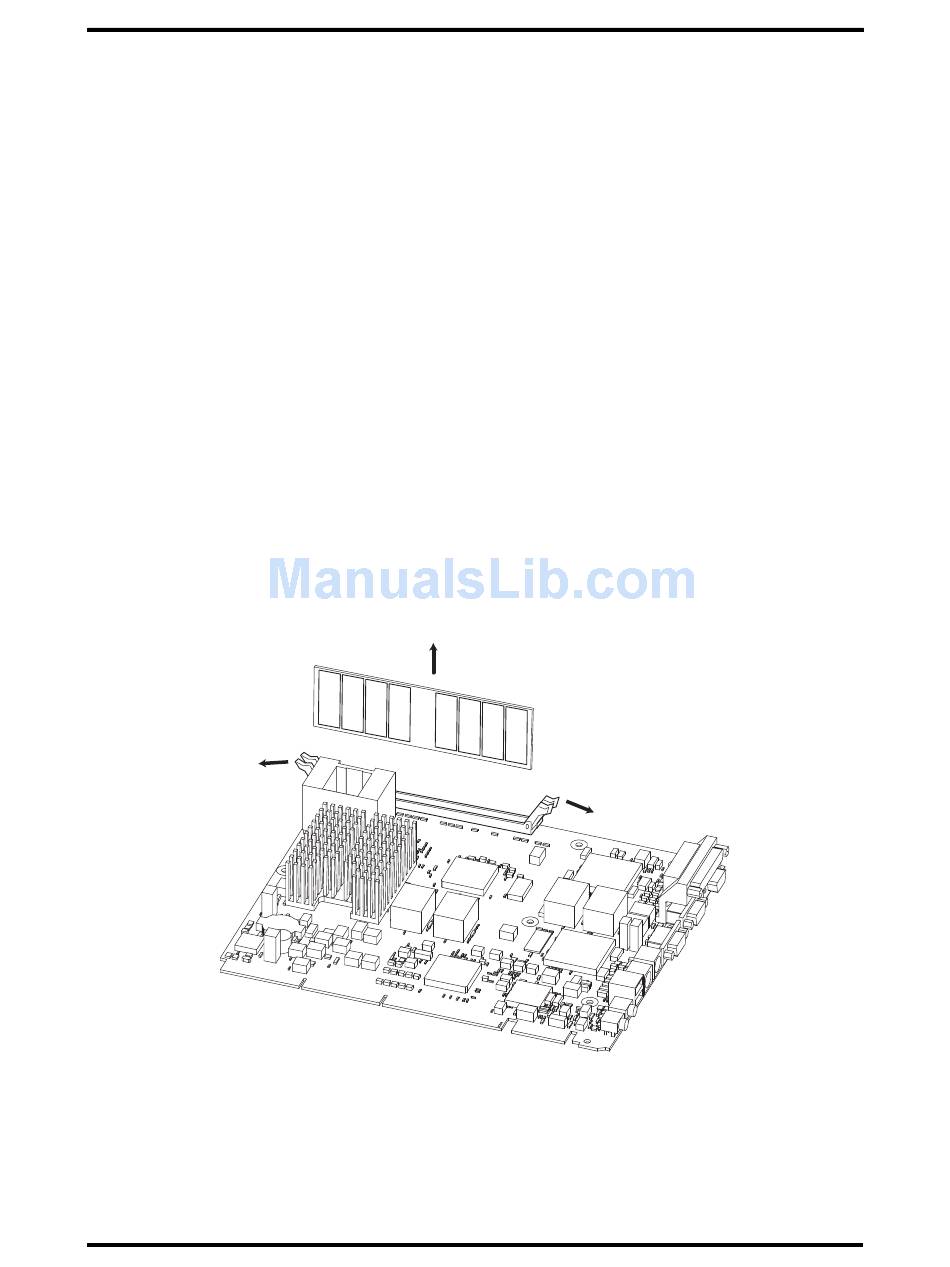

Figure 5-10 Removing a Memory Module (DIMM)
Disassembly and Reassembly 5-15
