5-22 Disassembly and Reassembly

Replacement

To replace the left and right side covers, proceed as follows:
1. Complete steps 1 and 4 in the previous subsection.
Insert the bottom edge of the side cover(s) into the bottom cover.
2.
Bow in the side cover(s) until the two locking tabs engage.
3.
4. Replace the system unit top cover (see "System Unit Top Cover").
5. Connect the power cord and monitor and peripheral cables.

Bottom Cover

This subsection describes how to remove and replace the bottom cover.

Removal

To remove the bottom cover, proceed as follows:
1. Turn off the system and disconnect the power cord and all peripheral cables
connected to the system.
Remove the system unit top cover (see "System Unit Top Cover").
2.
Remove the front bezel (see "Front Bezel").
3.

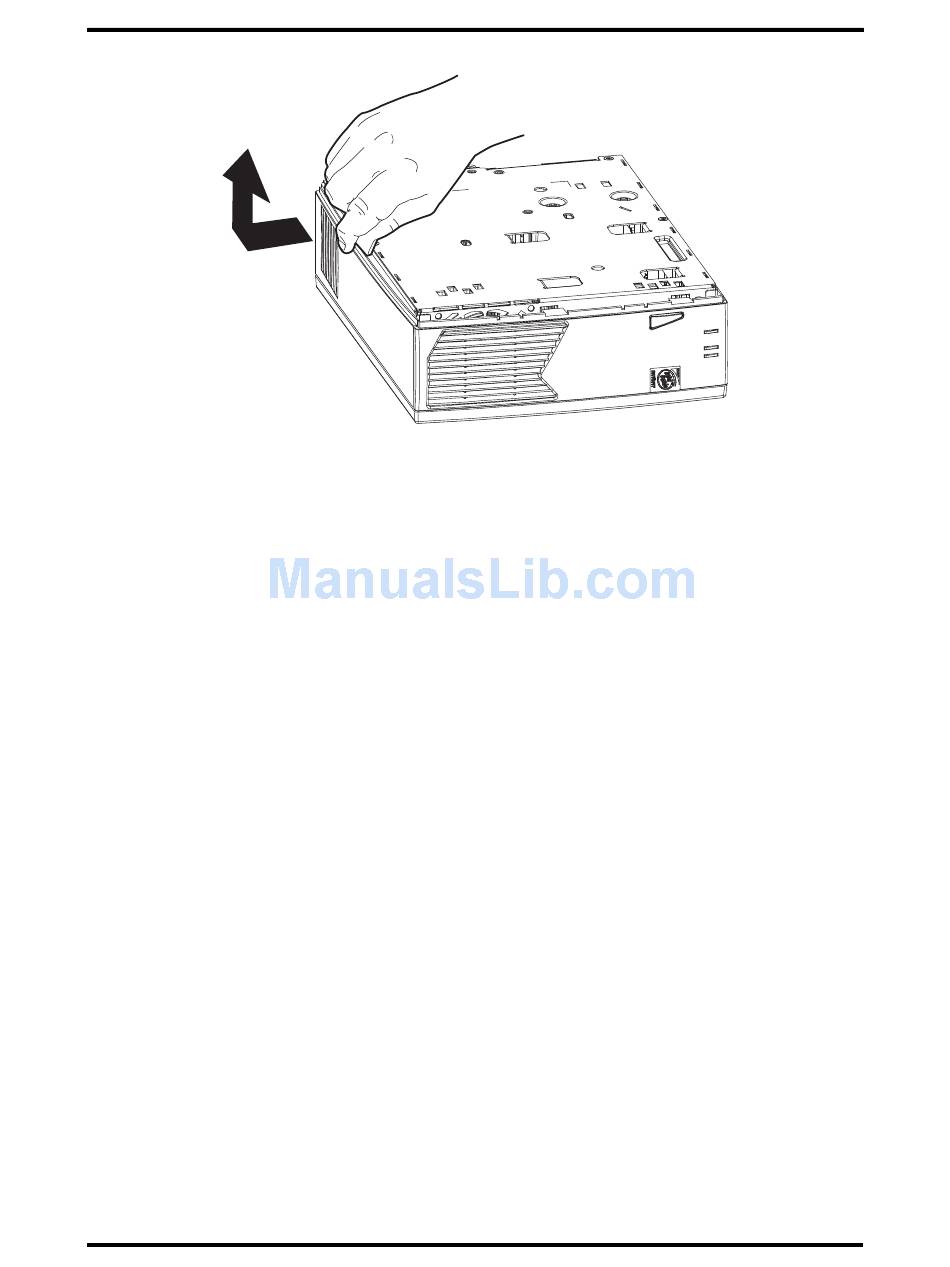

Figure 5-17 Removing the Side Covers
