You can obtain the BIOS Recovery program by downloading it to a diskette from the
NECCSD Bulletin Board System (BBS) or the NECCSD File Transfer Protocol (FTP) site.
See "NECCSD Bulletin Board System" in Section 4 for information on how to download
files onto a diskette. See "Internet" in Section 4 to access the NECCSD FTP site.
For additional information, see the instructions that are downloaded with the files onto the
diskette.

RISER CARD

The riser card contains a fan speed jumper and an on-board LAN enable/disable jumper. See
Figure B-3 for the location of the riser card jumpers.
-%
J3B1
1 2 3
MB LAN Disable
1-2 Enable (Default)
2-3 Disable
NOTE: For the configuration changes to take
effect after the BIOS Recovery procedure
finishes, turn off the computer, set the
configuration jumper to Normal Mode, and turn
on the computer.
INOP73000013 AA674849-400

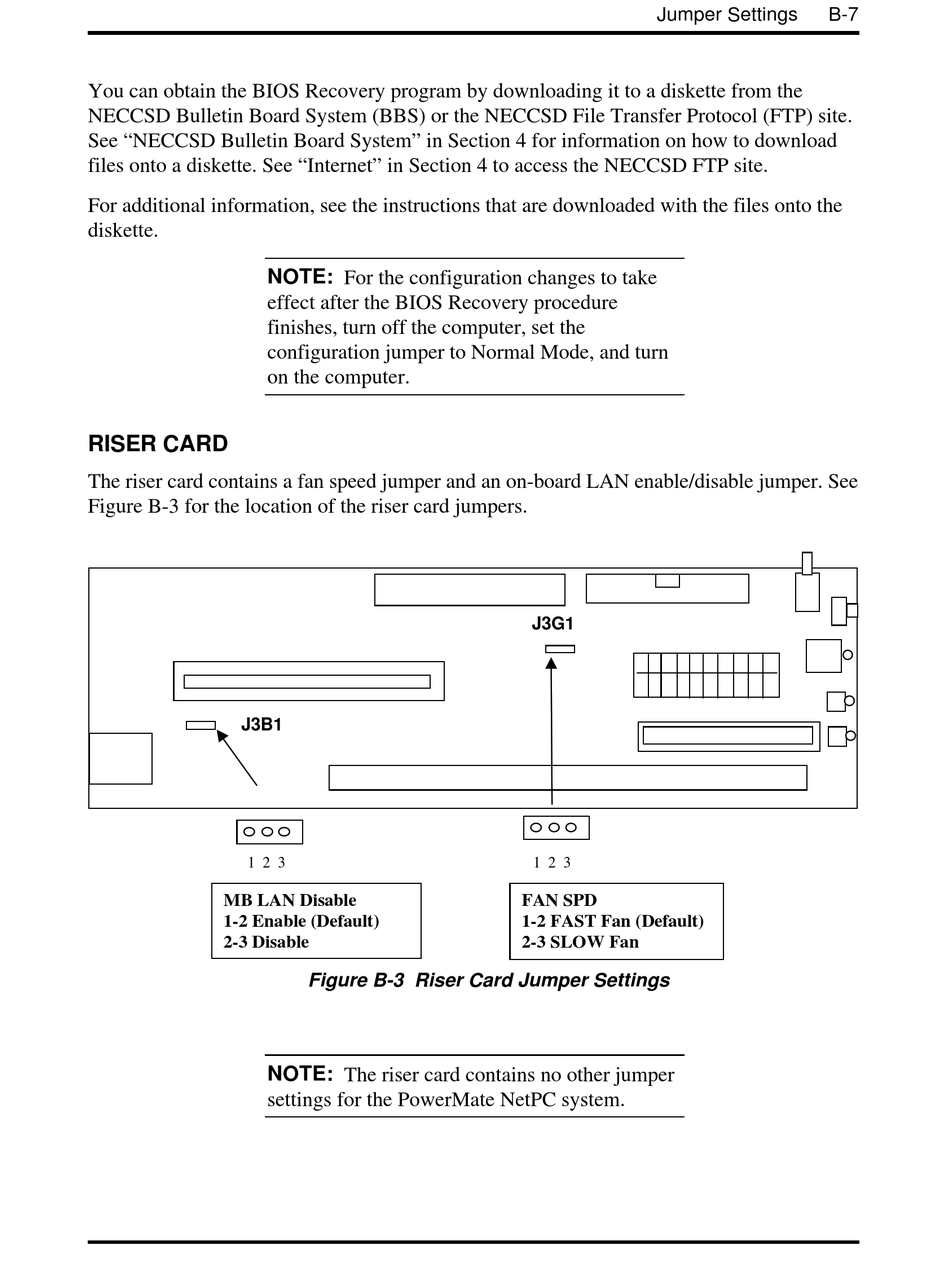

Figure B-3 Riser Card Jumper Settings
NOTE: The riser card contains no other jumper
settings for the PowerMate NetPC system.
Jumper Settings
J3G1
J3G1
1 2 3
FAN SPD
1-2 FAST Fan (Default)
2-3 SLOW Fan
B-7
