3-6
Option Installation
Expansion Board Installation
Install expansion boards in the system as follows.
1.
Remove the access cover.
2.
Follow any preinstallation instructions that come with the expansion board (such
as setting switches or jumpers on the board).
Remove the screw securing an expansion slot cover and remove the cover.
3.

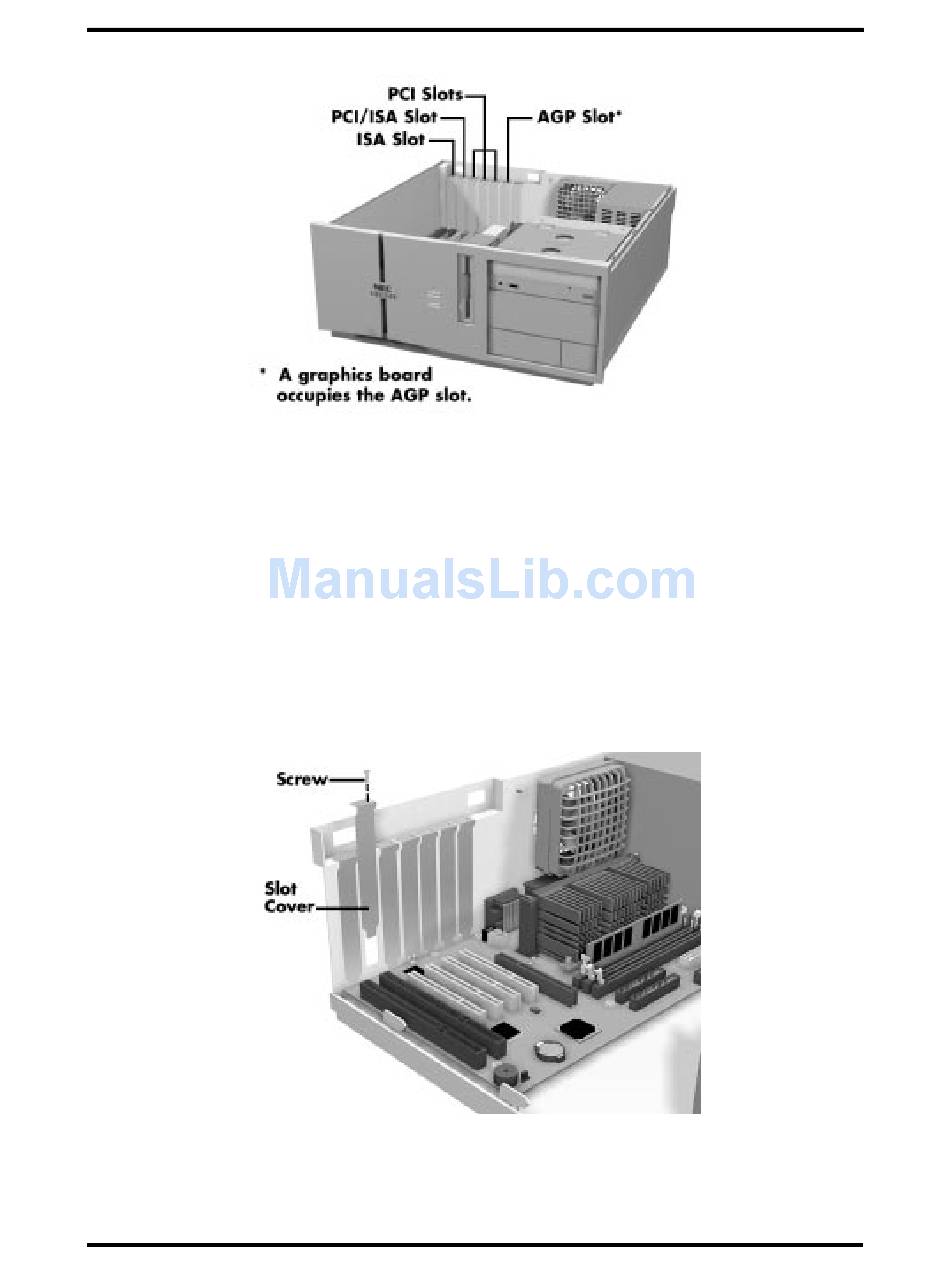

Figure 3-3 Locating Expansion Slots
Figure 3-4 Removing the Slot Cover
