Installing a 3 1/2-Inch Device

Use the following procedure to install a 3 1/2-inch device.
Follow the preinstallation instructions that came with the device, such as setting
1.
jumpers and switches.
Remove the access cover.
2.
3. Remove and label any cables that interfere with installing the device.
4. Remove the front panel (see the previous section).
Choose the slot for the device being installed (see Figure 3-17).
5.
T
If you are installing the device in the second 3 1/2-inch internal device slot:
Remove the two screws securing the 3 1/2-inch hard disk bracket to the
front of the system unit.

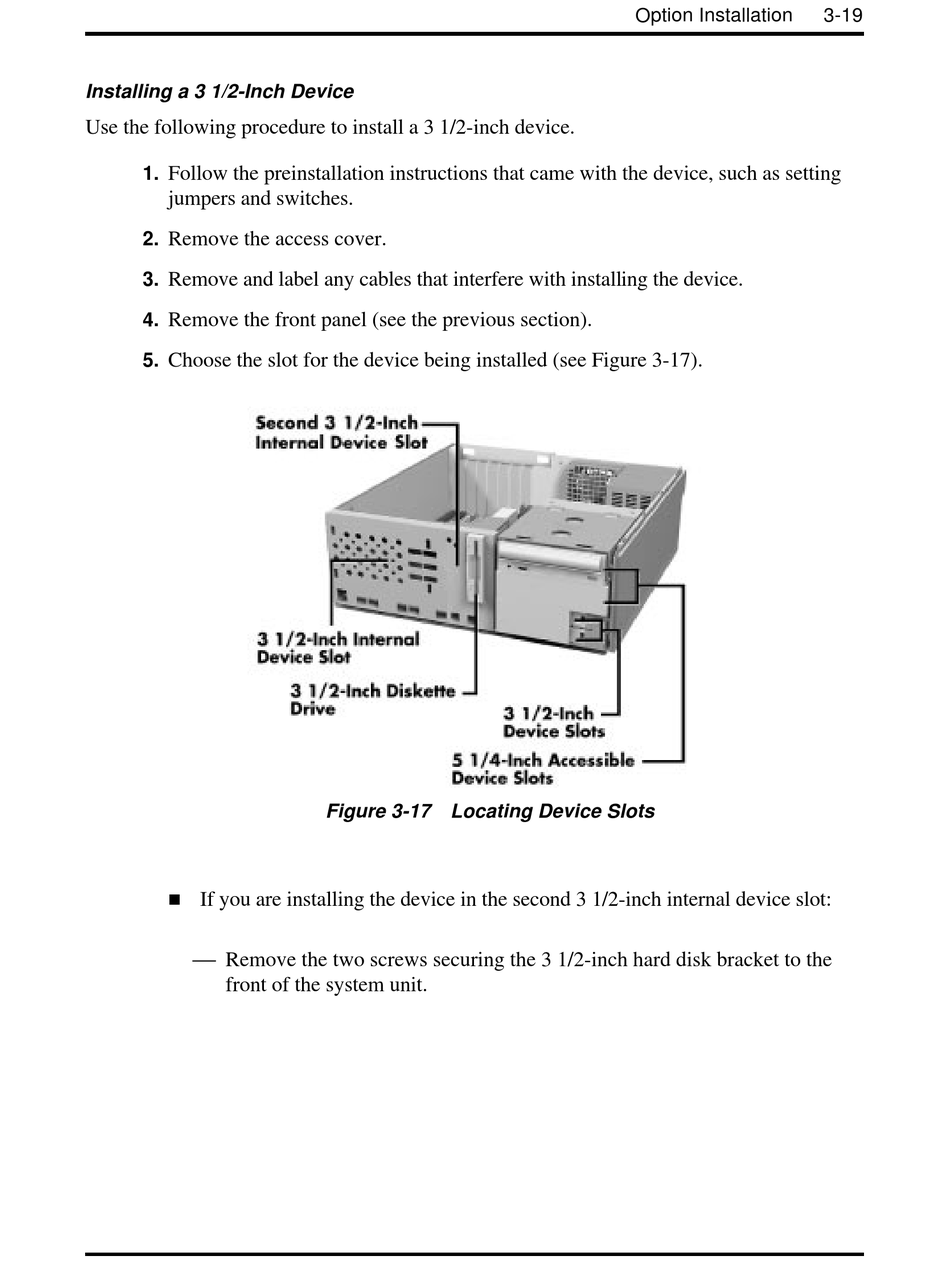

Figure 3-17 Locating Device Slots
Option Installation 3-19
