3-22 Option Installation
T
If you are installing a device in an accessible slot, go to step 6.
To install a 3 1/2-inch device in an accessible slot:
6.
T
Remove the plastic blank panel from the selected slot by pressing the panel tab
inward and swinging the blank panel out (see Figure 3-22).
T
Use a screw driver to remove the metal slot cover by carefully pressing it until
it breaks away from the chassis. Be careful of sharp edges!
T
Slide the device into the slot and secure the device.
Connect the device cables (see "Cabling an IDE Device").
7.
8. Replace the front panel.
9. Replace the access cover.

Installing a 5 1/4-Inch Device

Install an accessible device into the device slot as follows.
1. Follow the preinstallation instructions that came with the device, such as setting
jumpers and switches.

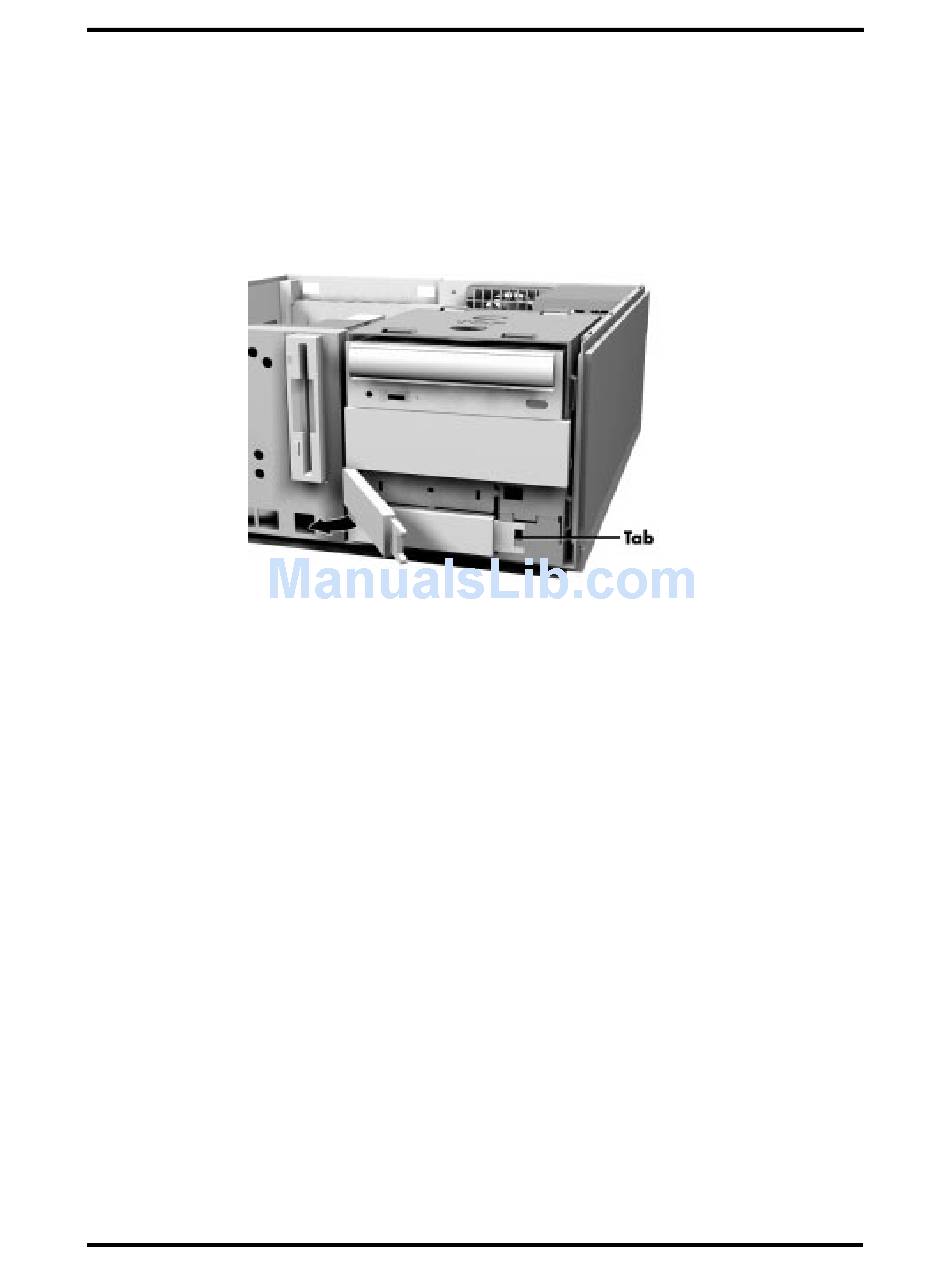

Figure 3-22 Removing the Blank Panel
