5-4 Disassembly and Reassembly

Side Panel Removal

Remove the side panel from the system unit as follows.
1. Remove the system access cover and front panel as previously described.
Locate the two side panel securing tabs at the front of the system.
2.
Pull the tabs out and away from the system.
3.
4. Slide the side panel towards the rear of the unit and away from the unit.

Device Cage Removal

Remove the device cage from the system unit as follows.
1. Label and disconnect any cables connected to devices in the device cage.
Locate the screw on the front of the system between the 3.5-inch blank panel and
2.
diskette drive (see Figure 5-3). Remove the screw.
3. Slide the cage towards the front of the system and lift it out of the unit.

Diskette Drive Removal

Remove the standard diskette drive from the system unit as follows.
1. Remove the system access cover and front panel as previously described.
2. Label and unplug the signal and power cables for the diskette drive.

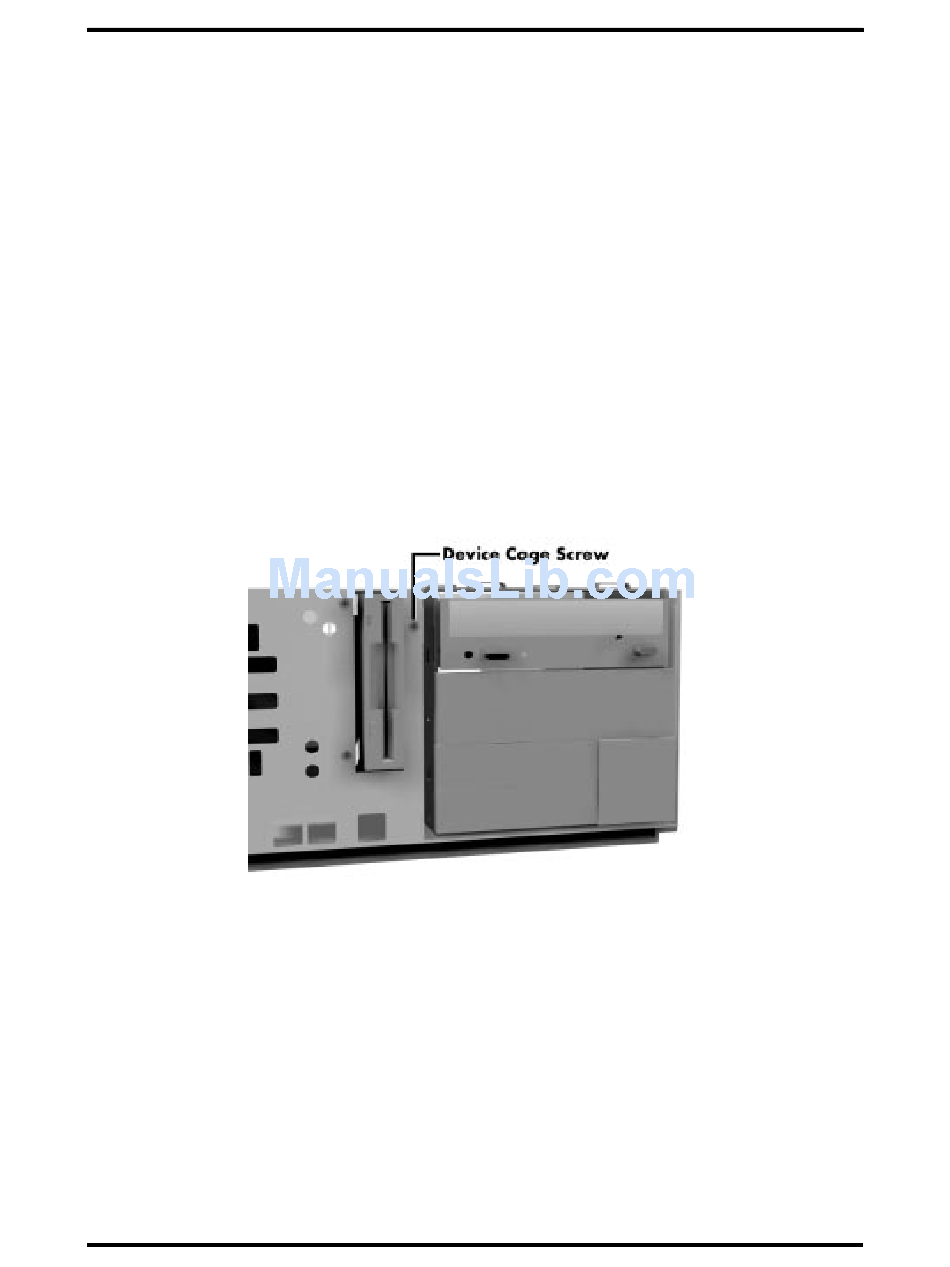

Figure 5-3 Locating the Device Cage Screw
