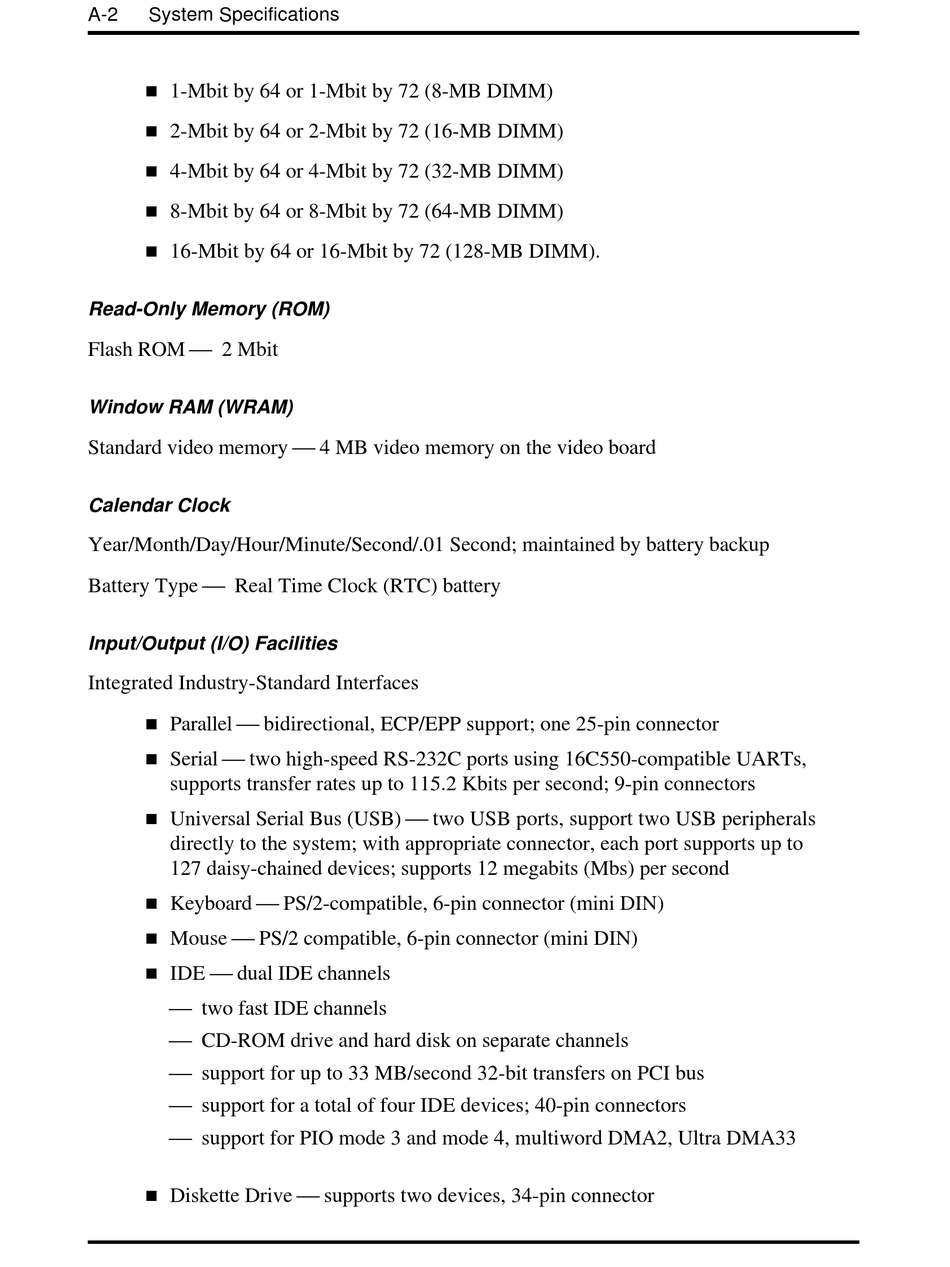

A-2 System Specifications
T
1-Mbit by 64 or 1-Mbit by 72 (8-MB DIMM)
T
2-Mbit by 64 or 2-Mbit by 72 (16-MB DIMM)
T
4-Mbit by 64 or 4-Mbit by 72 (32-MB DIMM)
T
8-Mbit by 64 or 8-Mbit by 72 (64-MB DIMM)
T
16-Mbit by 64 or 16-Mbit by 72 (128-MB DIMM).
Read-Only Memory (ROM)
Flash ROM 2 Mbit
Window RAM (WRAM)
Standard video memory
Calendar Clock
Year/Month/Day/Hour/Minute/Second/.01 Second; maintained by battery backup
Battery Type Real Time Clock (RTC) battery
Input/Output (I/O) Facilities
Integrated Industry-Standard Interfaces
T
Parallel bidirectional, ECP/EPP support; one 25-pin connector
T
Serial two high-speed RS-232C ports using 16C550-compatible UARTs,
supports transfer rates up to 115.2 Kbits per second; 9-pin connectors
T
Universal Serial Bus (USB)
directly to the system; with appropriate connector, each port supports up to
127 daisy-chained devices; supports 12 megabits (Mbs) per second
T
Keyboard
T
Mouse PS/2 compatible, 6-pin connector (mini DIN)
T
IDE dual IDE channels
two fast IDE channels
CD-ROM drive and hard disk on separate channels
support for up to 33 MB/second 32-bit transfers on PCI bus
support for a total of four IDE devices; 40-pin connectors
support for PIO mode 3 and mode 4, multiword DMA2, Ultra DMA33
T
Diskette Drive
4 MB video memory on the video board
two USB ports, support two USB peripherals
PS/2-compatible, 6-pin connector (mini DIN)
supports two devices, 34-pin connector
