3-12 Option Installation

Device Slots

Your computer has seven storage device slots:
T
a 3.5-inch accessible device slot (contains the standard 1.44-MB diskette drive)
T
two internal 3.5-inch hard drive slots (one contains the hard drive)
T
four accessible device slots
two accessible 5.25-inch device slots (one contains the standard CD-ROM
drive)
two 3.5-inch device slots; the lower 3.5-inch slot is not accessible on the
desktop model.
Figure 3-8 shows the device slot locations in the system.

Device Preparation

Before installing a storage device in the system, follow any preinstallation instructions that
come with the device. For example, check the following:
T
Diskette drive
See the documentation that comes with the drive.
T
IDE device
documentation that comes with the device for jumper setting information.

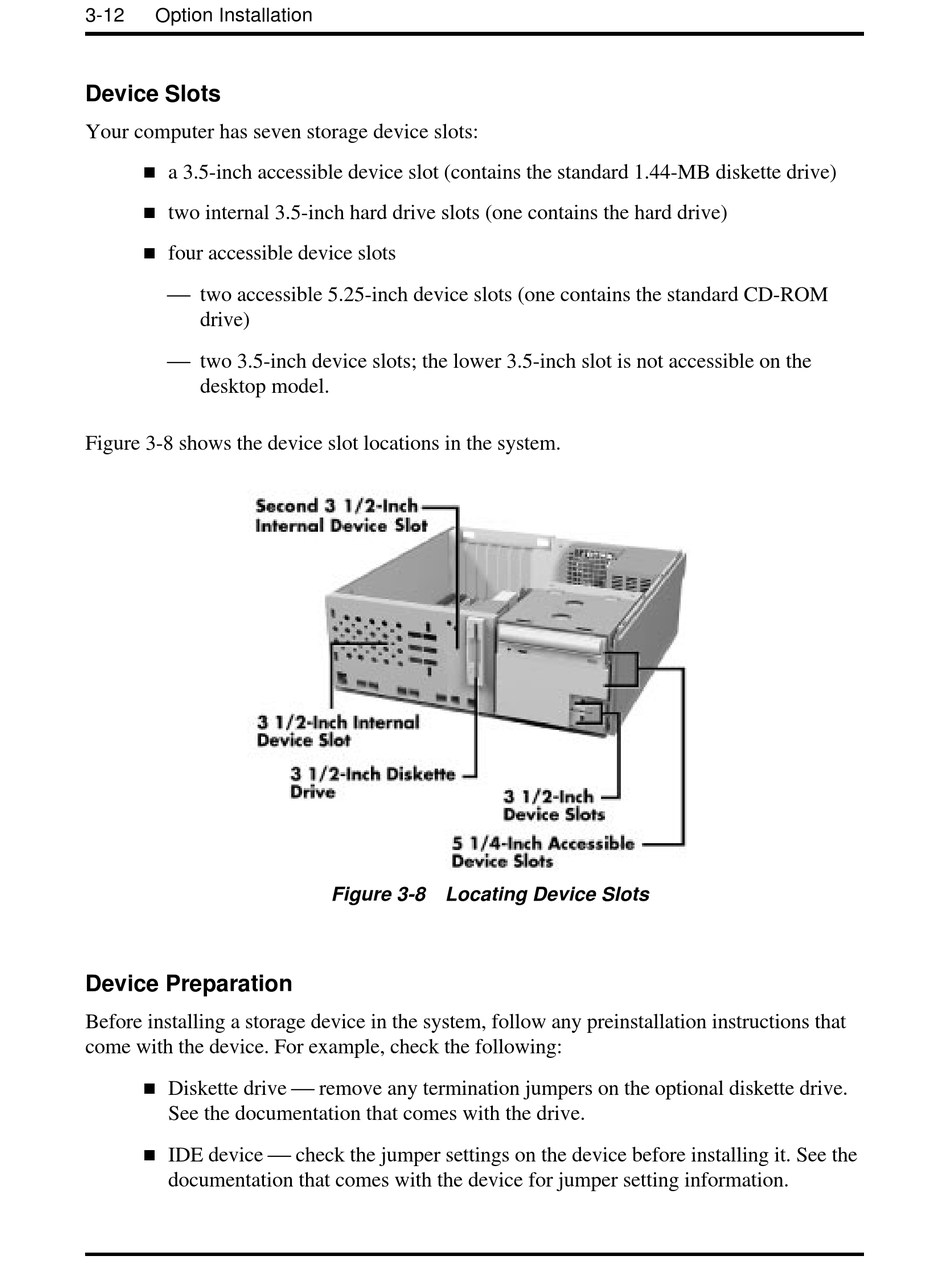

Figure 3-8 Locating Device Slots

remove any termination jumpers on the optional diskette drive.
check the jumper settings on the device before installing it. See the
