2-2 Setup Utility
T
to customize the system with security features such as passwords.
T
to set system parameters after replacing the CMOS battery.

HOW TO START SETUP

To start the Setup utility, follow these steps:
Turn on or reboot the system.
1.
2. Press F2 after POST begins, but before the system boots up. You have about five
seconds to press F2.

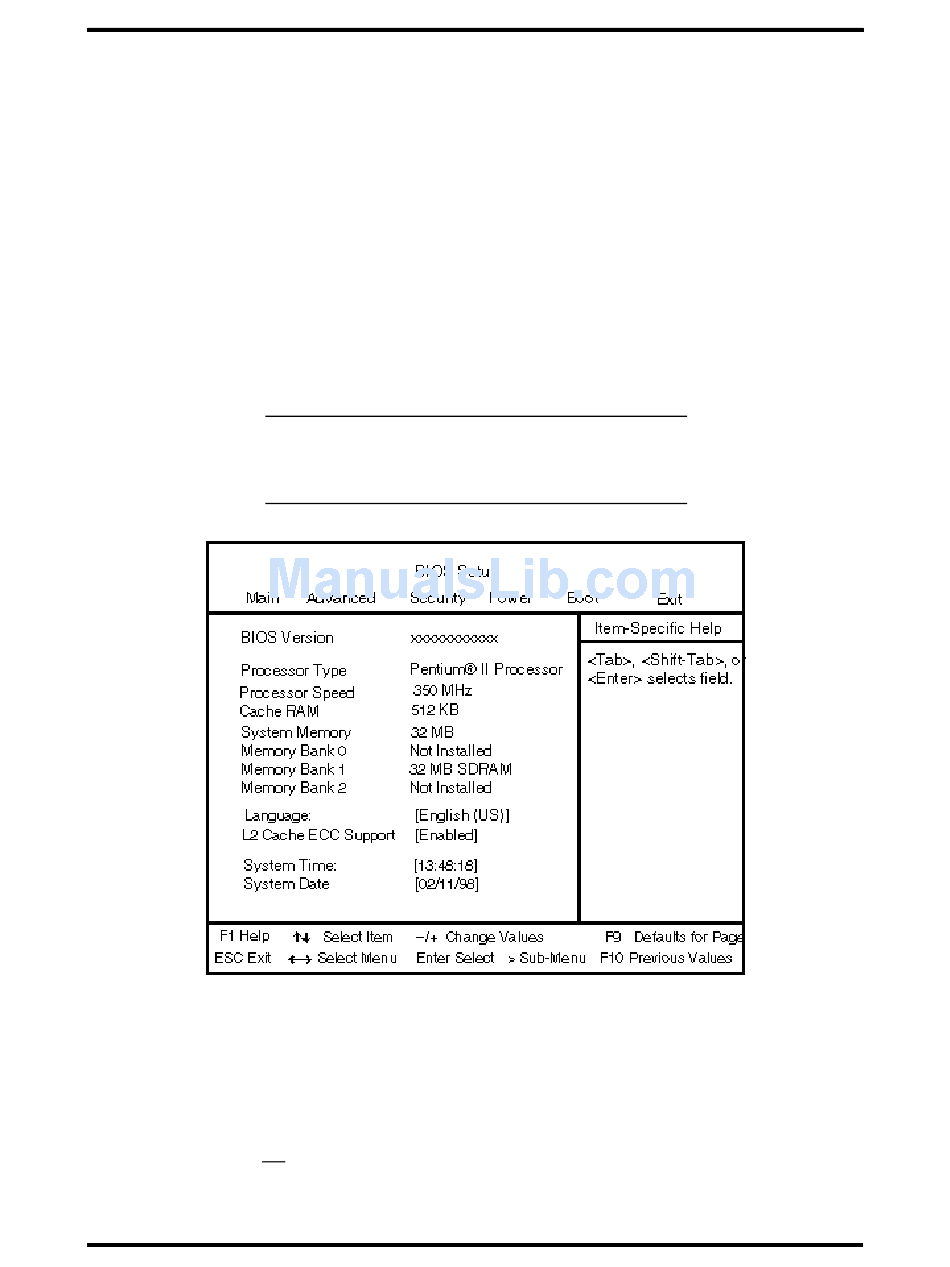

Setup's Main Menu window appears similar to the following screen.

HOW TO USE SETUP

The Setup utility has a Main Menu window and six top-level menus with submenus.
The Main Menu window contains the following areas:
T
A title line
name and copyright message.
NOTE: The screen shown is typical of a system.
The actual settings on the Main Menu depend
upon the hardware installed in the system.
the top line of the Main Menu. This line displays the Setup utility
