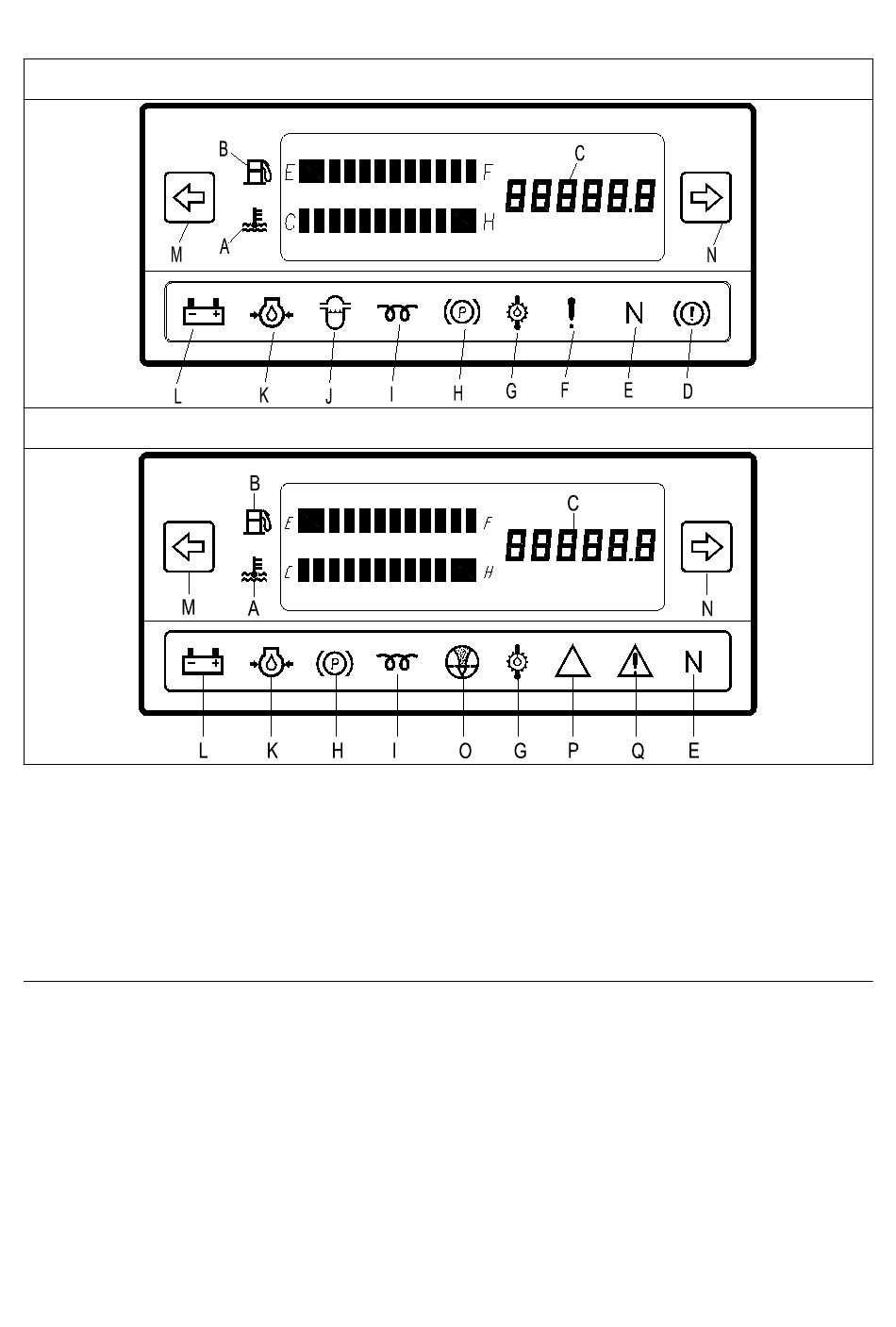

1.Instrument
A. Water temperature gauge B. Fuel gauge
E. Neutral start indicator
light
I. Preheat indicator light
M. Left steering indicator
light
Q. Fault indicator light
CPCD25/30/35-XW33E-RT
CPCD25/30/35-XW43E-RT
F. OPS indicator light
J. Oil-water separator
indicator light
N. Right steering indicator
light
C. Stopwatch
G. Gearbox oil temperature
alarm light
K. Engine oil pressure alarm
indicator light
O. Air cleaner alarm
indicator light
D. Accumulator alarm
indicator light
H. Parking indicator light
L. Charging indicator light
P. Major fault indicator light
