HANGCHA CPCD15 Operation And Maintenance Manual page 38

current fault information, the (ADDRESS) "00"
indicates the engine and "03" indicates the
transmission. Identify the engine fault or
transmission fault based on the "ADDRESS" data
and then find the fault code and information
based on the specific SPN and FMI number.

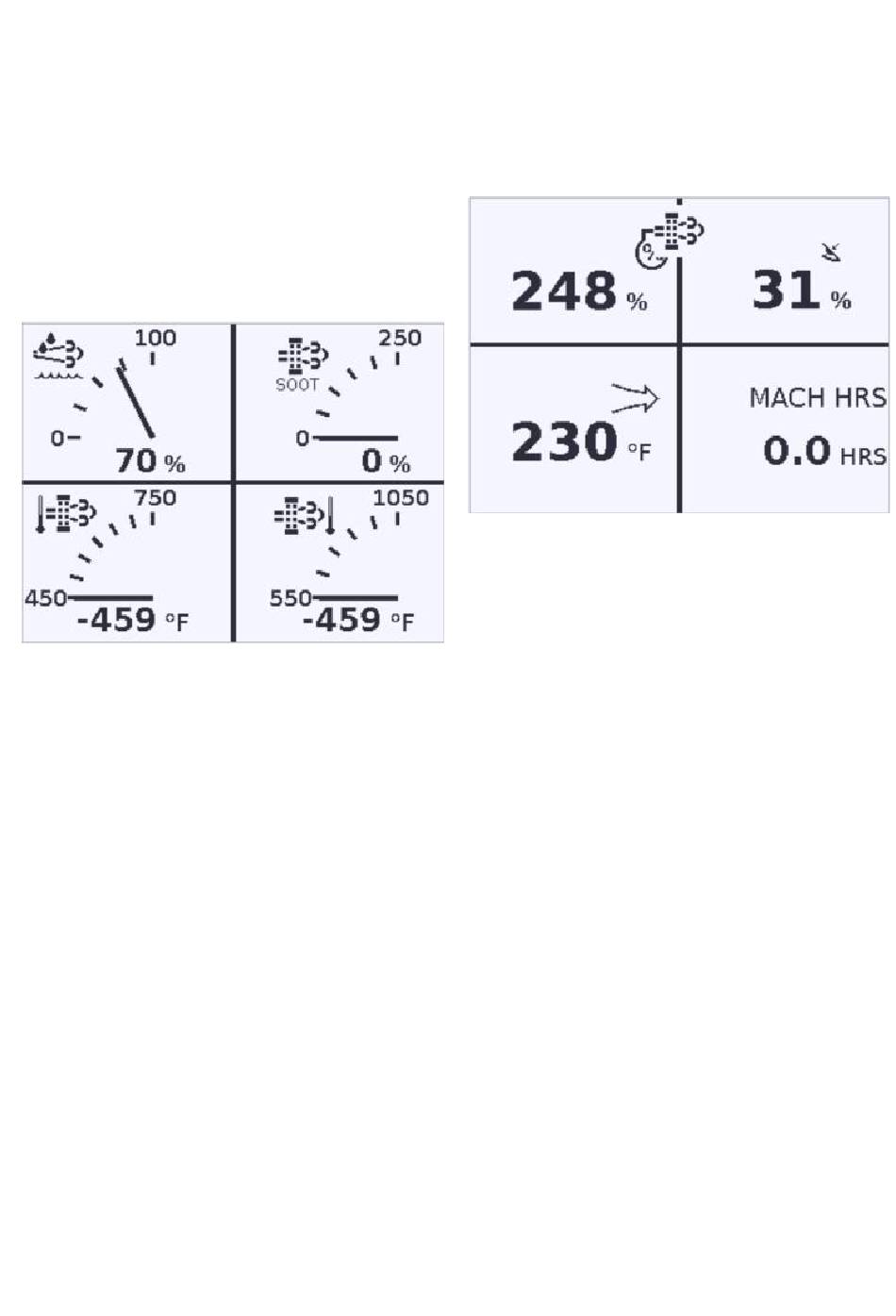

2.4 Select "Next Page" which will be displayed
in the following figure:
The engine catalyst level is displayed on the
upper left part of the page.
Ratio of the emission concentration to the load
34
is displayed on the upper right part of the page.
Exhaust filter inlet temperature is displayed on
the lower left part of the page.
Exhaust filter outlet temperature is displayed on
the lower right part of the page.
Select "Next Page" which will be displayed in
the following figure:
Engine load percentage at current speed is
displayed on the upper left part of the page.
Engine accelerator pedal position is displayed on
the upper right part of the page.
Engine air inlet temperature is displayed on the
lower left part of the page.
Instrument working time is displayed on the
lower right part of the page.
