Load center distance mm (in)
Model
Rated load lifting capacity kg/ lb
Model
Rated load lifting capacity kg/ lb
Load center distance mm (in)
Model
Rated load lifting capacity kg/ lb
Model
Rated load lifting capacity kg/ lb
CE model: Optional lift height: 6000 mm
Caution
The chart shows the relationship between the location of
the load center distance and the maximum load. Check
whether the load and the load center distance are within
the allowable range of the Bearing Capacity Chart before
loading. If the load shape is complicated, the heaviest
part should be placed in the center of the fork and close
to the load-backrest.
Note: The model tonnage number displayed below is calculated at a load center distance
of 500mm.
©
Aug 2023, HANGCHA GROUP CO., LTD.
Standard configuration model
CPCD15-
1500(3300) 1750(3850)
CPCD35-
3500(7700)
CPCD15-
1350(3000) 1600(3500)
CPCD35-
3200(7000)

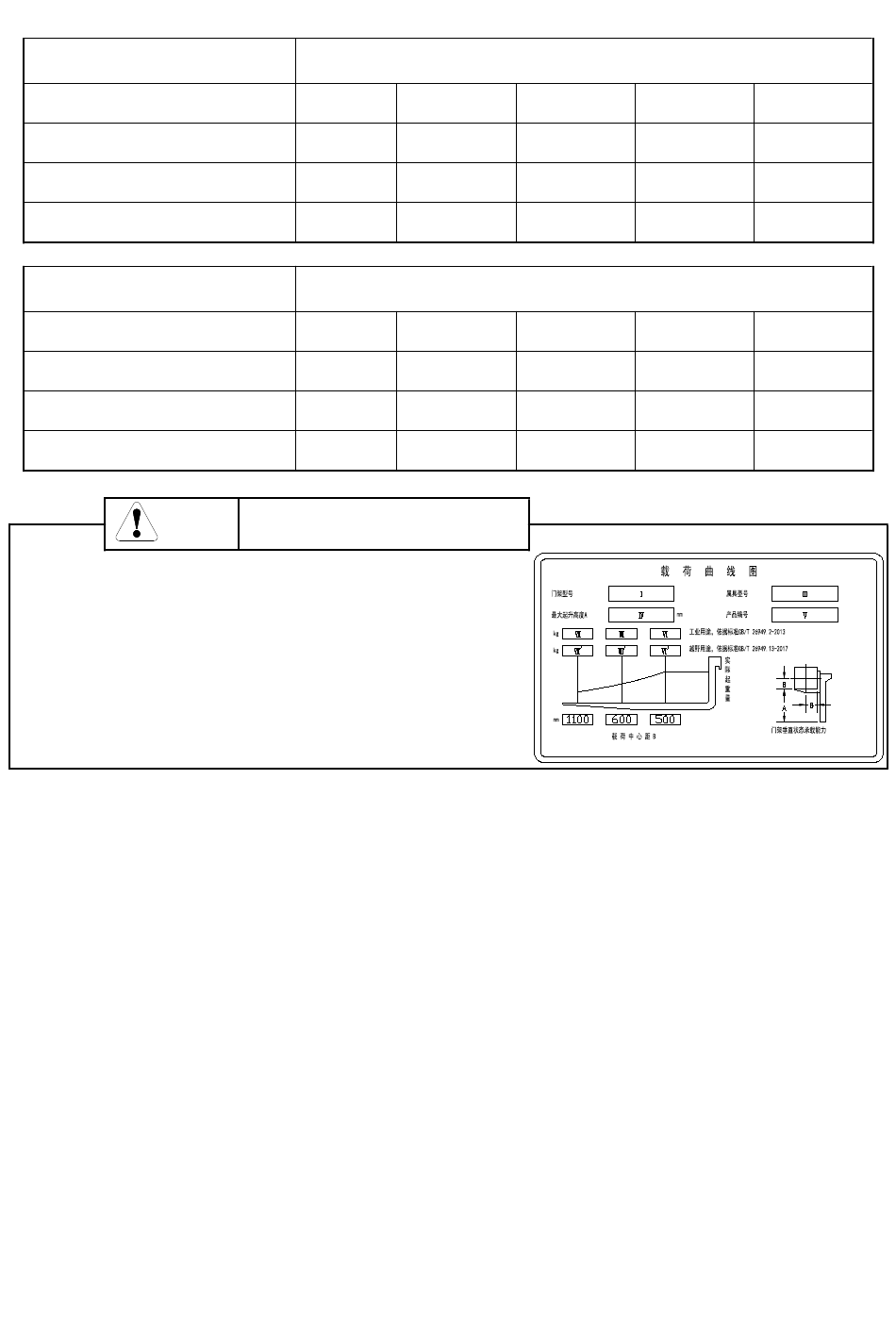

Bearing Capacity Chart
500(19.7)
CPCD18- CPCD20-
2000(4400)
600(23.6)
CPCD18- CPCD20-
1800(4000)
CPCD25- CPCD30-
2500(5500) 3000(6600)
CPCD25- CPCD30-
2250(5000) 2700(6000)
CPCD50-
5000(11000)
