HANGCHA A Series Operation And Maintenance Manual
  1. Manuals
  2. Brands
  3. HANGCHA Manuals
  4. Forklifts
  5. A Series
  6. Operation and maintenance manual

HANGCHA A Series Operation And Maintenance Manual

Initial lifting pallet stacker
Hide thumbs Also See for A Series:

Advertisement

Quick Links

Download this manual

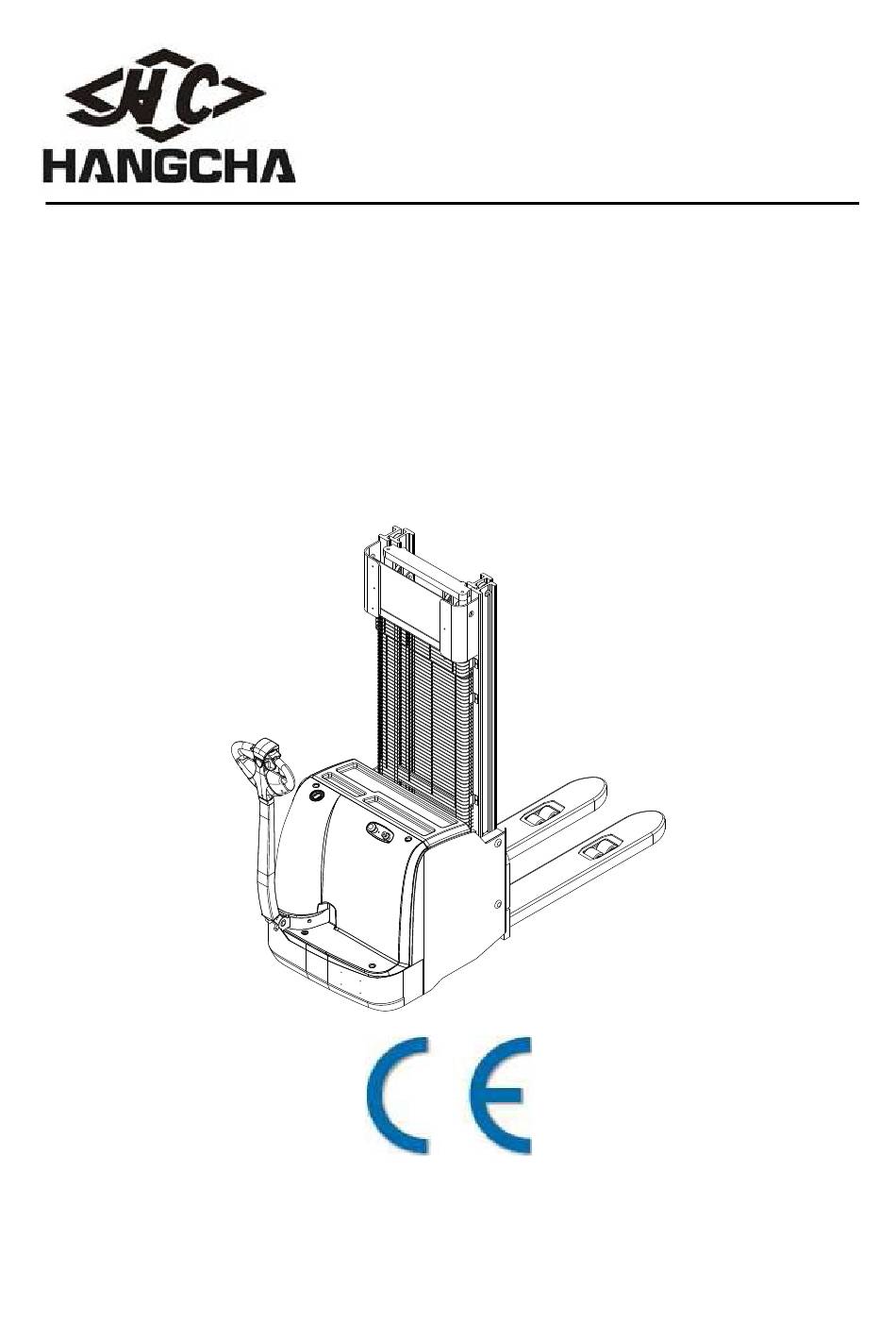

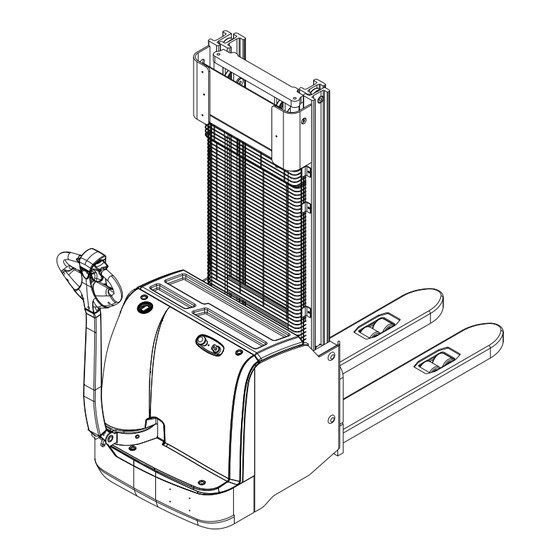

Initial lifting pallet stacker
OPERATION AND MAINTENANCE MANUAL
Original Instruction
HANGCHA GROUP CO., LTD.
11/2022
A
Series
CDD12/14/16-AC1-L
CDD12/14/16-AC1-LI
CDD12/14/16-AZ3-L
CDD12/14/16-AZ3-LI
CDD12/14/16-AC2-L
CDD12/14/16-AC2-LI
