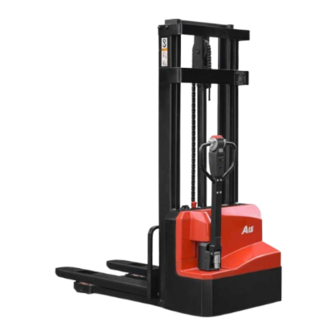

- Page 1 Mini Range CDD12/15-A2MJ-SZ ELECTRIC STACKER CDD12/15-A2MJS-SZ CDD12/15-A2MJ-SZD CDD12/15-A2MJS-SZD CDD12/15-A2MJ-ISZ CDD12/15-A2MJS-ISZ OPERATION AND MAINTENANCE MANUAL Original Instruction HANGCHA GROUP CO., LTD. 7/2020...
- Page 2 FOREWORD Thank you very much for purchasing the A series mini range electric stacker of Hangcha Group . The A series 1.2 and 1.5 tons mini second-generation stacker trucks are a new generation of products developed by Hangcha for warehousing and logistics applications. They adopt the latest permanent magnet drive technology, have advanced performance, comfortable operation, safe and reliable, and low maintenance costs.
-
Page 3: Table Of Contents
Content Part Ⅰ：Operation and Maintenance ..................1 Notice for use .......................... 1 1.1 General ............................ 1 1.2 Use as required ........................1 1.3 Normal service condition ......................2 1.4 Attachment installation or modification to the truck ..............3 Truck Introduction ........................4 2.1 General ............................ - Page 4 Maintenance .......................... 37 9.1 Maintenance general ......................37 9.2 Periodic maintenance schedule..................... 38 9.3 Truck used oil and lubrication ....................43 9.4 Replace hydraulic oil......................44 9.5 Replace wheels ........................45 9.5.1 Replace drive wheel ......................45 9.5.2 Replace load wheels ......................46 9.5.3 Replace auxiliary wheel ................
-
Page 5: Part Ⅰ：operation And Maintenance
Part Ⅰ：Operation and Maintenance Notice for use 1.1 General Truck in this manual is only for lifting and transporting loads. It must be used, operated and maintained according to the information in this manual. Any other uses are outside the design envelope and can lead to injury to persons or damage to equipment and property. -
Page 6: Normal Service Condition
1.3 Normal service condition Truck use occasion and specified conditions： – Used in specified area as factory, tourist attraction and recreation place. – Used on the flat ground, that is fixed and owns enough carrying capacity(protect operation and lifting). – It's prohibited to operate across the raised or hollow as the small wheel diameter may easily cause truck tipping over. -
Page 7: Attachment Installation Or Modification To The Truck
1.4 Attachment installation or modification to the truck Without authorization by the manufacturer, it is not allowed to modify the truck privately. The mounting or installation of any attachments which will interfere with, or supplement, the functions of the truck is permitted only after written approval by the manufacturer has been obtained. -
Page 8: Truck Introduction
Truck Introduction 2.1 General A series mini range electric stacker described in this manual should work under low working strength and its continuous working time should not surpass one hour. Users can get relevant information as rated load from the product model. Model CDD10-AMC1-B/SZ as an example: CDD10-AMC1-B/SZ Mode... - Page 9 appearance, full consideration of ergonomics, and conforms to the latest appearance design trends. – A large number of steel plate stamping and injection molding processes are used, which are durable, high-grade, and meet environmental protection requirements. High performance – Strong power, with a load of 1.2t/1.5t, which can meet the handling needs of most customers.Permanent-magnetic drive motor owns excellent performance.
- Page 10 improve the service life of the bearing wheel – The frame is a high-strength steel plate frame structure with a large remaining load capacity and a long service life. – Using a four-point design, the driving wheel load distribution is reasonable, the wheels have good grip, while ensuring excellent stability and visibility.
-
Page 11: Main Part Introduction
2.2 Main part introduction Item Description Item Description Control handle Upper cover Charging power cord harness port Fork Emergency stop switch Load wheel Charging indicator Mast Frame Lifting cylinder... -
Page 12: Display And Control
2.3 Display and control Item Description Item Description 11 Belly switch 15 Horn 12 Forward and backward switch 16 Fork down button 13 password keyboard 17 Fork lifting button 14 Electricity meter Electricity meter display function Power display: ten levels display the percentage of remaining power; Power shortage reminder: flashing reminder when there is 15% remaining power, the frequency is 1 time/second;... - Page 13 Password lock function introduction: 1, 2, 3, 4 are the password setting keys, which can be used repeatedly, the password is 4 digits, and 16 groups of startup passwords can be set; Two red and green LED indicators. Password lock function code description ...
- Page 14 6) To exit the current function operation, press the cancel button, the red indicator light flashes twice; Warning: User password cannot be repeated; Delete a user 1) When the vehicle is powered off, enter the administrator password and press "OK", the red indicator light keeps flashing;...
-
Page 15: Standard Technical Data
2.4 Standard technical data The following technical data are all standard data. Our company reserves the right of alteration and extension. CDD12-A2MJ-SZ CDD15-A2MJ-SZ CDD12-A2MA-SZ CDD15-A2MA-SZ Model CDD12-A2MJ-SZD CDD15-A2MJ-SZD CDD12-A2MA-SZD CDD15-A2MA-SZD Operator type Pedestrian Pedestrian Pedestrian Pedestrian Load capacity Q (kg) 1200 1500 1200... - Page 16 Mast configuration table Max. load Max Lifting Ground Lowered Extended (Load center at 600mm) Mast type height clearance,fork Height Height Free lift (h3+h13) 1.2t 1.5t 2000 2085 1574 2574 1200 1500 2500 2585 1824 3074 1200 1200 Single 2700 2785 1924 3274 1000...
-
Page 17: Product Plates And Warning Labels Location
2.5 Product plates and warning labels location Plates and labels, such as nameplate, load curve plate, warning labels must be legible, if identification is unclear, and must be replaced. The figure below shows the approximate location of the various identity resides. Before operating the truck, please understand the meaning of the various identities. - Page 18 Item Description Walking upright label. Please power off when charging! Emergency stop label: Press this button in an emergency to cut off the main power of the vehicle. Hazard label: Be careful of your hands! Series tonnage label: A series, rated lifting capacity is X×100kg Manufacturer logo Product nameplate: The rated lifting capacity indicated on the nameplate is the maximum weight of goods that the forklift can load and unload under the equipment...
-
Page 19: Safety Instructions
the battery when checking. Safety Instructions – Be careful of scald when checking motor Only trained and authorized operator and controller. shall be permitted to operate the truck. controller equips with energy accumulator, do not touch between B+ and B- to avoid electric injury. If you need check or clean the controller, connect load(like contactor coil or horn bulb... - Page 20 12) Goods are not allowed to deviate the fork center, when goods is deviating the fork center, turn or pass uneven road, you are easily to fall. Meanwhile, possibility of turnover will increase. Internal battery may generate explosive gas, it’s prohibited any flame close the battery.
- Page 21 18) It’s forbidden to put the head, hand, foot 23) Fire extinguisher shall be equipped at or body into the space between the the work site. Users can choose truck chassis and lifting component, once equipped with fire extinguisher. Driver clipped, it is dangerous to your life.
-
Page 22: Transport
Transport The forklift truck is designed for short-distance lifting,lowering and transporting load units, not suitable for long-distance travel. If needed, the forklift truck must be transported by using lifting device or platform to place on truck or trailer. 4.1 Lifting by crane WARNING ... -
Page 23: Securing The Truck During Transport
Securing the truck during transport Correctly fix the forklift truck to avoid move when using truck or trailer. Procedure: – Park the truck securely. – Sling the tensioning belt around the truck and attach it to the fastening rings of the transporting vehicle. -
Page 24: How To Remove A Broken Truck
How to remove a broken truck It’s not allowed to tow the forklift truck on the ground directly when the truck is broken down or damaged since the brake of the truck is closed under normal circumstances. Appropriate vehicles should be used to remove the broken trucks. WARNING ... -
Page 25: Battery
Battery The truck equips with two maintenance-free colloidal batteries. When the battery temperature reaches 25℃～30℃, its service life is the longest. Lower temperature reduces battery available capacity and higher temperature shortens battery service life. Per battery weighs about 25kg. 5.1 Safe operation rules for battery use –... - Page 26 For instance, the maximum starting current should not exceed 87.5Ah for a battery with 70Ah rated capacity. Do not operate a truck when the working current is far higher than its rated capacity, or else it would shorten the endurance of the truck and the service life of the battery as well.
-
Page 27: Battery Charging
5.3 Battery charging That is, during truck operation the battery discharge process, the battery over-discharge is prohibited. After the truck is running, it is timely to charge the battery. WARNING The truck comes with charger, the charger charging power supply must be single-phase power frequency AC power.It’s prohibited to use DC, AC two phase/three phase and other non single phase AC to charge the battery. -
Page 28: Check Charging State
5.3.3 Check charging state During charging, in order to well know the battery charging state, do the following operation： – Pull up emergency stop switch. Switch the key switch to “ON” position and start the truck. – – Check battery capacity through instrument. –... -
Page 29: Replacing Battery
5.4 Replacing battery 操作步骤： –Park the vehicle safely as required. –Remove the fixing bolts and open the hood. –Unplug the wiring harness from the battery. –Remove the battery fixing device bolts. –Take out the fixing plate in the direction shown in the figure. –Remove the remaining fixing plate to take out the battery The installation process is opposite to the removal process WARNING... -
Page 30: New Truck Breaking-In
New truck breaking-in We recommended operating the truck under light load conditions for the first stage of operation to get the most from it. Especially the requirements given below should be observed while the truck is in a stage of 100 hours of operation： –... -
Page 31: Operation
Operation 7.1 Check before operation In order for the safety truck operation and keep the truck in good condition, before starting the truck, you must check it carefully. Close the hood Oil leak and liquid leak check Battery check Park the truck, and check the truck for –... - Page 32 When the truck run forward or backward, etc. push the handle to vertical position or press to level position to check the brake condition. 11) Steering system Left or right turn the handle to make the truck run around 3 turns, and then check if the steering system is normal.
-
Page 33: Start Up
7.2 Start up Procedure: – Carry out check before operation and make sure each function and state is normal. – Pull up the emergency stop switch (3). – Enter the correct password at the handle password keyboard (1) and press the OK button. Truck goes into running state. -
Page 34: Travelling
7.3 Travelling Driver should walk in front of the truck and keep at the side front of the truck when travelling. One hand holds the handle, and operate travel switch with thumb. Always watch moving direction and guide the truck.Or hold the handle with both hands and push the truck go forward. CAUTION ... - Page 35 WARNING No turn, inclines when going uphill and downhill. Never park on the slope. Slow down when going downhill and ready for braking. Travel according to regulated route. The road should keep clean, no slipping. ...
-
Page 36: Braking
7.4 Braking When the thumb off the direction speed control button, pull the handle to braking range (B1 or B2) position or vertical position, the truck brakes. CAUTION When release the control handle, the handle swivel into the braking range slowly or nor enter braking range, do check the reason and eliminate the fault. -
Page 37: Unloading
– Raise the loads several centimeters to make sure if the loads are firm. – Travel the truck off the area. – Drop the load to lower position. 7.8 Unloading Procedure: – Approach the deposit area. – Raise the loads to correct height. - Page 38 – Travel forward, put the load on the unloading position and then stop. – Make sure the loads are right above, drop the forks slowly until the forks are out of the load. – Travel backward and make the fork out of the load. –...
-
Page 39: Parking
7.9 Parking Procedure: – Drive the truck to safe area or appointed area. – Fully lower the forks. – Press the emergency stop switch (3). -
Page 40: Deposit The Truck For Long Time
Deposit the truck for long time 8.1 Deposit for long time – Fully check the truck, especially check the wheel damage. – Check fluid oil for leakage. – Apply lubrication grease. – Check the joint face of cylinder piston rod for looseness, and if scratch on the piston rod surface. -
Page 41: Maintenance
– solve it in time. – Use authentic parts of Hangcha Group. Don’t use different oil when changing or adding oil. Don’t rave about oil and electrolyte used – at will, and carry on handling according to the local environmental protection laws and regulations. -
Page 42: Periodic Maintenance Schedule
9.2 Periodic maintenance schedule D= work every 8 hours(or per day) W= work every 40 hours(or per week) M= work every166 hours(or per month) T= work every 500 hours(or 3 months) S= work every 1000 hours(or 6 months) 〇 —Check, revise, adjust ×... - Page 43 Motor Service Tool Service required item Clean the foreign body on the motor 〇 〇 〇 〇 Clean or replace the bearing 〇 Check carbon brush 〇 〇or× 〇or× commutator worn, whether spring is normal Whether the connection is correct 〇...
- Page 44 Brake system Service Service required Tool item Check for brake condition when the 〇 〇 〇 〇 〇 control handle on horizontal position and vertical position. Check inching switch 〇 〇 〇 looseness or damage. 〇 〇 〇 Check the installation for fastening. Check the surface abrasion for 〇...
- Page 45 Lifting assy Service Service required Tool item Check chain for tension, damage or 〇 〇 〇 〇 〇 rust 〇 〇 〇 Add lubrication for chains Check chain wheel for deformation 〇 〇 〇 or damage Check chain wheel bearing for 〇...
- Page 46 Others Service Service required Tool item 〇 〇 〇 〇 Wire damage or looseness Wire Looseness electric 〇 〇 〇 circuit joint Emergency 〇 〇 〇 〇 〇 disconnect Check for work condition switch Direction and 〇 〇 〇 〇 〇...
-
Page 47: Truck Used Oil And Lubrication
9.3 Truck used oil and lubrication Filler plug for hydraulic oil Lubrication surface Drain plug Code Designation Mark, code Remark Normally：L- HM32 Hydraulic oil Hydraulic system High and cold environment：L- HV32 Automobile general 3 # lithium base Grease Nozzle and lubrication lubricant Grease SHELL ALVANIA R3... -
Page 48: Replace Hydraulic Oil
9.4 Replace hydraulic oil Procedure: – Open the fuel tank cap. – Put the drain plug into a container for holding the hydraulic oil. – Unscrew the oil drain plug and empty the hydraulic oil. – Screw the oil drain plug back and fasten it. –... -
Page 49: Replace Wheels
a rubber hammer and remove the old 9.5 Replace wheels driving wheels from the drive unit. 9.5.1 Replace drive wheel Procedure: – Dismantle the drive unit from the truck. CAUTION Strike the edge of the driving wheels – Remove the 12 socket hexagon screws evenly and symmetrically. -
Page 50: Replace Load Wheels
9.5.2 Replace load wheels Procedure: – Lift the fork to certain height. – The legs with square pieces of wood from the top, so that the load wheels off the ground. – Screw out the bolt. – Take out axle. –... -
Page 51: Replace The Key Safe Parts Periodically
9.6 Replace the key safe parts periodically Users should replace the parts periodically according to the following table. If the part is abnormal before the replacing time, it should be replaced immediately. Key safe part’s description Term of using (year) Hydraulic hose for lifting system High-pressure hose, hose for hydraulic system Inner sealing element, rubber matter of the hydrulic system... -
Page 52: Relevant Safety Directive Or Standard (Ce)
Relevant safety directive or standard (CE) After CE certificated, the truck meets the following directive and standard: – 2006/42/EC machinery directive（namely Directive of the council of the laws of the member states concerning machinery ） , 2000/14/EC Noise Directive （Namely Directive of the council of the laws of the member states concerning noise radiation of outdoor equipment）;... -
Page 53: Part Ⅱ：structure, Principle And Maintenance
Part Ⅱ：Structure, Principle and Maintenance Drive Unit Data Speed ratio of reduction gear box 24.6857 N•m Max. wheel torque Max. wheel load 1000 Rated voltage Rated power Rated current Rated speed r/min 3300 Drive motor Working system S2=45min Insulation grade Protection grade IP44 ℃... -
Page 54: Dismantle Drive Unit From The Truck
Assemble and use notice – When assemble, scrub the oil seal on the product. Avoid product damage, no disassemble at will. – Avoid each fitting surface and exposed gear impact, thus influence installation. Normal working oil temperature is ≤70℃. – –... -
Page 55: Drive Motor
1.4 Drive motor Wiring Diagram of Motor 24VDC Black 24VDC Black Motor use notice – Keep clean and dry around the motor, and do no place other objects on or in the motor. – Do not use with overload. – Never coexist with strong magnetic object. - Page 56 commutator segments and carbon powder on the commutator surface with soft clean white cloth, when there is grease on the surface, immerse the cloth in alcohol to wipe(park). – Check if all fasteners are tight. – Brush carrier should be fastening and no loose. If turn or remove the brush carrier needed, only mark can loosen the end cap bolt.
- Page 57 polishing. – After polishing crocus cloth and cleaning commutator, motor should work under limited speed to ensure safety until the brush working surface polishes.
- Page 58 Fault diagnosis Probable cause Fault All copper sheet blacken · Pressure of the brush is not right · Short circuit of commutator segments Commutator segments blacken in · Short circuit of armature coils group according to certain sequence · The welding of commutator segments and armature coils is not good or short circuit.
-
Page 59: Electromagnetic Brake
1.5 Electromagnetic brake The spring-loaded electromagnetic brake is applied in the truck which is a single disk brake with double friction surfaces. By use of the pressure spring, powerful braking torque would be generated when power off. The brake could be released by the electromagnetic effect. 1.Mounting Bolt of the Brake 2.Stator Module 3.Brake Pad... -
Page 60: Electromagnetic Brake Working Principle
1.5.1 Electromagnetic brake working principle Motor shaft (9) is connected with shaft sleeve (4) by passing through the flat key. And shaft sleeve (4) is connected with brake pad (3) by passing through the splines. When the stator (11) is block out, the force produced by the pressure spring (10) would act on the armature (8) which makes rotated the brake pad (3) driven by the motor shaft connected closely between the armature (8) and cover plate (5). -
Page 61: Electromagnetic Brake Installation
1.5.2 Electromagnetic brake installation – Put the flat key (13) into the key groove of the motor shaft (9). Press the shaft sleeve (4) to the motor shaft (9) and fasten it with the inner spring. – Install the friction disk (5) to the end face of the motor by using three mounting bolts of the friction bolts (12). -
Page 62: Maintenance
WARNING No broken wire sheath, or else the circuit might be damaged. Do not process the locating surface or the holes of the production without authorization, or else the magnet loop would be influenced. Do not over press when fitting the motor shaft. Make sure no damage on the friction surface and wipe off the burr of the mounting holes and surfaces. -
Page 63: Adjust The Air Gap Of The Brake
1.5.4 Adjust the Air Gap of the Brake Rated air gap Z grows with the friction. In order to there is sufficient braking torque, the air gap must be set before it reaches to the maximum value. The air gap can be adjusted by several times. When the thickness of brake pad becomes the minimum value(see the specification table below), the brake pad must be replaced. - Page 64 Under the general operating conditions, the first set of the air gap is usually after 1500 to 2000 hours service of the brake and it is suggested to adjust the air gap every 6 months. If it comes to a poor working condition, such as frequent use of brake and repeated emergency stops，the air gap should be set when the brake the shorten the adjustment interval for the first time.
-
Page 65: Common Fault And Troubleshooting
1.5.5 Common fault and troubleshooting Fault Probable cause Corrective action Power is obstructed Connect Too low exciting voltage Check voltage and adjust. Brake does not Improper air gap Adjust air gap work Stator coil breaks Replace stator Oil dirt mixed in Clean oil dirt Install the switch to the DC circuit Switch installed to AC circuit... - Page 66 1.5.6 Schematic diagram of braking The forklift truck motor is equipped with an electromagnetic brake. When the forklift is parked, the electromagnetic brake is released. The brake pads firmly lock the motor shaft and the forklift is in a mechanical braking state. battery Traction motor Brake switch...
-
Page 67: Hydraulic System
Hydraulic system Hydraulic system is mainly composed of hydraulic unit, rubber tube and lifting cylinder. 1. Lifting cylinder 2. Hydraulic unit 3. Multi-way valve 4. tank 5. Hose connector Figure 2-5 Hydraulic system... -
Page 68: Hydraulic System Working Principle
2.1 Hydraulic system working principle Lifting the Loading Press the lifting button of the control lever and the oil pump motor starts. It passed the torque from motor to gear pump through the transmission shaft. The gear pump absorbs the hydraulic oil from the fuel tank and passes the oil to the lifting cylinder through non-return valve. -
Page 70: Hydraulic Unit
2.2 Hydraulic unit The truck adopts combined hydraulic unit(see fig.2-7), which mainly consists of DC motor, coupling flange, cartridge, pump tank and other components. Adjust Safety Pressure of Overflow Valve Generally, users do not need to adjust the safety pressure of overflow valve because it is set already before delivery. -
Page 71: Hydraulic System Fault Diagnosis And Correction
2.3 Hydraulic system fault diagnosis and correction Fault Probable cause Corrective action Low oil level Fill to the specified oil level No oil pumps Clean oil pipe and oil tank. If hydraulic oil is from the pump Blocking of strainer dirty, please change it. -
Page 72: Electric System
Electric system Electric system of this truck is double wire system, all circuits do not ground. Working voltage is DC24V. 3.1 Electrical schematic diagram CDD12/15-A2MJ-SZ、CDD12/15-A2MJ-SZDElectrical schematic diagram... - Page 73 CDD12/15-A2MA-SZ、CDD12/15-A2MA-SZDElectrical schematic diagram...
- Page 74 CDD12/15-A2MJ-ISZElectrical schematic diagram...
- Page 75 CDD12/15-A2MA-ISZElectrical schematic diagram...
-
Page 76: Drive Motor Controller
3.2 Drive motor controller 3.2.1 Maintenance Controller has no user repair parts. Do not try to open, repair or alter the controller. Otherwise it may damage the controller and also invalid the guarantee. It’s suggested to keep the controller clean and dry, periodically check and get rid of diagnose historical files. -
Page 78: Fault Code Table
3.2.2 Fault code table The controller has a fault diagnosis function and is equipped with an external fault indicator port. When the controller fails, the fault indicator flashes in the form of a two-digit code. The specific fault type information and fault code are executed in accordance with Table B1.1. The format of the controller fault code is as follows: ¤... - Page 79 1. The motor is short-circuited. Overcurrent fault 2. The controller is damaged. EEPROM failure 1. EEPROM read and write failure. 1. The battery is not connected. Battery connection failure 2.Battery B+, B- loop connection is bad. 1. Before KSI is powered on, the lift switch is Lift switch operation error closed.
-
Page 80: Attachment：table For Bolt's Tightening Torque
Attachment：Table for bolt’s tightening torque ： Unit N· m Grade Bolt’s diameter 4～5 5～7 6～8 9～12 10～12 12～15 14～18 22～29 20～25 25～31 29～39 44～58 35～44 44～54 49～64 76～107 54～69 69～88 83～98 121～162 88～108 108～137 127～157 189～252 118～147 147～186 176～216 260～347 167～206 206～265 245～314... - Page 81 Maintenance Record Date Repair, maintenance content Serviceman...
- Page 82 HANGCHA GROUP CO. , LTD. ■Address For: OVERSEAS USERS ■ Address: 666 Xiangfu Road, Hangzhou, Zhejiang, China ■ Fax: 0086-571-88926789 0086-571-88132890 ■ ZIP:311305 ■ Web: http://www.hcforklift.com ■ E-mail: sales@hcforklift.com...
