Installing The Media Guide
The media guide must be installed when using Batch Rewind mode.
Front Door
Media
Guide

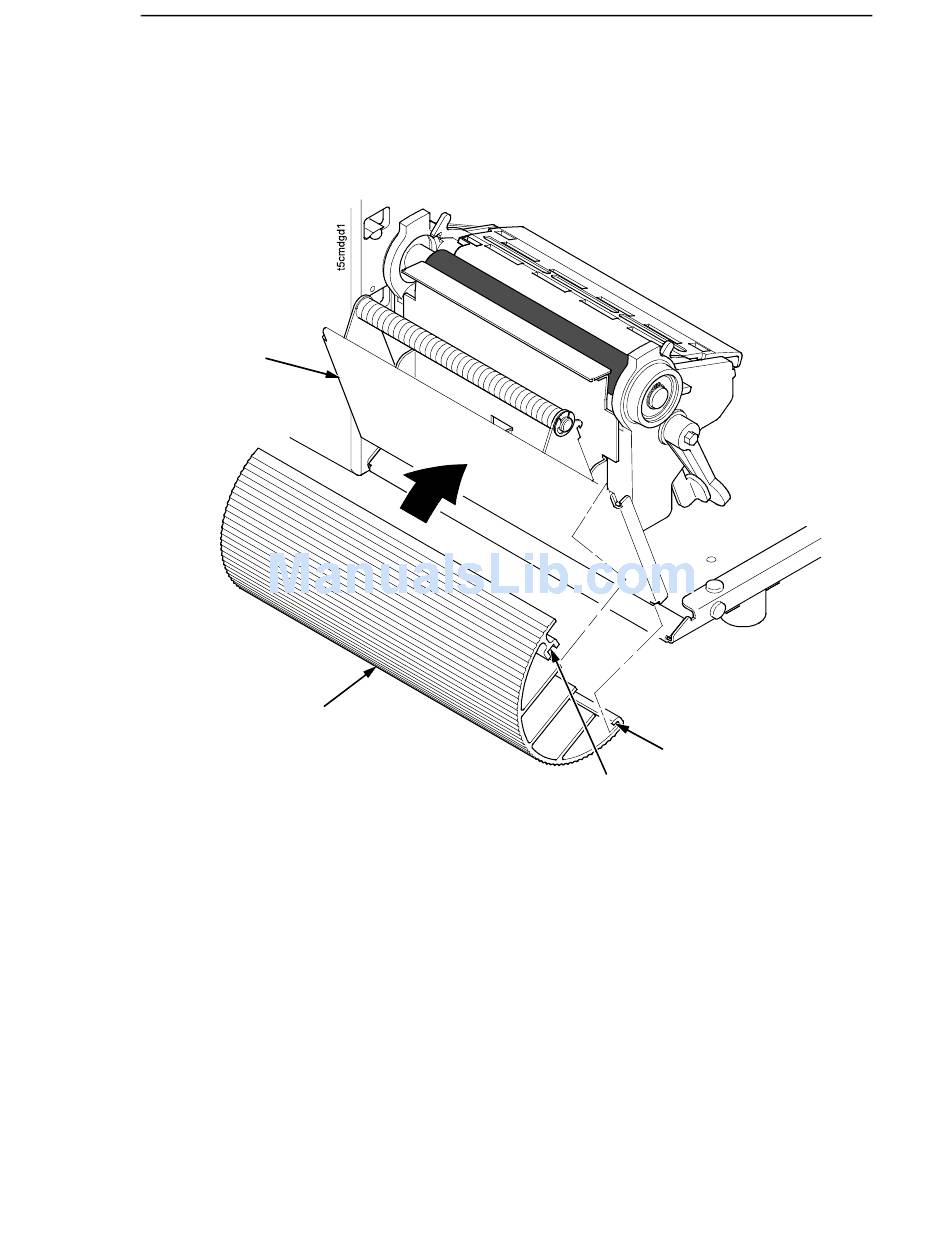

To install the media guide:
1. Open the front door by pulling it upwards, then forward.
2. The bottom of the plastic media guide is shaped like a hook and the top
has a groove:
a. Hook the bottom of the media guide under the bottom edge of the
front door.
b. Snap the groove on the media guide to the top edge of the front door.
3. Close the front door.
Batch Rewind Mode
Hook
Groove
