Chapter 3
MEDIA CONTROL
Examples
All of the examples below assume that the logical form length is set to the
label length.
Example 1: Simple Case
Problem: A file has been constructed with two horizontally adjacent 4" labels
for a printer with a physical width of 8". The user now wants to use this file
with a printer that has a 4" physical width.
Solution: The user sets Auto Label Width to 4" (the width of the label),
configures the Num Auto Labels to 2, and enables the Auto Label Mapping
feature.

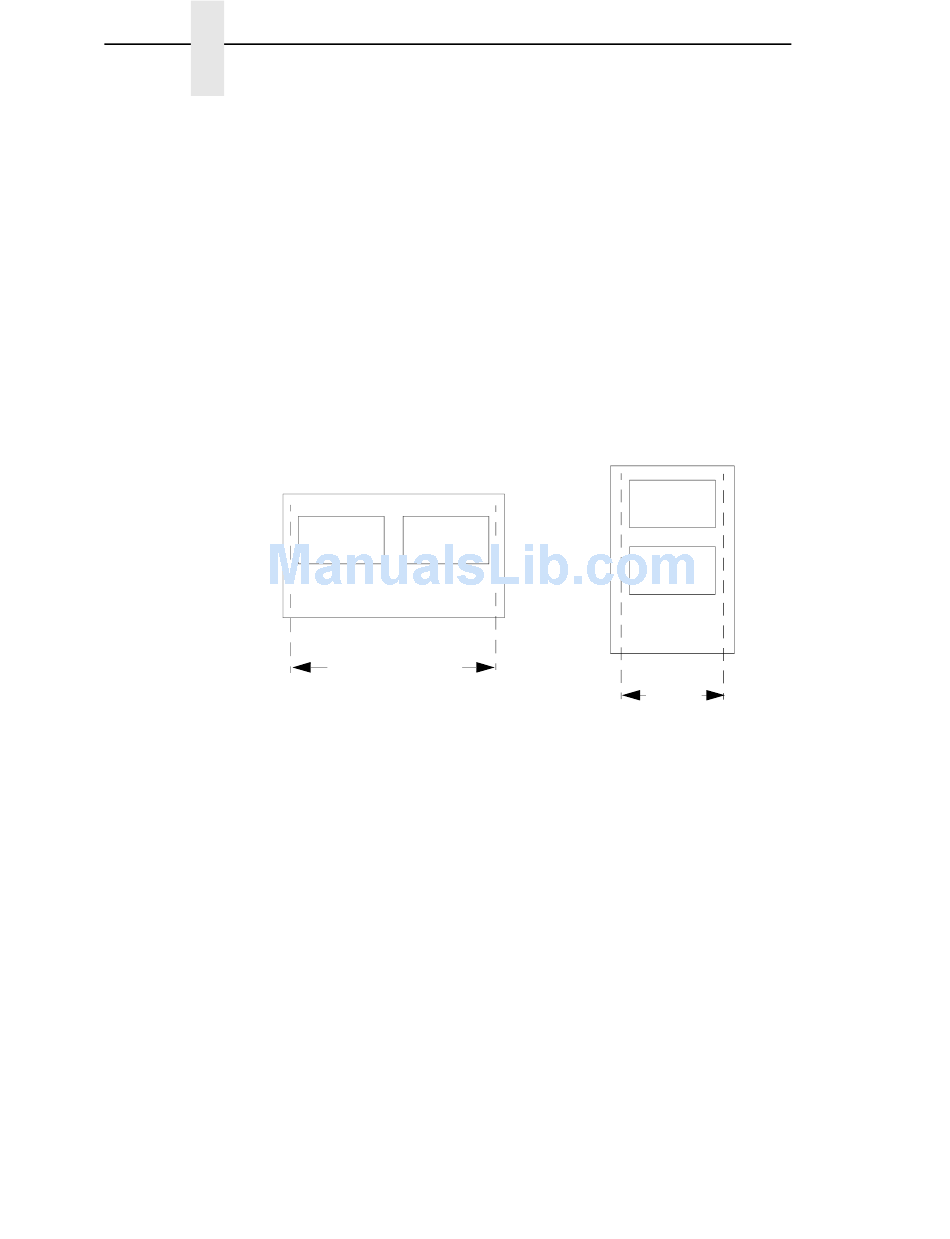

Printer Operation: The printer will print the first (leftmost) 4" label first. Once
the first label has been completed, the printer will print the second 4" label.
These labels will appear vertically adjacent on the form.
126
Line-Matrix Printer Output
Label 1 Label 2
Wide Web Width
Thermal Printer Output
Label 1
Label 2
Narrow
Web
Width
