E Media Cutter Tray Installation; Assembling The Media Cutter Tray - Printronix SL5000r User Manual

Rfid smart label and thermal printers

Hide thumbs Also See for SL5000r:

Table of Contents

1. Align the flanges of the cutter tray bin with the slots in the cutter tray base.

2. Push the flanges into the slots, then push the cutter tray bin downward to

3. Attach the cutter tray bin in a position so that the labels will not interfere

with cutter operation. (For longer labels, attach the cutter tray bin to a

lower position; for shorter labels, attach it to a higher position.)

Media Cutter Tray

Installation

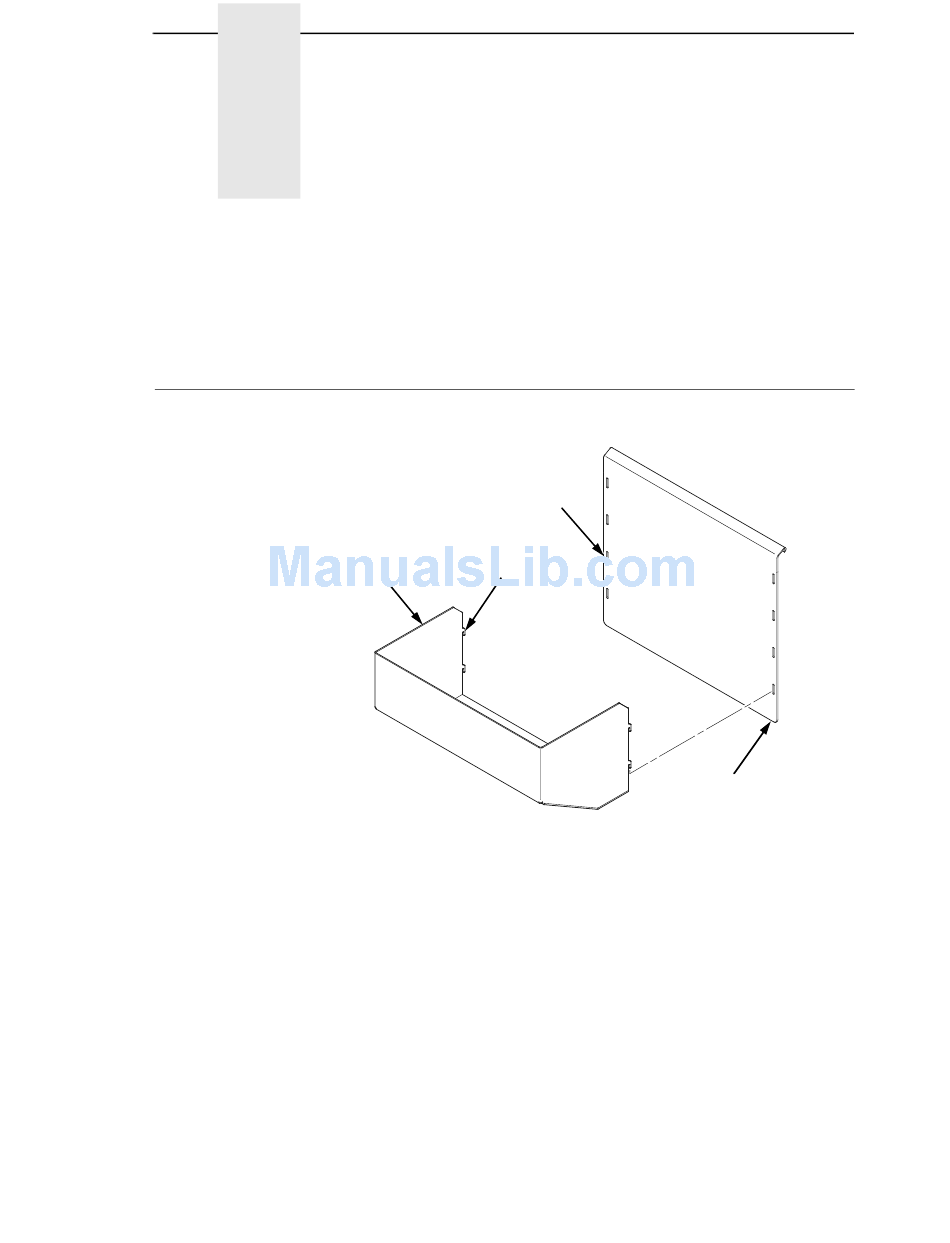

Figure 1. Attaching the Cutter Tray Bin to the Cutter Tray Base
