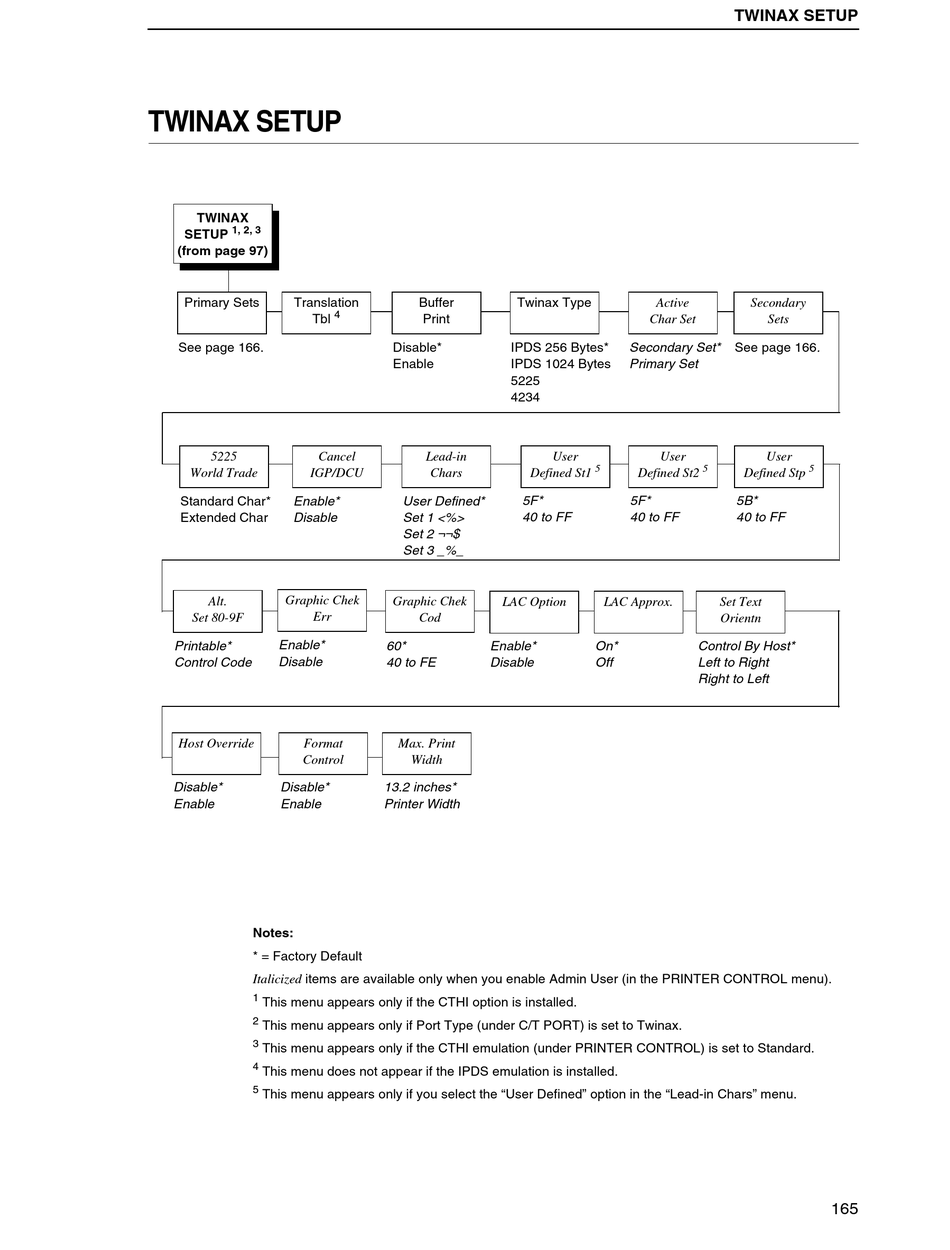

TWINAX SETUP

TWINAX
1, 2, 3
SETUP
(from page 97)
Primary Sets Translation
Tbl
See page 166.
5225 Cancel
World Trade IGP/DCU
Standard Char* Enable*
Extended Char Disable
Graphic Chek
Alt.
Set 80-9F Err
Enable*
Printable*
Disable
Control Code
Host Override Format
Control
Disable* Disable*
Enable Enable
Notes:
* = Factory Default
Italicized items are available only when you enable Admin User (in the PRINTER CONTROL menu).
1
This menu appears only if the CTHI option is installed.
2
This menu appears only if Port Type (under C/T PORT) is set to Twinax.
3
This menu appears only if the CTHI emulation (under PRINTER CONTROL) is set to Standard.
4
This menu does not appear if the IPDS emulation is installed.
5
This menu appears only if you select the "User Defined" option in the "Lead-in Chars" menu.
Buffer
4
Print
Disable* IPDS 256 Bytes*
Enable IPDS 1024 Bytes
5225
4234
Lead-in
Chars
User Defined*
Set 1 <%>
Set 2 ¬¬$
Set 3 _%_
Graphic Chek
LAC Option
Cod
60* Enable*
40 to FE Disable
Max. Print
Width
13.2 inches*
Printer Width
Twinax Type
Active
Char Set
Secondary Set*
Primary Set
User User
5
Defined St1 Defined St2
5F* 5F*
40 to FF 40 to FF
LAC Approx.
On*
Off
TWINAX SETUP
Overview
Secondary
Sets
See page 166 .
User
5 5
Defined Stp
5B*
40 to FF
Set Text
Orientn
Control By Host*
Left to Right
Right to Left
