5. Attach Interface:
a. Parallel Interface
b. Serial Interface
NOTE: The printer supports simultaneous connection of the parallel, serial,
Serial Interface
30
Attach a suitable parallel printer cable from the computer to the
Centronics/IEEE 1284 interface connector at the back of the printer.
Snap the bail locks to the Centronics connector to secure the
interface cable to the printer.
Attach a suitable serial printer cable from the computer to the DB-9
RS-232 serial interface connector at the back of the printer. For
additional information on serial cable wiring, refer to "Diagnostics And
Troubleshooting" on page 303.
and USB interfaces using the Auto Switching feature. Auto Switching
is described on page 295.

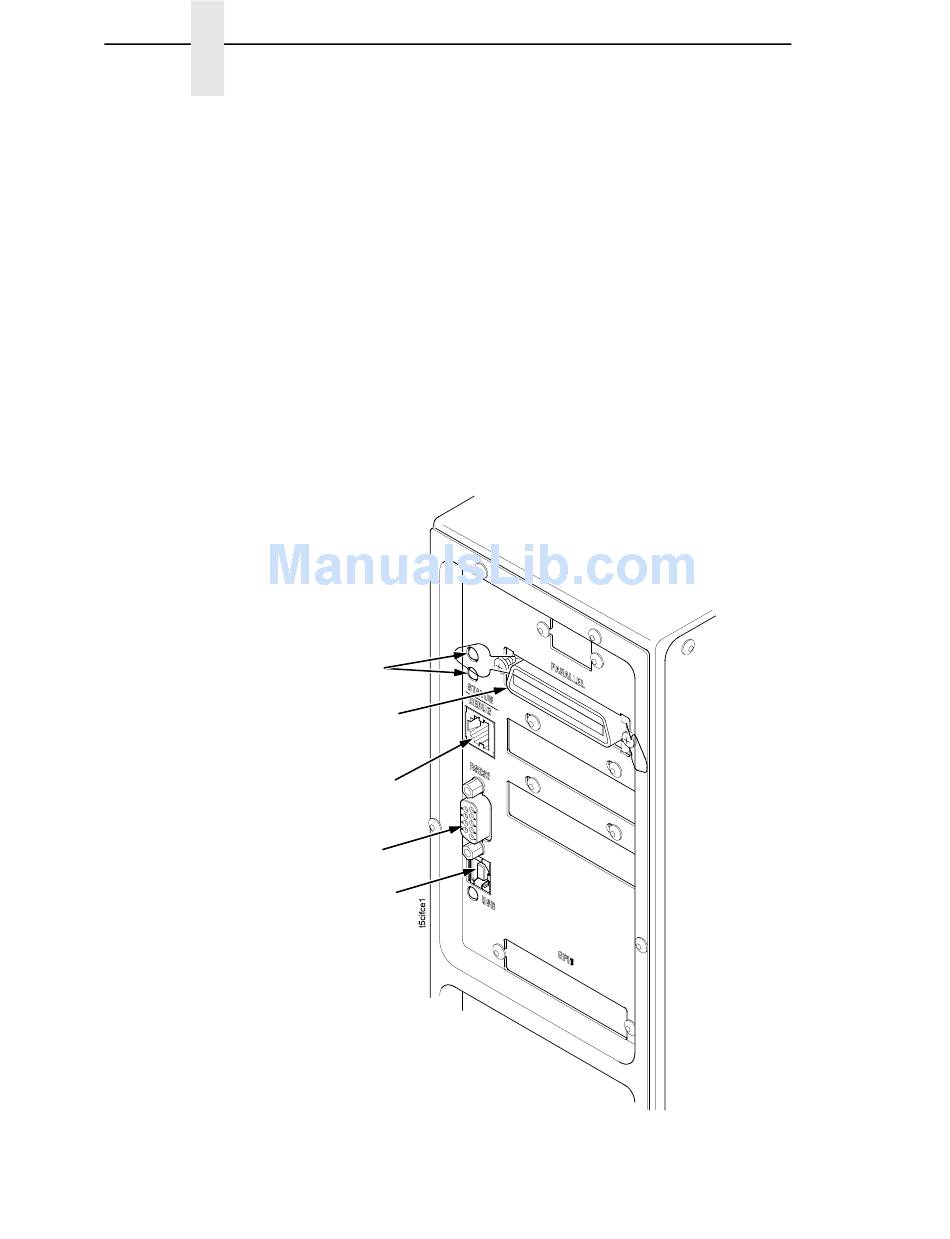

Standard Interface Panel
Status LEDs
Parallel Interface
Debug Interface
USB Connection
