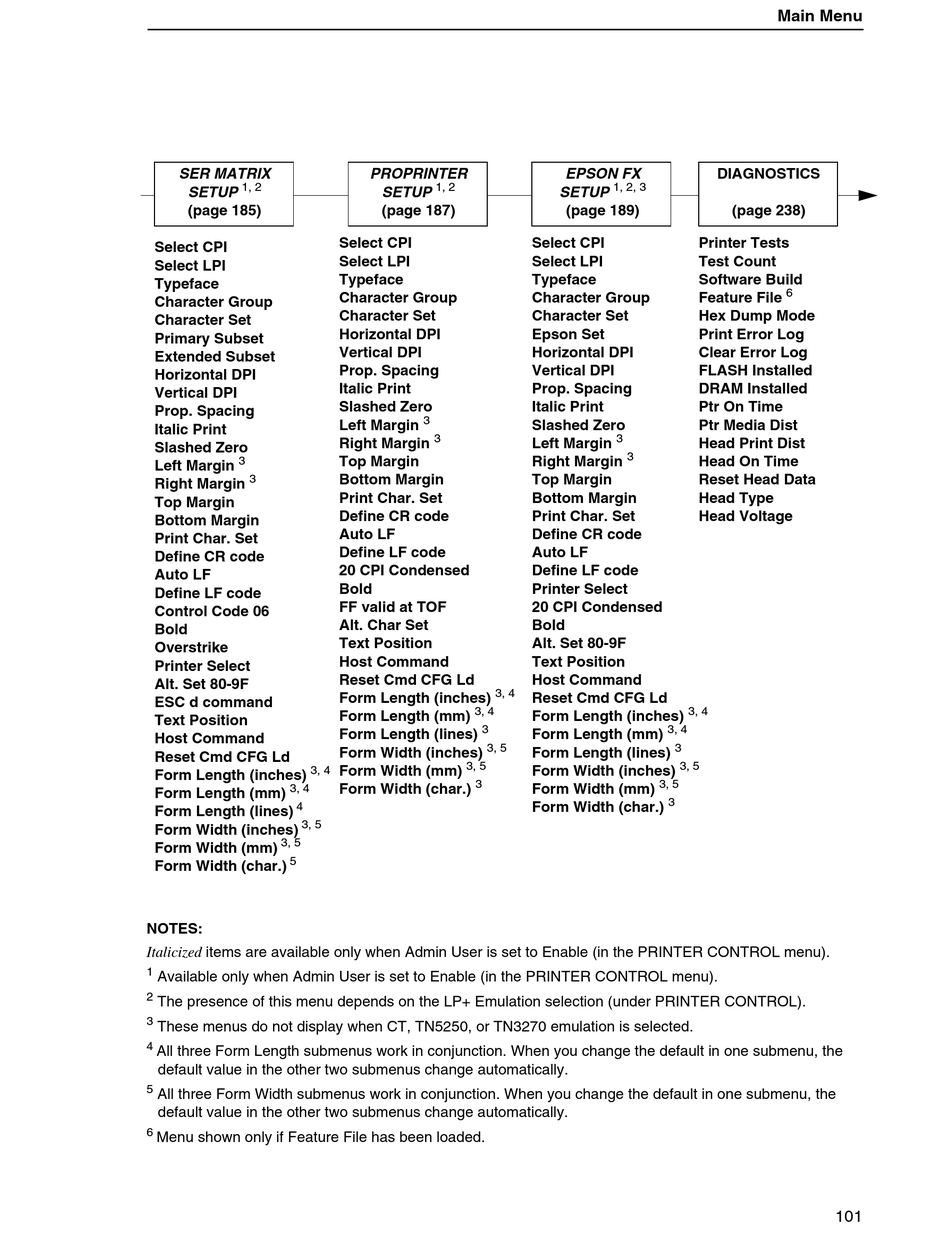

SER MATRIX
1, 2
SETUP
(page 185)
Select CPI
Select LPI
Typeface
Character Group
Character Set
Primary Subset
Extended Subset
Horizontal DPI
Vertical DPI
Prop. Spacing
Italic Print
Slashed Zero
3
Left Margin
3
Right Margin
Top Margin
Bottom Margin
Print Char. Set
Define CR code
Auto LF
Define LF code
Control Code 06
Bold
Overstrike
Printer Select
Alt. Set 80-9F
ESC d command
Text Position
Host Command
Reset Cmd CFG Ld
3, 4
Form Length (inches)
3, 4
Form Length (mm)
4
Form Length (lines)
3, 5
Form Width (inches)
3, 5
Form Width (mm)
5
Form Width (char.)
NOTES:
Italicized items are available only when Admin User is set to Enable (in the PRINTER CONTROL menu).
1
Available only when Admin User is set to Enable (in the PRINTER CONTROL menu).
2
The presence of this menu depends on the LP+ Emulation selection (under PRINTER CONTROL).
3
These menus do not display when CT, TN5250, or TN3270 emulation is selected.
4
All three Form Length submenus work in conjunction. When you change the default in one submenu, the
default value in the other two submenus change automatically.
5
All three Form Width submenus work in conjunction. When you change the default in one submenu, the
default value in the other two submenus change automatically.
6
Menu shown only if Feature File has been loaded.
PROPRINTER
1, 2
SETUP
(page 187)
Select CPI
Select LPI
Typeface
Character Group
Character Set
Horizontal DPI
Vertical DPI
Prop. Spacing
Italic Print
Slashed Zero
3
Left Margin
3
Right Margin
Top Margin
Bottom Margin
Print Char. Set
Define CR code
Auto LF
Define LF code
20 CPI Condensed
Bold
FF valid at TOF
Alt. Char Set
Text Position
Host Command
Reset Cmd CFG Ld
3, 4
Form Length (inches)
3, 4
Form Length (mm)
3
Form Length (lines)
3, 5
Form Width (inches)
3, 5
Form Width (mm)
3
Form Width (char.)
Loading A Saved Configuration
EPSON FX
1, 2, 3
SETUP
(page 189)
Select CPI Printer Tests
Select LPI Test Count
Typeface Software Build
Character Group Feature File
Character Set Hex Dump Mode
Epson Set Print Error Log
Horizontal DPI Clear Error Log
Vertical DPI FLASH Installed
Prop. Spacing DRAM Installed
Italic Print Ptr On Time
Slashed Zero Ptr Media Dist
3
Left Margin Head Print Dist
3
Right Margin Head On Time
Top Margin Reset Head Data
Bottom Margin Head Type
Print Char. Set Head Voltage
Define CR code
Auto LF
Define LF code
Printer Select
20 CPI Condensed
Bold
Alt. Set 80-9F
Text Position
Host Command
Reset Cmd CFG Ld
3, 4
Form Length (inches)
3, 4
Form Length (mm)
3
Form Length (lines)
3, 5
Form Width (inches)
3, 5
Form Width (mm)
3
Form Width (char.)
Main Menu
DIAGNOSTICS
(page 238)
6
