9-8. Confirm Position Data of NCW-3DHIP

All settings are completed, and NCW-3DHIP is ready to use.

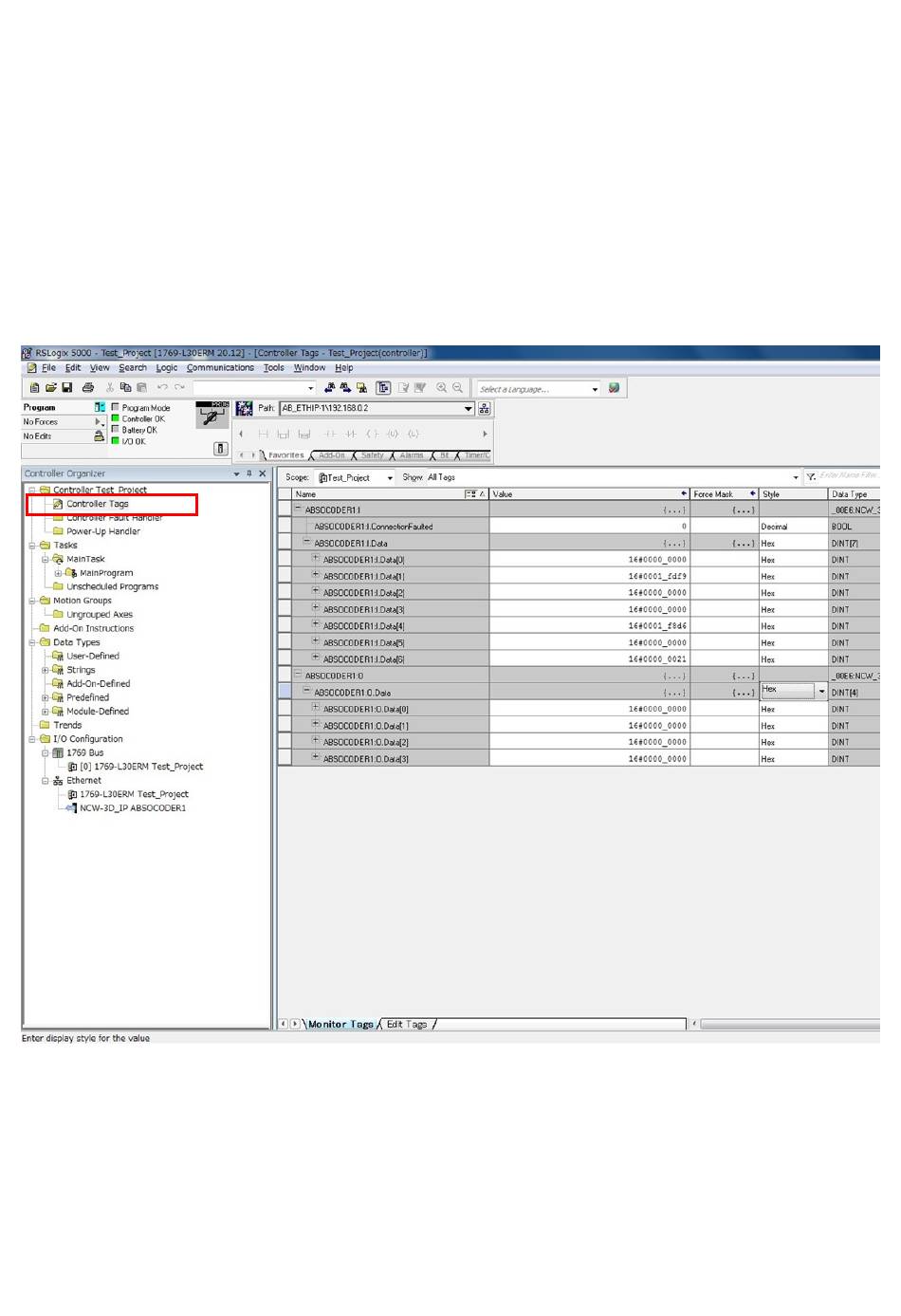

Double-click the "Controller tags" of RSLogix5000.
The "Controller Tags" dialog box appears.
The position data can be confirmed by the tag of NCW-3DHIP.
The tags which indicate each position data are as follows.
Axis-1 Position Data → ABSOCODER1:I:Data[1]
Axis-2 Position Data → ABSOCODER1:I:Data[4]
