7. WIRING

7-1. Connection between Converter and ABSOCODER Sensor

The maximum extension sensor cable length varies according to the ABSOCODER sensor and cable model
being used. For more details refer to "3-2. ABSOCODER Sensor Specifications".

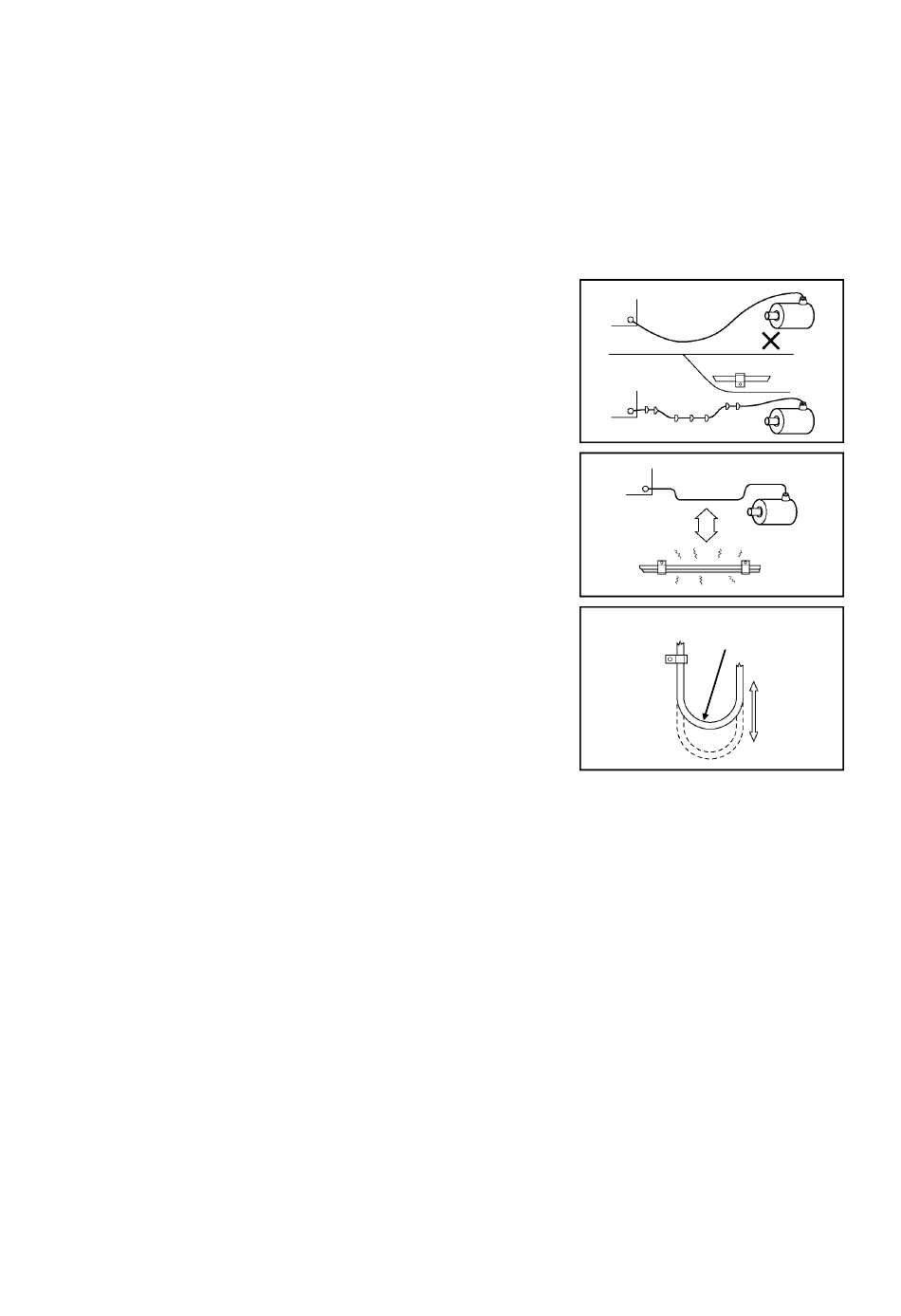

-Wiring Precautions

(1) The sensor cable should be clamped as shown
in the right figure to prevent excessive tension from
being applied to the cable connectors.
(2) The sensor cable should be located at least 300mm
away from power lines and other lines which generate
a high level of electrical noise.
(3) If the cable is moved under the state of bending
like a horseshoe, a robotic cable should be used.
The bend radius should never be less than 75 mm.
300mm or more
22
Cable clamp
R75mm or more
