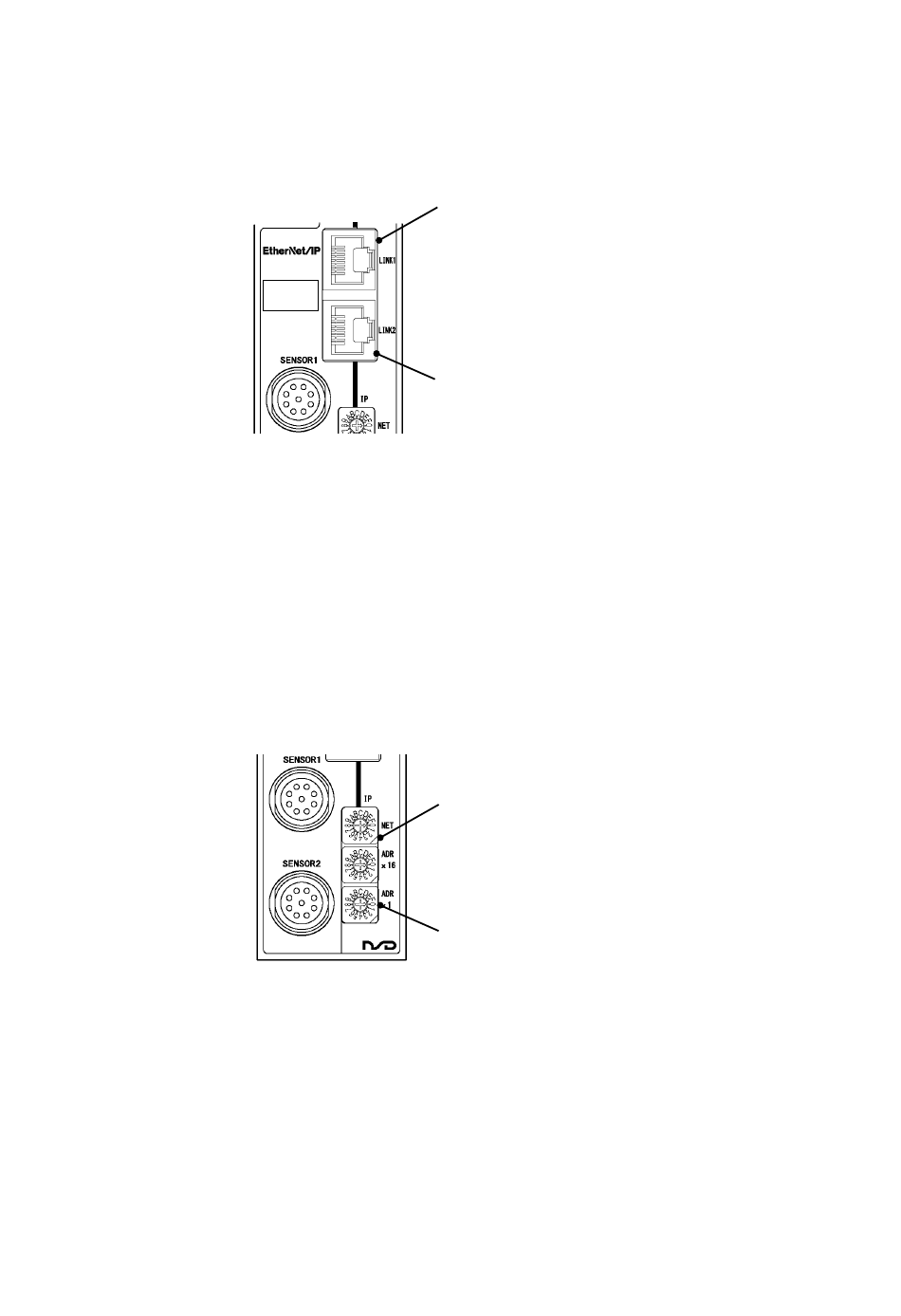

8-2-3. Ethernet connector (LINK1/LINK2)

Ethernet communication cables are connected to these ports.

8-2-4. Ethernet IP address setting switch (IP)

The IP address is designated by "Subnet address [NET]" and "Host address [ADR]"
The Subnet address [NET] range is from 0 to F in the hex (0,...,15 in dec).
The Host address [ADR] range is from 0,...,FF in the hex (0,...,255 in dec). The NCW-3DHIP obtains the IP
address from the BOOTP/DHCP server when the switch is set to either "0" or "255".
E8:8E:60
xx:xx:xx
port
Ethernet 1 (LINK1)
(RJ45)
Ethernet port 2 (LINK2)
(RJ45)
Subnet address (IP.NET)
Host address (IP.ADR ×16)
(IP.ADR ×1)
32
