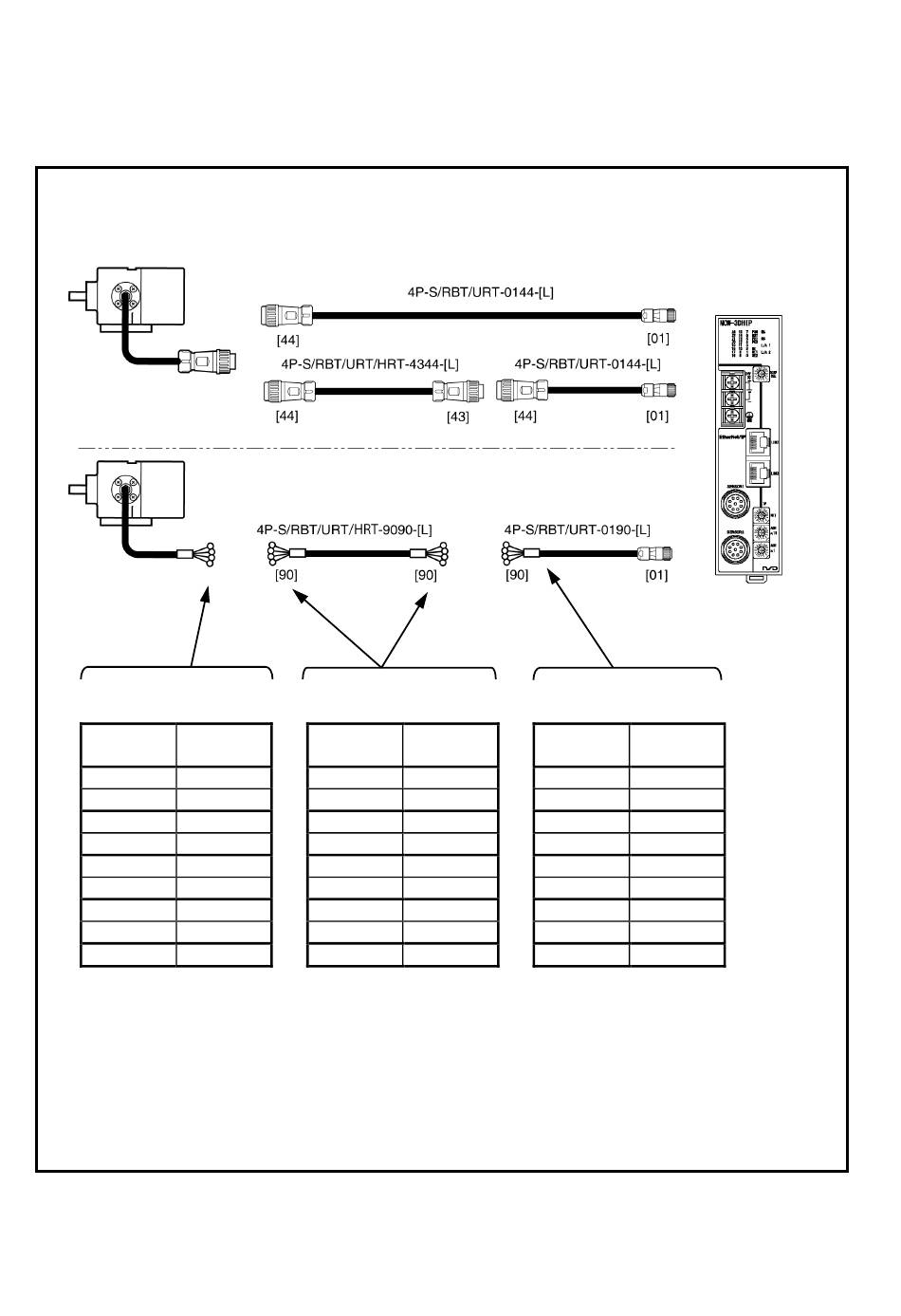

7-1-1. Connection configure example of the sensor cable

● In the case of using the NSD special cable
ABSOCODER sensor
Crimping
terminal
(R1.25-4)
ABSOCODER sensor
Wire color
Signal
Wire color
names
Brown SIN＋
Red SIN－
Orange
－COS＋
Yellow
－COS－
Green OUT＋
Blue OUT－
－ －
－ －
Shield Shield
Cautions for the connection by the crimping terminal
1: Twist the signal wire for preventing noises.
Combinations of the twist are following:
SIN＋ and SIN－, －COS＋ and －COS－, OUT1＋ and OUT1－
2: The shield wire shouldn't be grounded.
*1: Both violet and gray wire aren't used.
Extension sensor cable
Crimping
terminal
Crimping
(R1.25-4)
(R1.25-4)
NSD special cable
Wire color
Signal
Wire color
names
Brown SIN＋
Red SIN－
Orange
－COS＋
Yellow
－COS－
Green OUT1＋
Blue OUT1－
Violet *1 OUT2＋
Gray *1 OUT2－
Shield Shield
23
terminal
NSD special cable
Wire color
Signal
Wire color
names
Brown SIN＋
Red SIN－
Orange
－COS＋
Yellow
－COS－
Green OUT1＋
Blue OUT1－
Violet *1 OUT2＋
Gray *1 OUT2－
Shield Shield
Converter
