NSD Absocoder NCW-3DHIPV1R Specifications & Instruction Manual page 55

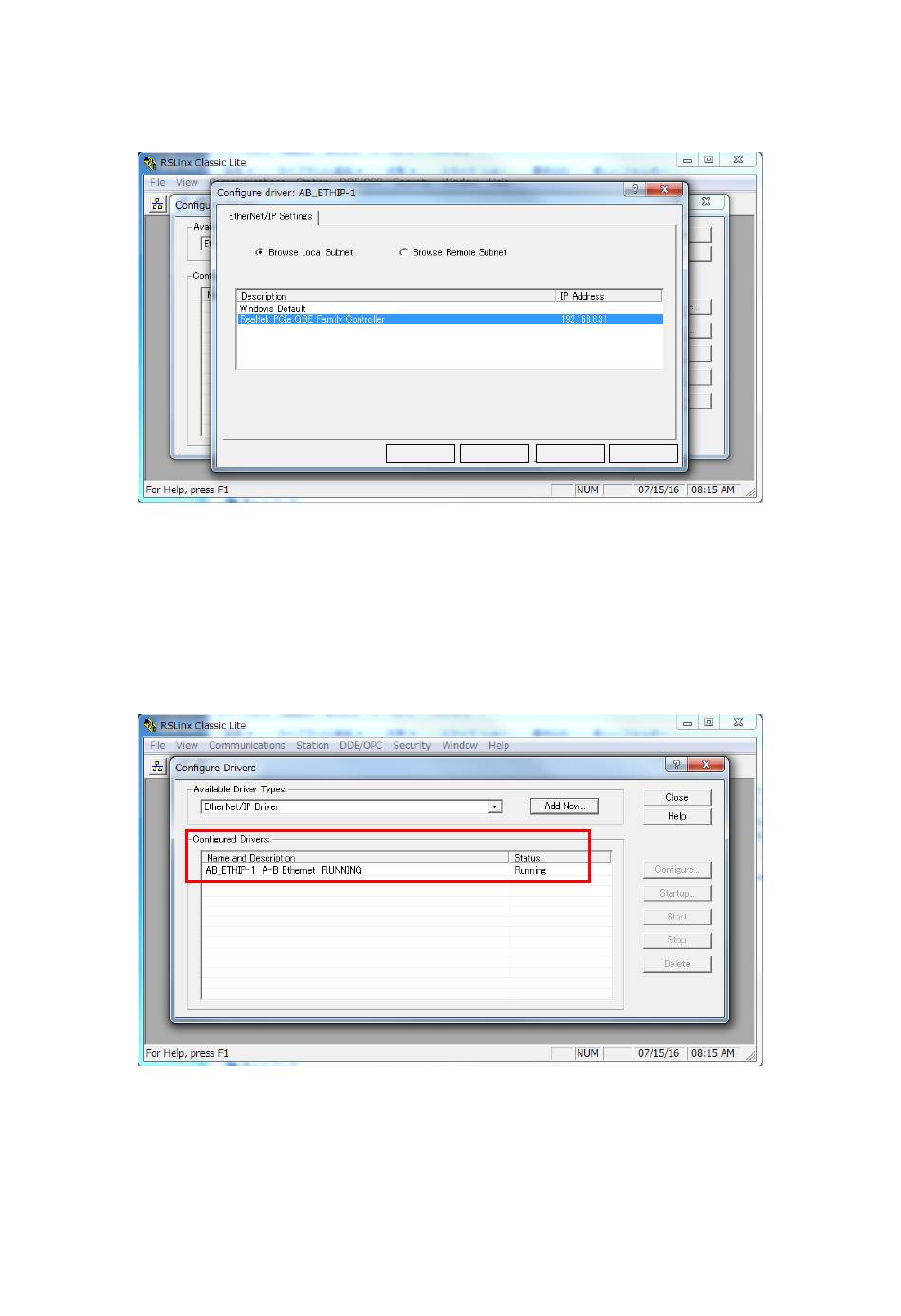

(5) Choose the Ethernet device on the EtherNet/IP network
The "Configure driver" dialog box appears, and then click "Browse Local Subnet" checkbox.
Choose the desired device, and click "OK".
(6) Confirm the status with the new driver
The added driver appears on the "Configure Drivers" dialog box.
Confirm that the status message of added driver is "Running". Then click "Close".
In the above procedure, you can access controller (CompactLogix) and NCW-3DHIP via the EtherNet/IP
network from RSLogix5000.
