EVAL_PMG1_S3_DUALDRP Evaluation Kit user guide
Appendices

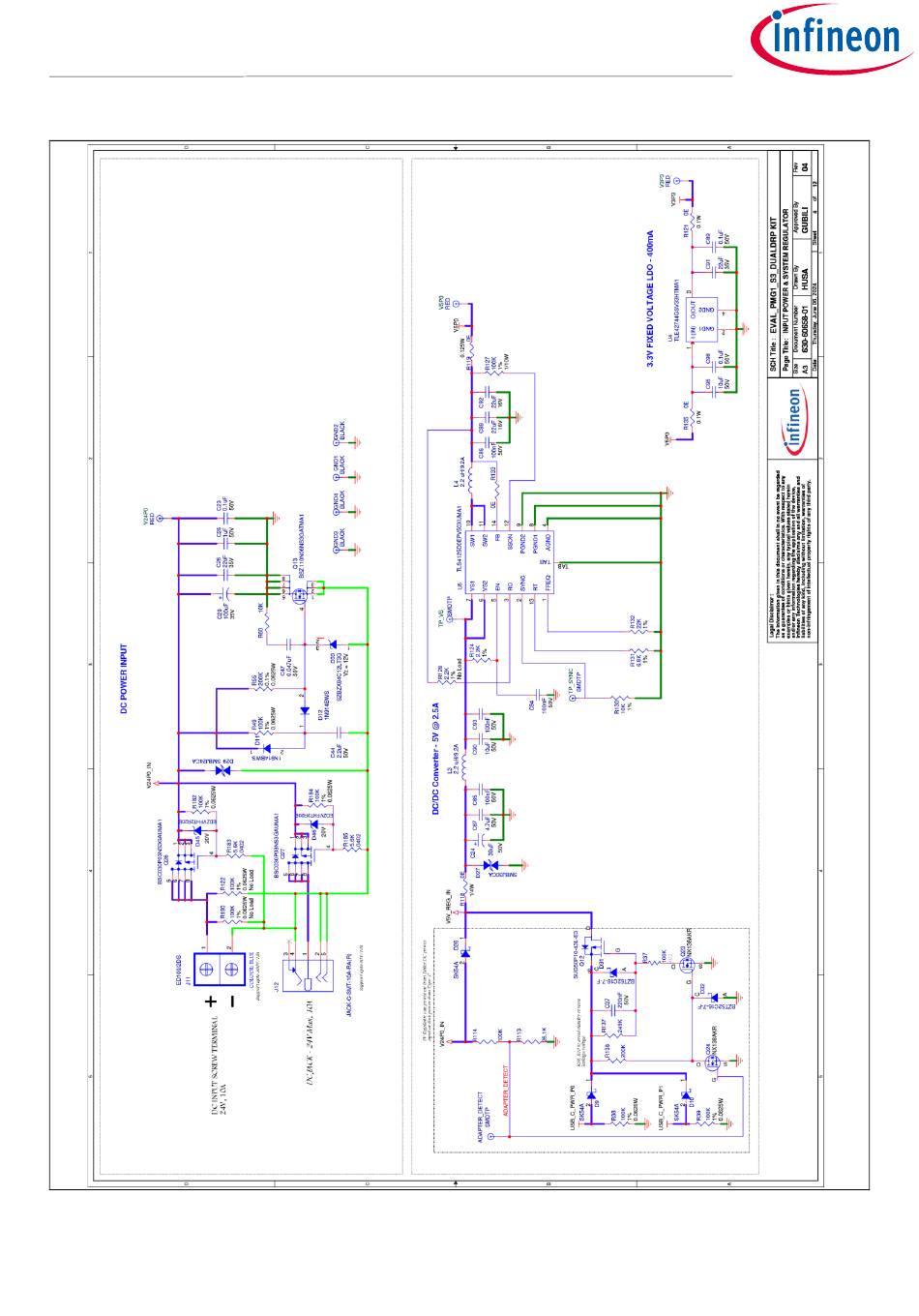

Figure 36 DC input power and system regulator schematics
