Debug Mode Using Kitprog3 Interface And Modustoolbox - Infineon EVAL PMG1 S3 DUALDR User Manual

EVAL_PMG1_S3_DUALDRP Evaluation Kit user guide
Application development on EVK using ModusToolbox™ and ModusToolbox™
Programmer

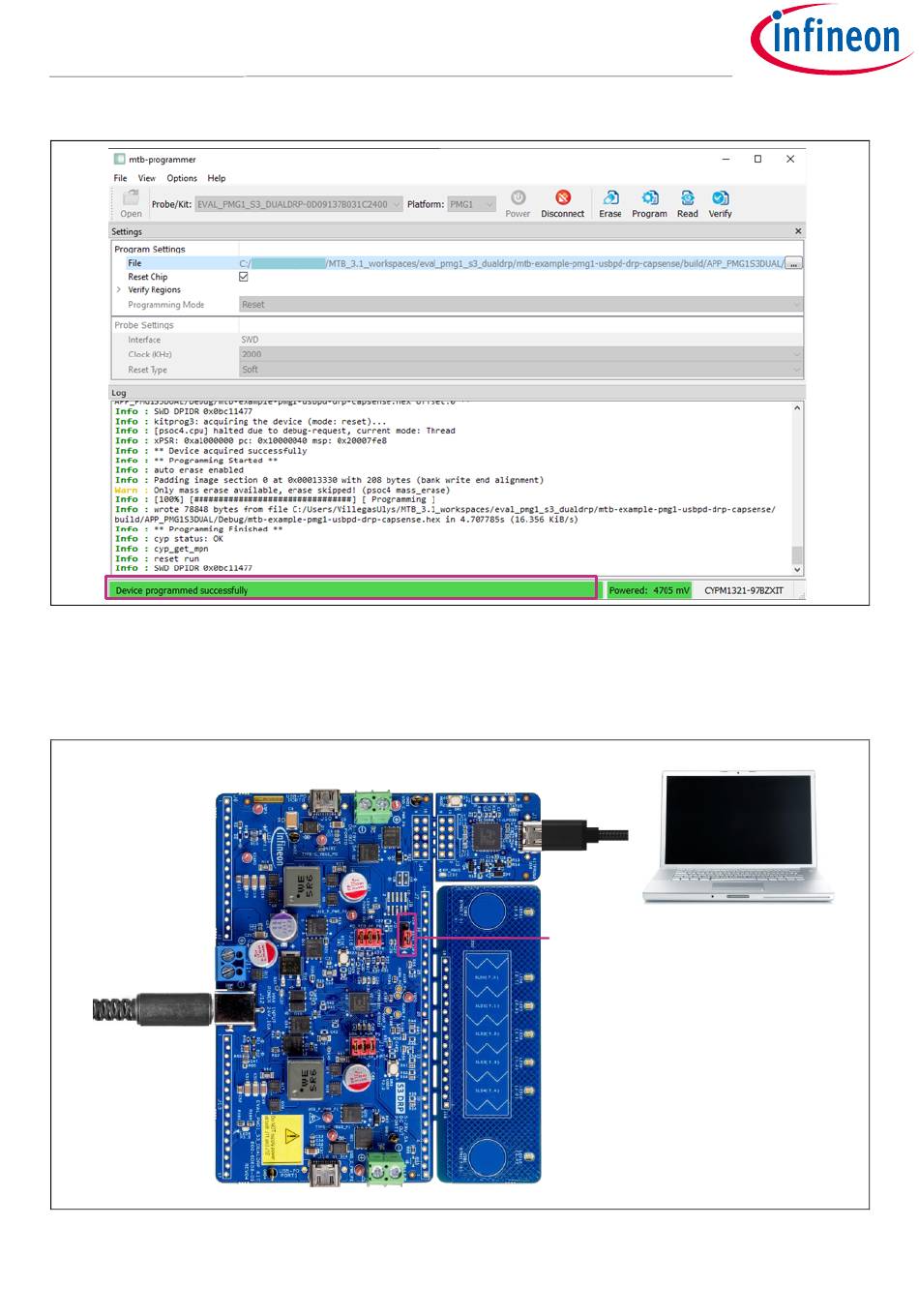

Figure 27 Programming through ModusToolbox™ Programmer
5.2

Debug mode using KitProg3 interface and ModusToolbox™

The kit power selection jumper(J5) needs to be configured in Operational mode for the debugging.
24V DC input power
adapter
Figure 28 Debugging through KitProg3
User guide
Power selection jumper
J5 (1-2 V3P3)
