Using Modustoolbox™ Programmer - Infineon EVAL PMG1 S3 DUALDR User Manual

EVAL_PMG1_S3_DUALDRP Evaluation Kit user guide
Application development on EVK using ModusToolbox™ and ModusToolbox™
Programmer
6. On the Quick Panel, click <Application name> Program (KitProg3_MiniProg4) from the Launches section
as shown in Figure 23.

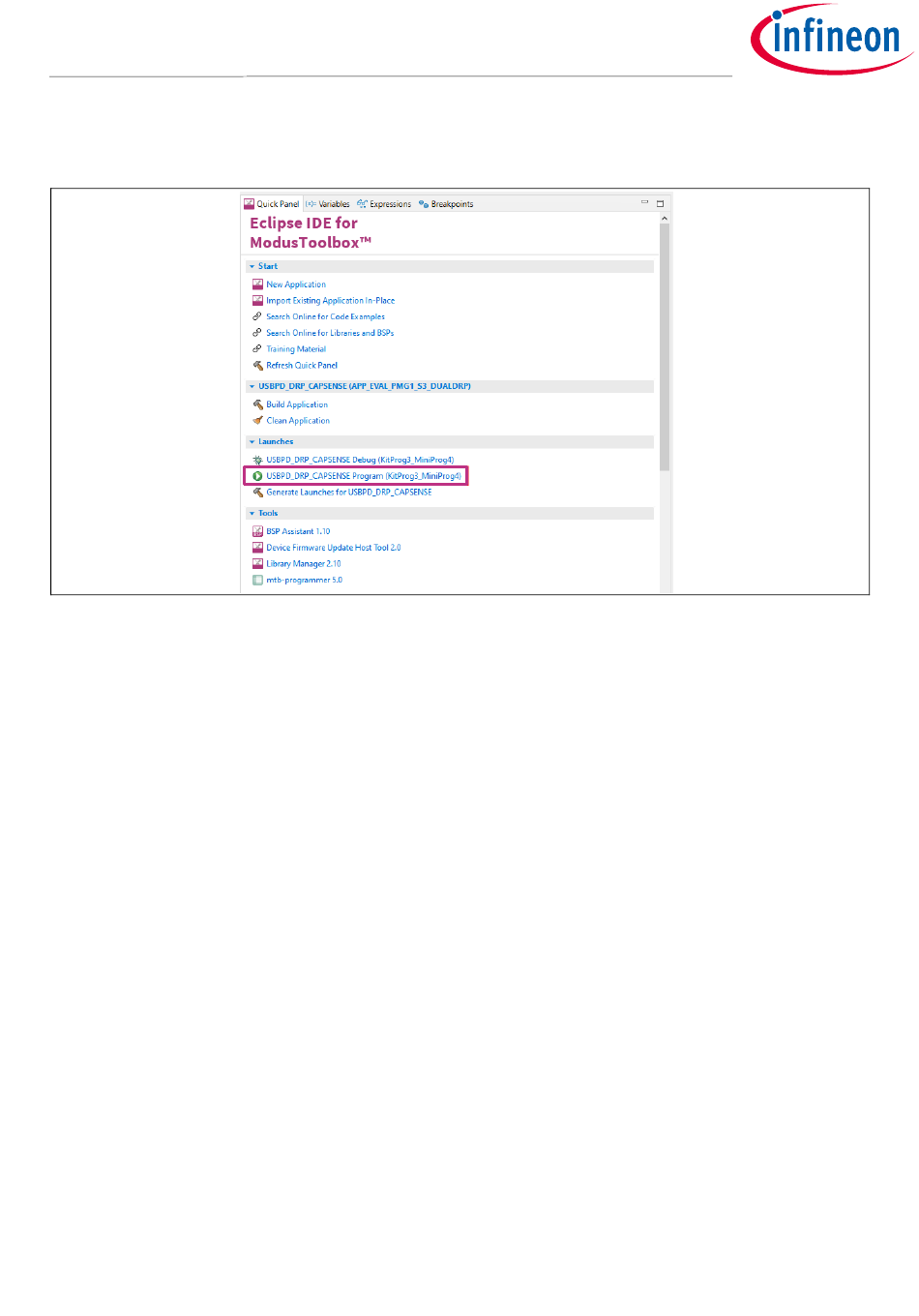

Figure 23 Quick Panel and programming options
7. The Console tab displays the progress of the build/program. You can check the Problems tab for any errors
and warnings. On successful program completion, the success message is displayed on the Console tab.
5.1.2 Using ModusToolbox™ Programmer
ModusToolbox™ Programmer is a stand-alone, cross-platform, flash programmer tool. It provides a GUI to
program, erase, verify, and read the flash of the target MCU. Also, it supports the HEX, SREC, ELF, and BIN
programming file formats.
Download and install ModusToolbox™ Programmer
program the EVAL_PMG1_S3_DUALDRP kit.
1. Connect the power section jumper (J5) to position 2–3 (VIN).
2. Connect the kit to the host PC through the KitProg3 connector. See
3. Launch ModusToolbox™ Programmer.
4. From the Probe/Kit dropdown list, select EVAL_PMG1_S3_DUALDRP. Based on the selection, the Platform
displays PMG1 and the Log panel displays the selected device/kit/probe name.
User guide
through Infineon Developer Center
Figure 21
34
and do the following to
for the setup.
