5 Application development on EVK using ModusToolbox™ and
ModusToolbox™ Programmer
The EZ-PD™ PMG1 MCU-based projects are developed using the ModusToolbox™ software development tool.
ModusToolbox™ software is a set of multi-platform development tools and a comprehensive suite of
GitHub-hosted firmware libraries.
If you are new to the ModusToolbox™ software, see the documentation on the
environment home page.
The prototyping kit can be programmed and debugged through any of the following interfaces:
KitProg3 USB Type-C port
•
10-pin SWD header
•
I/O header pins
•
The kit supports programming and debugging via the KitProg3 interface by default.
5.1

Programming through the KitProg3 interface

5.1.1 Using ModusToolbox™ software
KitProg3 is a PSoC™ 5LP MCU-based onboard programming and debugging solution integrated with the
EZ-PD™ PMG1 MCU prototyping kits. You can program and debug the kit without using any separate
programming and debug module. Connect the kit to the PC using the programming connecter as shown in
Figure 21.

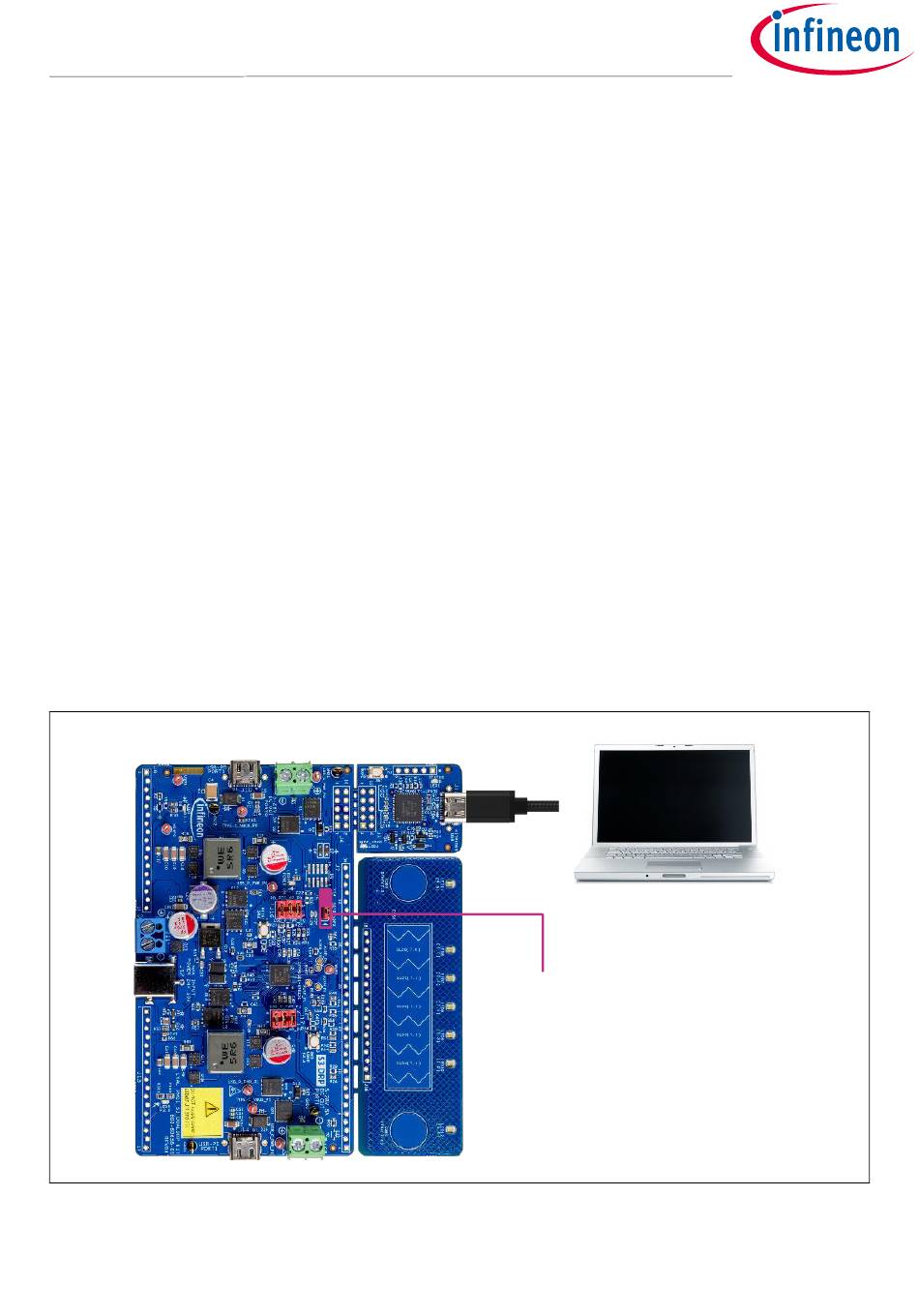

Figure 21 Programming through the KitProg3 interface
User guide
Power selection jumper
J5 (2-3 VTARG)
32
ModusToolbox™ software
002-38187 Rev. *B
