EVAL_PMG1_S3_DUALDRP Evaluation Kit user guide
EVAL_PMG1_S3_DUALDRP kit system design
Pin# Pin name
5 GND
6 -
7 GND
8 -
9 GND
10 RESET
3.5

User LEDs and switch

The EVK has two user LEDs and one user switch connected to the EZ-PD™ PMG1-S3 MCU GPIOs. The user LEDs
(green) are connected to the P3.1 and P3.2, and their functionality can be configured via the firmware.
The GPIOs needs to be driven LOW to turn ON the user LEDs.
The user switch (SW3) is a tactile push-button switch on the EVK whose functionality can be configured via the
firmware. When the switch is pressed, the GPIO (P3.3) connected to the button is pulled down to the ground.

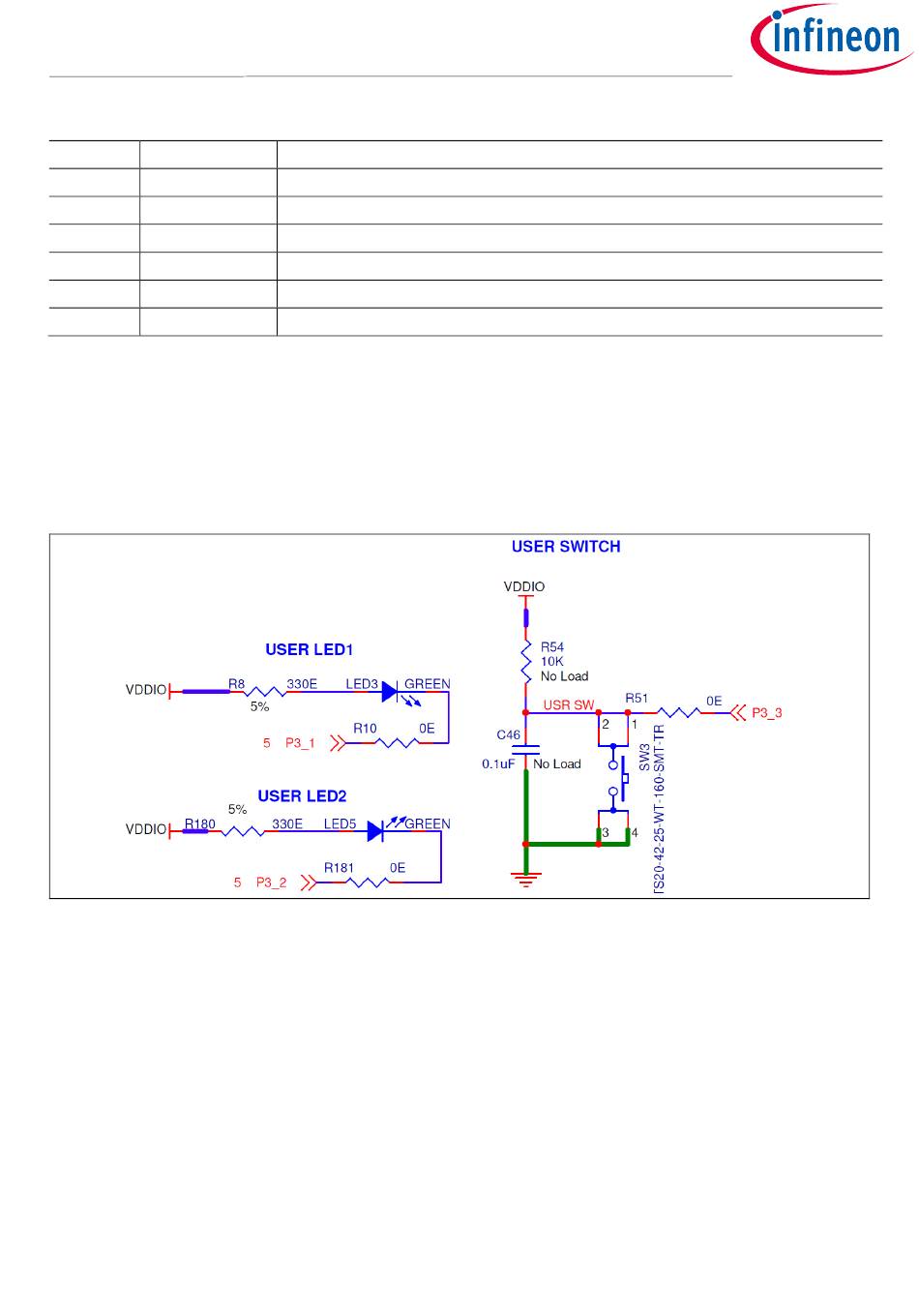

Figure 14 User LEDs and switch
User guide
Description
Ground
-
Ground
-
Ground
Reset signal for programming EZ-PD™ PMG1-S3 MCU
25 002-38187 Rev. *B
2024-09-23
