EVAL_PMG1_S3_DUALDRP Evaluation Kit user guide
EVAL_PMG1_S3_DUALDRP kit system design
3.6

Reset button

The EVK has a reset button (SW2) to manually reset the device. When the reset button is pressed, the XRES pin
on the device is pulled down to the ground and resets the device.

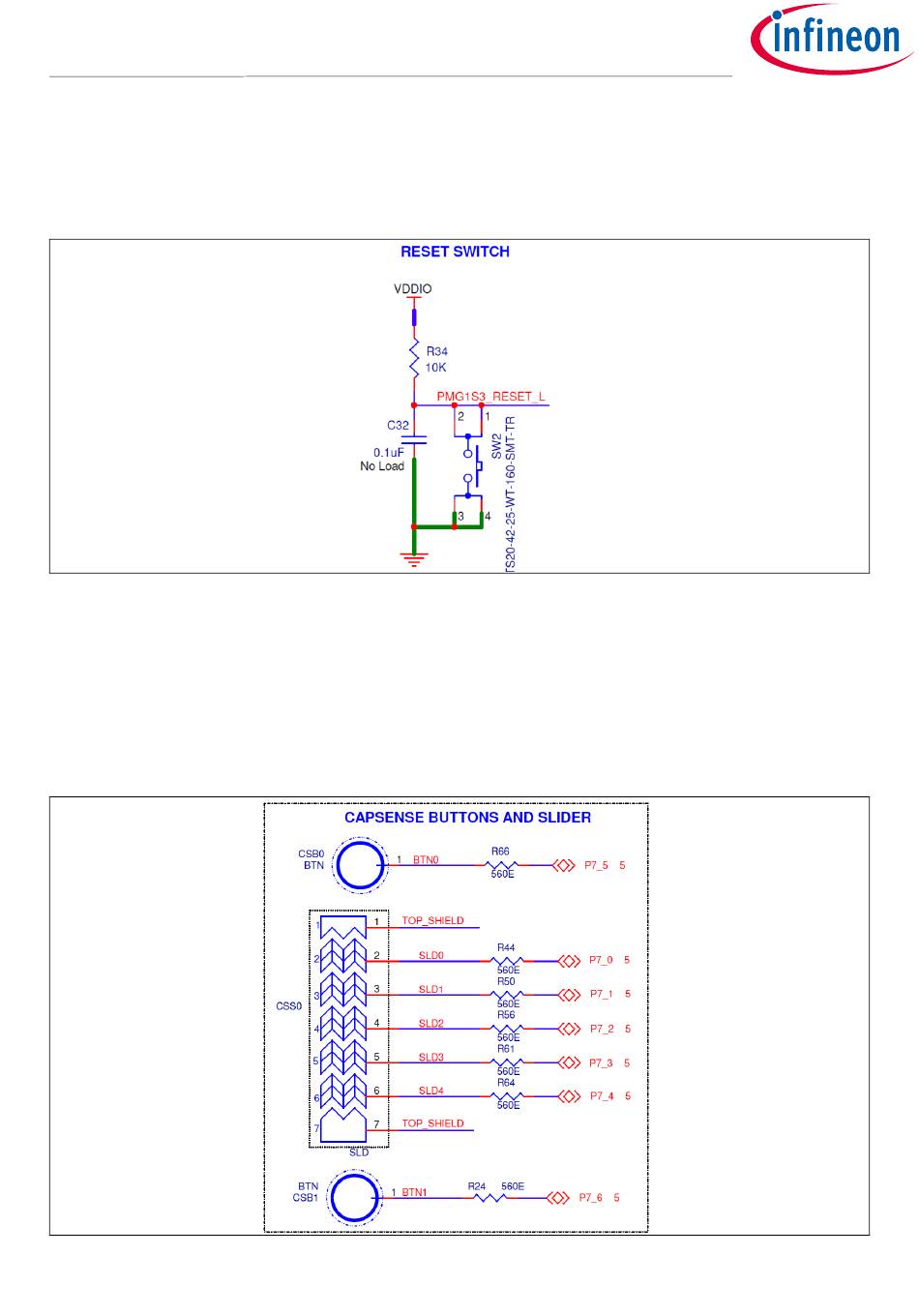

Figure 15 Reset button
3.7 CAPSENSE™ buttons and slider
The EZ-PD™ PMG1-S3 MCU supports Infineon's capacitive touch sensing called CAPSENSE™. The
EVAL_PMG1_S3_DUALDRP kit has two touch buttons and one 5-sensor slider implemented using the
CAPSENSE™ touch sensing feature. CAPSENSE™ buttons BUTTON0 and BUTTON1 are designed to exercise a
self-capacitance-based touch button implementation. The CAPSENSE™ slider is implemented using five
sensors and uses self-capacitance sensing.
Figure 16 CAPSENSE™ buttons and slider
