Bypassing the onboard 24 V PD regulator Port 0
The J16 jumper provides pinouts to bypass the onboard 24 V PD regulator as an input to the VBUS provider
path. The input USB_P_PWR_P0 of the provider path can be connected to an external PD regulator by
connecting Pins 2, 4, and 6 of J16 to the output of the external PD regulator (see
connect an external PD regulator that outputs EPR power (28 V, 5 A) to the provider path.

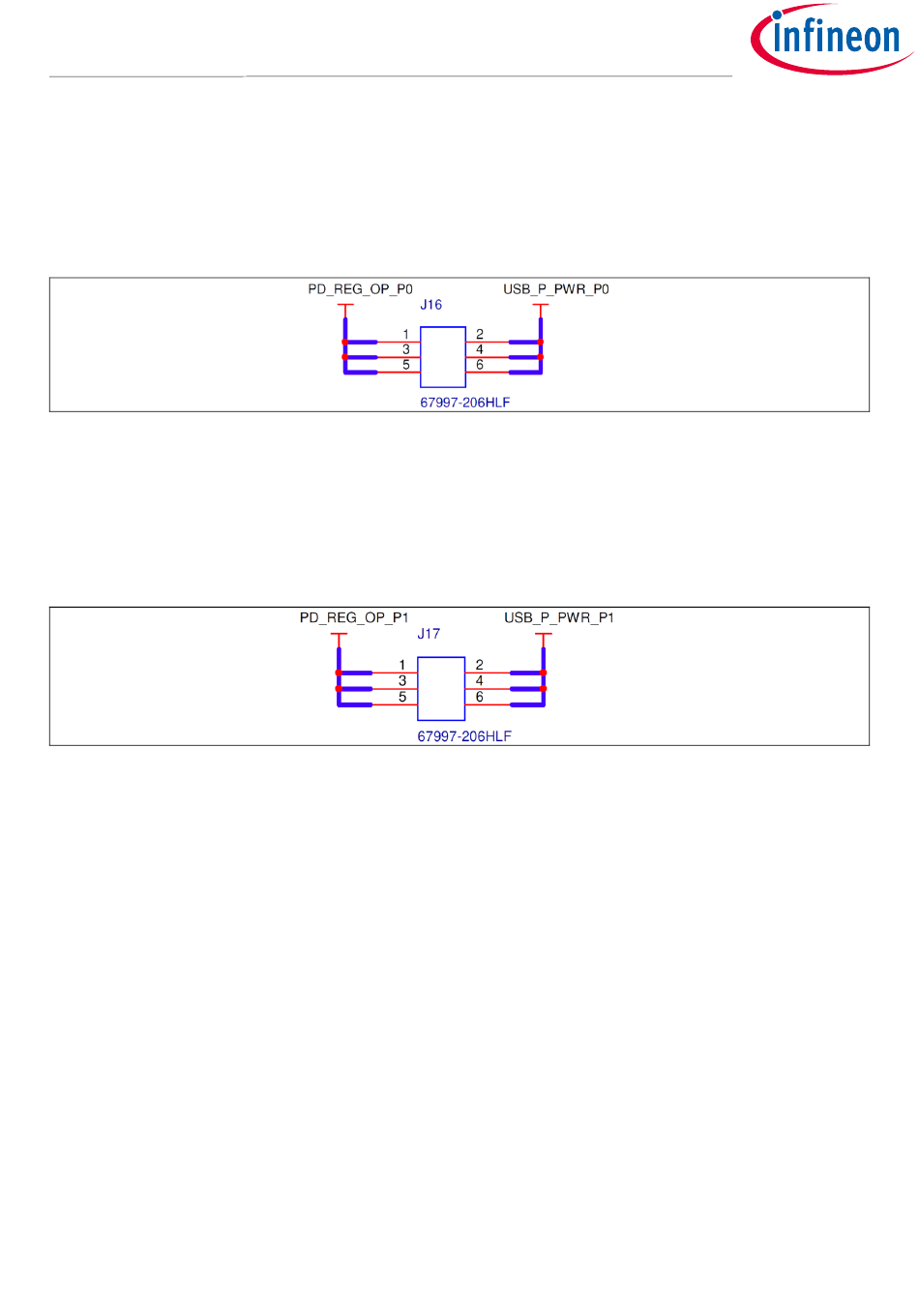

Figure 9 Jumper J16 to bypass onboard PD regulator Port 0
Bypassing the onboard 24 V PD Regulator Port 1
The J17 jumper provides pinouts to bypass the onboard 24 V PD regulator as an input to the VBUS provider
path. The input USB_P_PWR _P1 of the provider path can be connected to an external PD regulator by
connecting Pins 2, 4, and 6 of J17 to the output of the external PD regulator (see
connect an external PD regulator that outputs EPR power (28 V, 5 A) to the provider path.
Figure 10 Jumper J17 to bypass onboard PD regulator Port 1
