10BaseT Port (8-pin MJ) Straight-through Connector

The VNswitch 900CG uses a straight-through connector for its LDM 10BaseT front
panel port. Figure B-2 shows the 8-pin MJ straight-through port connector and its pin
assignments.

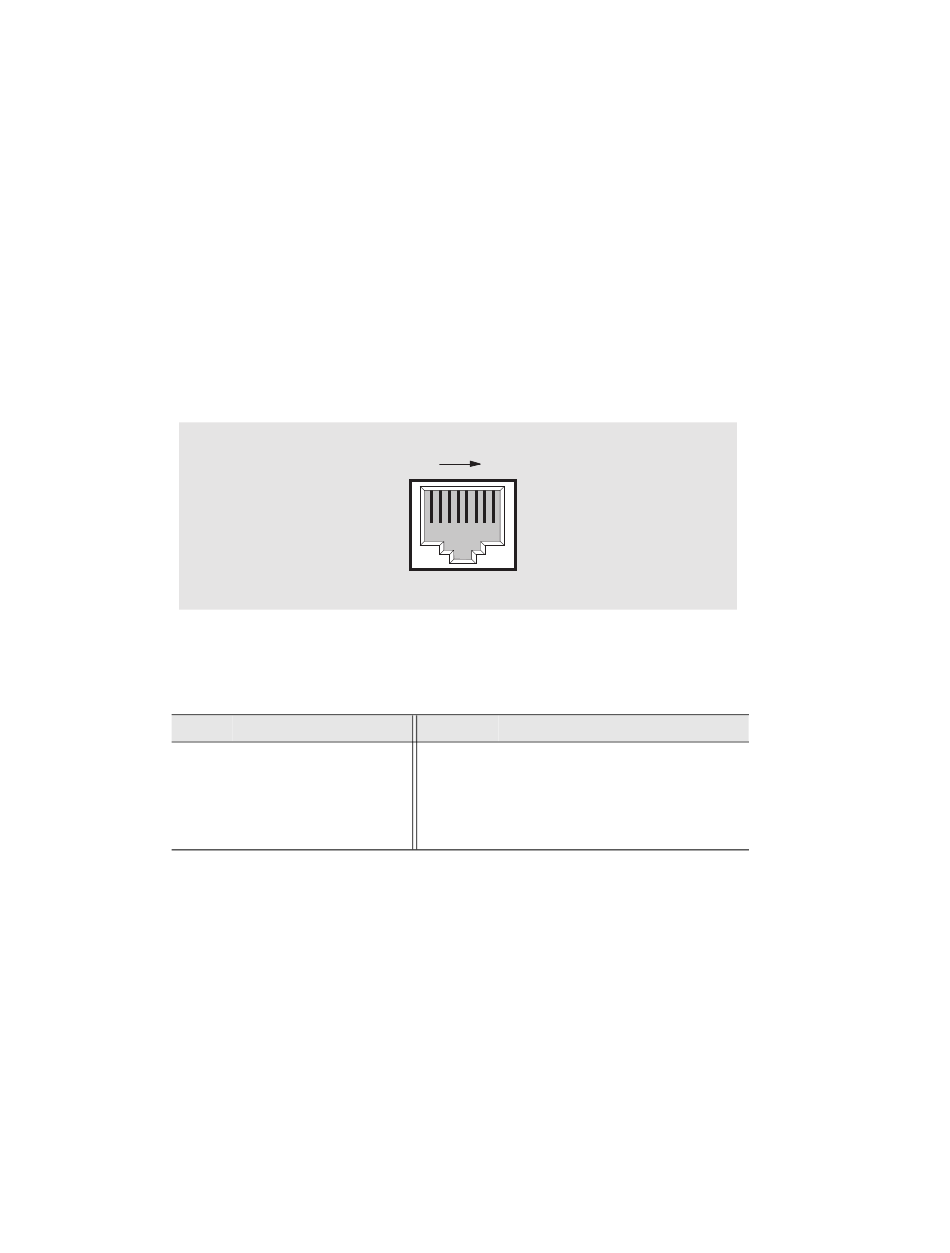

Figure B-2: 8-pin MJ Straight-through Connector
Table B-2 lists the pin assignments for the 8-pin MJ straight-through connector.
Table B-2: 8-pin MJ Straight-through Connector Pin Assignments
Pin
1
2
3
4
Assignment
TX+
TX-
RX+
NC
Connectors and Pin Assignments
1 8
Pin Assignment
5 NC
6 RX-
7 NC
8 NC
Connectors and Adapters B-3
