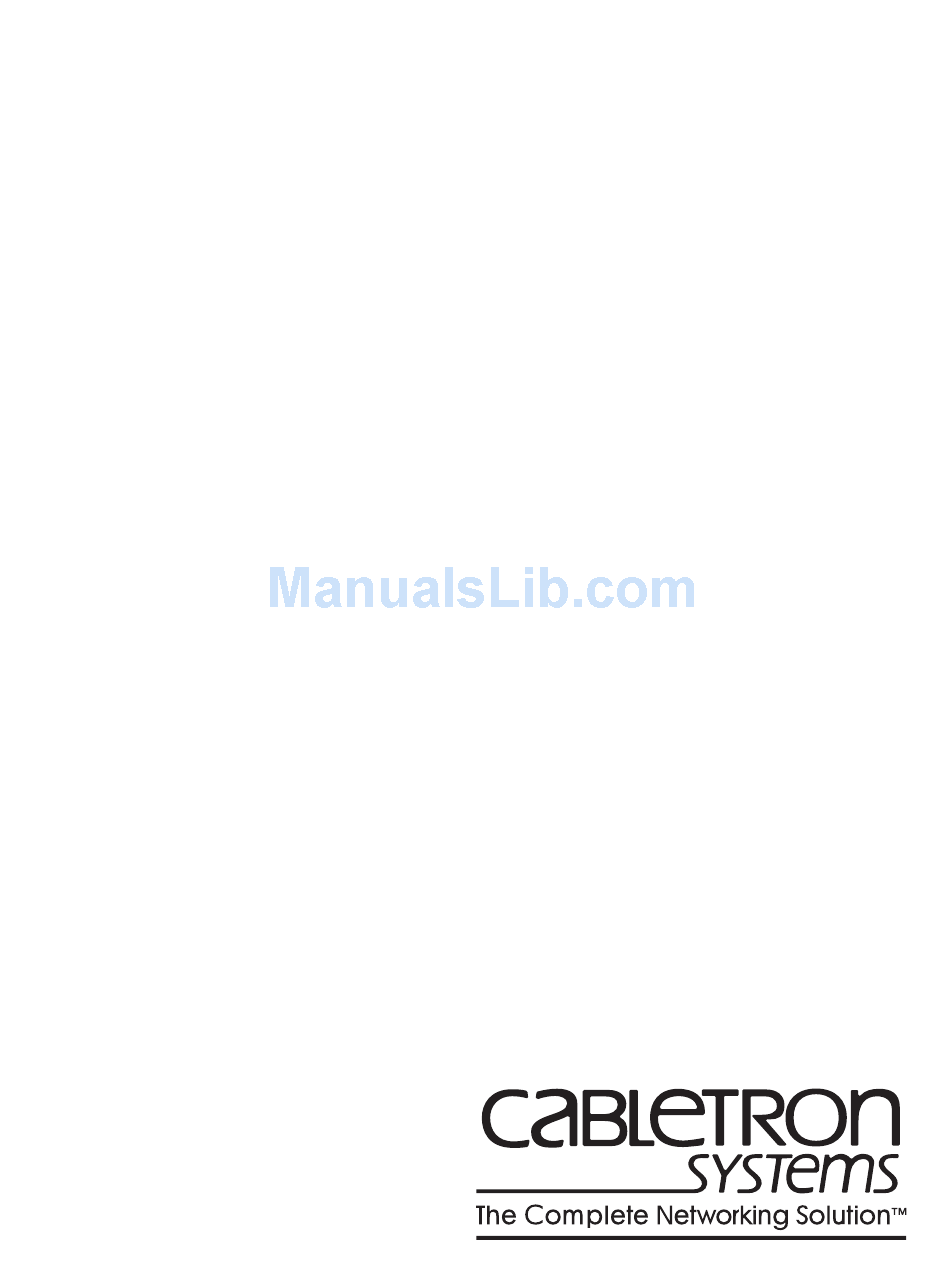

  • Page 1 SmartSwitch 9000 9H423-28 User’s Guide 9032061-01...
  • Page 3 Printed in the United States of America Order Number: 9032061-01 LANVIEW is a registered trademark, and SmartSwitch is a trademark of Cabletron Systems, Inc. CompuServe is a registered trademark of CompuServe, Inc. i960 microprocessor is a registered trademark of Intel Corp.

  • Page 4: Fcc Notice

    Notice FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.

  • Page 5: Declaration Of Conformity

    ____________________________________________________ Title Rochester, NH, USA ____________________________________________________ Location ADDENDUM 89/336/EEC 73/23/EEC Cabletron Systems, Inc. 35 Industrial Way PO Box 5005 Rochester, NH 03867 Mr. J. Solari Cabletron Systems Limited Nexus House, Newbury Business Park London Road, Newbury Berkshire RG13 2PZ, England...

  • Page 6: Safety Information

    Notice Safety Information CLASS 1 LASER TRANSCEIVERS The FPIM-05 and FPIM-07 are Class 1 Laser Products The FPIM-05 and FPIM-07 use Class 1 Laser transceivers. Read the following safety information before installing or operating these The Class 1 laser transceivers use an optical feedback loop to maintain Class 1 operation limits.
  • Page 7 Notice Safety Information CLASS 1 LASER TRANSCEIVERS Laser Radiation and Connectors When the connector is in place, all laser radiation remains within the fiber. The maximum amount of radiant power exiting the fiber (under normal conditions) is -12.6 dBm or 55 x 10 watts.
  • Page 8 Notice...

  • Page 9: Table Of Contents

    Installing the 9H423-28 Module Unpacking the Module... 2-1 Installing an FEPIM ... 2-1 User Accessible Components ... 2-2 Setting the Module DIP Switch ... 2-3 Installing the Module in the SmartSwitch 9000 Chassis ... 2-5 The Reset Switch ... 2-7 Chapter 3 Operation ENIB/FENIB...
  • Page 10 Contents Chapter 5 Specifications Technical Specifications ... 5-1 CPU ... 5-1 Memory ... 5-1 Standards:... 5-1 Network Interfaces ... 5-1 Safety... 5-2 Service ... 5-2 Physical ... 5-2 Dimensions ... 5-2 Weight ... 5-2 Environment ... 5-3 FE-100TX...A-1 FE-100FX...A-1 viii...

  • Page 11: Chapter 1 Introduction

    RISC-Based Architecture. This module can operate in two modes: either as a 28-port Ethernet traditional switch (using 802.1d standards) with a high speed backbone connection, or as a Secure Fast Switch (SFS) with 28 Ethernet connections. Each port can be configured to operate in the Full Duplex mode.

  • Page 12: Features

    Spanning Tree, RMON, and MIB support, within a scalable RISC-Based architecture. Fast Packet Switching The 9H423-28 module incorporates a hardware-based switch design referred to as the SmartSwitch ASIC, a collection of custom ASICs designed specifically for high-speed switching. Because all frame translation, address lookups, and forwarding decisions are performed in hardware, these modules can obtain a throughput performance of greater than 750K pps.
  • Page 13 negotiate duplex, both the 9H423-28 and the attached device must be configured for auto-negotiation. If only the 9H423-28 is configured for auto-negotiation, the module will set the connection to half duplex at either the 10 Mbps or 100 Mbps rate. This technology is similar to how modems negotiate transmission speed, finding the highest transmission rate possible.
  • Page 14 RAM is for the next time slice, not the current time slice. LANVIEW LEDs The 9H423-28 module uses LANVIEW – the Cabletron Systems built-in visual diagnostic and status monitoring system. With LANVIEW LEDs, you can quickly identify, at a glance, system status as well as the device, port, and physical layer status.
  • Page 15 FAST ENET 9H423-28 FAST ENET ETHERNET The 9H423-28 Module Figure 1-1. Introduction...

  • Page 16: Related Manuals

    SmartSwitch 9000 9C214-1 AC Power Supply User’s Guide SmartSwitch 9000 Local Management User’s Guide INB Terminator Modules Installation Guide Getting Help For additional support related to this device or document, contact the Cabletron Systems Global Call Center: Phone Internet mail...

  • Page 17: Chapter 2 Installing The 9H423-28 Module

    2. Remove the module from the plastic bag. Observe all precautions to prevent damage from Electrostatic Discharge (ESD). 3. Carefully examine the module, checking for damage. If any damage exists, DO NOT install the module. Contact Cabletron Systems Technical Support immediately. Installing an FEPIM The 9H423-28 provides a slot for a Cabletron FEPIM (Fast Ethernet Port Interface Module).

  • Page 18: User Accessible Components

    User Accessible Components Figure 2-2 shows the various components that can be accessed by users. These consist of an eight-position dip switch (explained in the next section), replaceable PROMs, and sockets for memory and flash upgrades. These will be used for future upgrades.

  • Page 19: Setting The Module Dip Switch

    The DIP switch on the 9H423-289 module (Figure 2-2 ), is an eight-switch DIP located near the right and center of the module. Each switch is set according to the functions described in Table 2-1. If switch settings are changed, the processor on the module must be reset, using the reset switch or repowering the module, for changes to take effect.
  • Page 20 Reserved Reserved Reserved Reserved Caution: Do not toggle Switch 8 unless you intend to reset the user configured passwords to the factory default settings. CAUTION Caution: Do not toggle Switch 7 unless you intend to reset the user entered parameters to the factory default settings.

  • Page 21: Installing The Module In The Smartswitch 9000 Chassis

    Installing the Module in the SmartSwitch 9000 Chassis To install the 9H423-28 module in the SmartSwitch 9000 chassis, follow the steps below: 1. Remove the blank panel covering the slot in which the module will be mounted. All other slots must be covered to ensure proper air flow and cooling.
  • Page 22 Installing the 9H423-28 Module Metal Back-Panel Module Module Guides Warning: Ensure that the circuit card is between the card guides. Lock down the top and bottom plastic tabs at the same time, applying even pressure. Figure 2-3. Installing the Module Plastic Tab Jack for ESD Wrist Strap...

  • Page 23: The Reset Switch

    The Reset Switch The Reset switch is located on the front panel, under the top plastic tab as shown in Figure 2-4. It serves three functions: resetting the i960 processor, shutting down the module, or restarting the module. • To reset the i960 processor, press the reset switch twice within three seconds.
  • Page 24 Installing the 9H423-28 Module...

  • Page 25: Chapter 3 Operation

    Chapter 3 Operation The 9H423-28 module is a twenty-nine port device. Two front panel RJ21 connectors support twenty-four 10BASE-T ports, along with two RJ45 connectors, ST fiber connectors and a slot for an FEPIM that support four 100BASE-T ports. Each of these twenty-eight ports is a separate collision domain, while the 29th port connects to INB-B.

  • Page 26: Enib/Fenib

    Ethernet data packets for transmission out front panel ports. FENIB FENIB Diagnostic i960 Controller Processor ENIB DC/DC Converter ENIB Smart Switch ASIC ENIB ENIB ENIB ENIB Figure 3-1. Packet Flow for the 9H423-28 SMB 1 SMB 10...

  • Page 27: Smartswitch Asic

    64 ports shared between the host processor, the INB backplane, and LAN/WAN interfaces on the front panel of SmartSwitch 9000 modules. The SmartSwitch ASIC can operate in two modes: as a traditional switch or as a SecureFast Switch (SFS).

  • Page 28: Vlan Domains

    VLAN domains consist of groups of interconnected VLAN switches separated by routing devices. Figure 3-3 shows such an arrangement. Each group of switches constitutes a VLAN domain. VLAN Domain SFS Network VLAN Switch VLAN Switch VLAN Switch LAN A SFS Network...

  • Page 29: Fully-Meshed Vlan Domains

    The circuit is set up, data is transferred, and the circuit is torn down. Switches switch packets at the MAC layer and allow connectivity of endpoints via Access Ports based on VLAN mappings. The first packet is routed, the remaining packets are then switched along the same path.

  • Page 30: I960 Core

    Operation i960 Core The i960 core provides the SNMP protocol stacks to support industry-standard MIBs. Additionally, Cabletron enterprise extension MIBs are supported for each media type. Advanced management services, such as the Distributed LAN Monitor, telnet and network address to MAC address mapping, are also provided by the i960 core.

  • Page 31: Smb-10 Bus

    SMB-10 Bus The SMB-10 is a 10Mbs management bus located within the SmartSwitch 9000. This bus is used for inter-chassis communication of modules as well as serving as an side-band management channel into the SmartSwitch 9000. The SMB-10 is externalized from the chassis via an optional Ethernet Port Interface Module (EPIM) located on the front of the Environmental Module.

  • Page 32: Itdm Arbitration Levels

    Operation Arbitration for the backplane is accomplished in the INB Time Division Multiplexing (ITDM) logic. The arbitration is a three-level scheme that ensures that no one can get the backplane for more than one time slice at a time. The ITDM RAM contains 256 4-bit locations. This RAM is used to hold slot numbers of modules participating in INB backplane arbitration.

  • Page 33: Monarch/Slave Smartswitch 9000 Modules

    Operation Monarch/Slave SmartSwitch 9000 Modules All modules in an SmartSwitch 9000 chassis that transfer packets across the INB backplane have identical INB interfaces. However, one of them has to be selected to perform the backplane arbitration. The lowest slot number module will automatically be selected as the arbitrator.
  • Page 34 Operation 3-10...

  • Page 35: Lanview Leds

    LANVIEW LEDs The front panel LANVIEW LEDs indicate the status of the module and may be used as an aid in troubleshooting. Figure 4-1 shows the LANVIEW LEDs of the 9H423-28 module. INB Receive FAST ENET 9H423-28 FAST ENET Port Transmit ETHERNET Figure 4-1.
  • Page 36 LANVIEW LEDs The function of the two System Status LEDs, System Management Bus (SMB) and CPU (Central Processing Unit), are listed in Table 4-1. Table 4-1. System Status (SMB and CPU) LEDs LED Color State Green Functional Yellow Testing Yellow (Blinking) Crippled Yellow/Green Booting...
  • Page 37 The function of the Port Receive LEDs is listed in Table 4-4 LED Color Green Link, no activity port enabled Green (Blinking) Link, port disabled Yellow (Flashing) Link, activity, port enabled (flashing to steady on indicates rate) Fault No link, (port disabled) The function of the Port Transmit LEDs is listed in Table 4-5.
  • Page 38 LANVIEW LEDs...

  • Page 39: Chapter 5 Specifications

    Specifications Technical Specifications Intel i960 RISC based microprocessor Memory 4 Mb Local RAM (expandable to 32 Mb) 4 Mb Flash Memory (expandable to 32 Mb) 2 Mb Packet RAM 16 Mb DRAM Standards: IEEE 802.1D IEEE 802.3j 10BASE-FL Network Interfaces Straight through (ST) connectors Chapter 5...

  • Page 40: Safety

    Specifications Safety It is the responsibility of the person who sells the system to which the module will be a part to ensure that the total system meets allowed limits of conducted and radiated emissions. CAUTION This equipment meets the safety requirements of: UL 1950 CSA C22.2 No.

  • Page 41: Environment

    Environment Operating Temperature Storage Temperature Relative Humidity 5 to 40° C -30 to 90° C 5% to 95% non-condensing Specifications...
  • Page 42 Specifications...

  • Page 43: Fepim Specifications

    The slide switch on the FE-100TX determines the crossover status of the cable pairs. If the switch is on the X side, the pairs are internally crossed over. If the switch is on the = side, the pairs are not internally crossed over. Figure A-1 shows the pinouts for the FEPIM-100TX in both positions.
  • Page 44 FEPIM Specifications Cable Type 50/125 µm fiber 62.5/125 µm fiber 100/140 µm fiber The transmitter power levels and receive sensitivity levels listed are Peak Power Levels after optical overshoot. A Peak Power Meter must be used to correctly compare the values given above to those measured on any particular port. If Power levels are being measured with an Average Power Meter, add 3 dBm to the measurement to compare the measured values to the values listed above.
