Connectors and Pin Assignments
Connectors and Pin Assignments

100BaseTX Port (8-pin MJ) Crossover Connector

The DIGITAL VNswitch 900CG uses crossover connectors for its sixteen 100BaseTX
front panel ports. Figure B-1 shows the 8-pin MJ crossover connector and its pin
assignments.

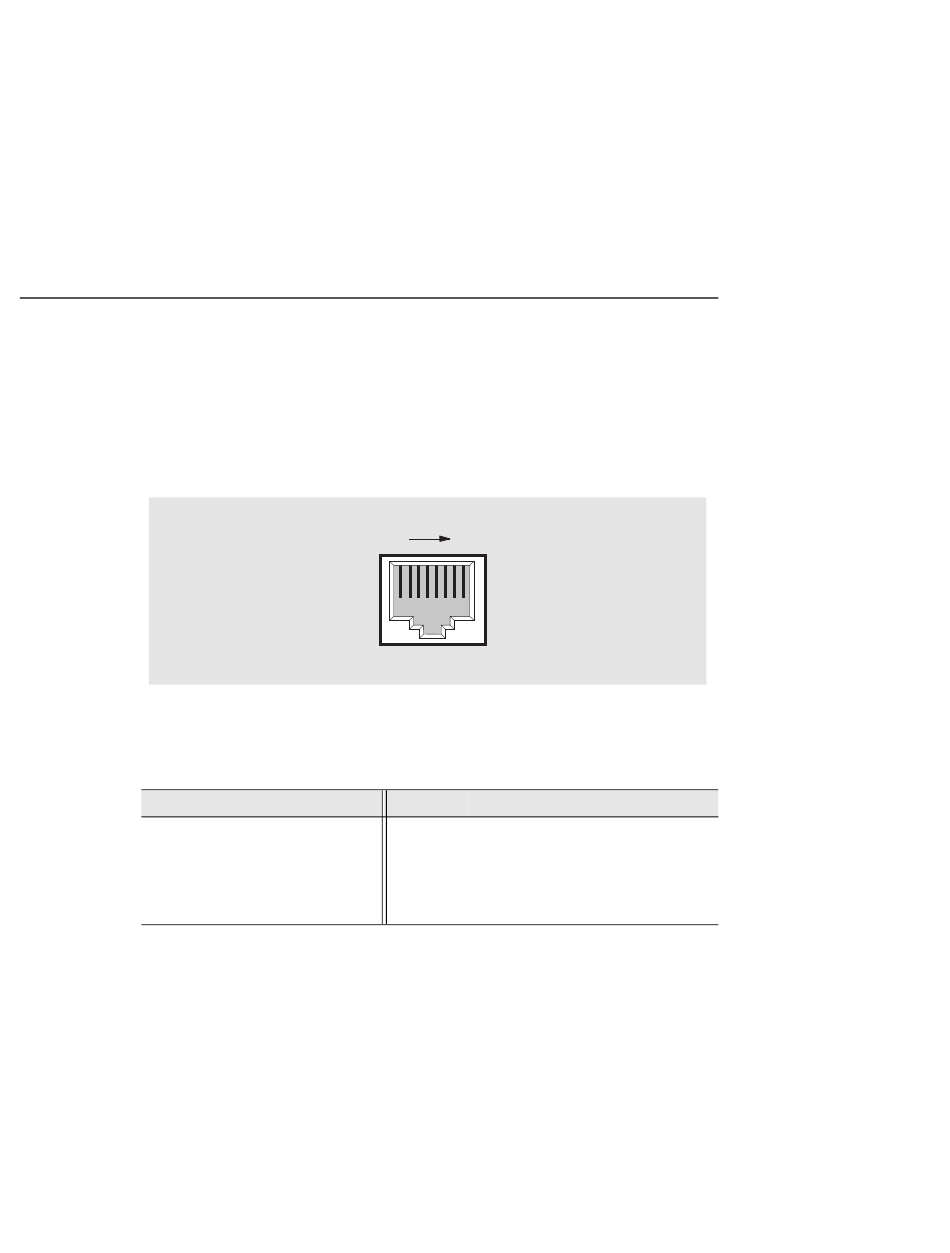

Figure B-1: 8-pin MJ Crossover Connector
Table B-1 lists the pin assignments for the 8-pin MJ crossover connector.
Table B-1: 8-pin MJ Crossover Connector Pin Assignments
Pin
1
2
3
4
B-2 Connectors and Adapters
Assignment
RX+
RX-
TX+
Chassis Ground
1 8
Pin Assignment
5 Chassis Ground
6 TX-
7 Chassis Ground
8 Chassis Ground
NPG-8719-95F
