Task 2: Seat the Module

To seat the module into a DIGITAL MultiSwitch 900 (Figure 2-4), complete the
following steps:
Step
1
2
3
4

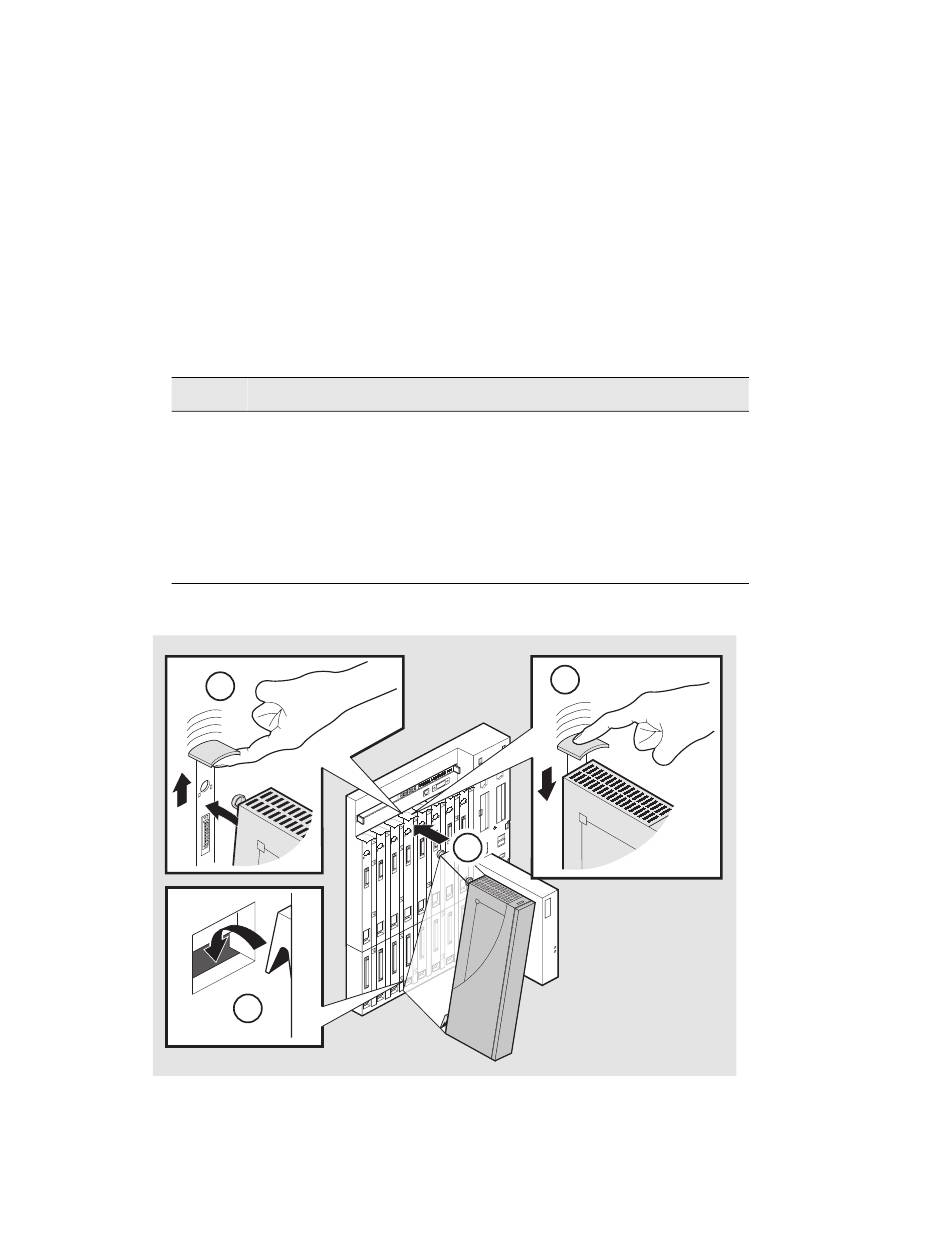

Figure 2-4: Seating the Module
2
Action
Place the module's mounting tab (1) into a mounting slot on the
DIGITAL MultiSwitch 900.
Pull up the release lever (2) to its unlocked position.
Pivot the module on the mounting tab, align the connectors, and firmly
push the module onto the backplane connectors.
Press down the release lever (3) to ensure that it is locked.
1
How to Install the Module
4
3
Installing the DIGITAL VNswitch 900CG 2-9
