Tunnel Gateway LED Indicators

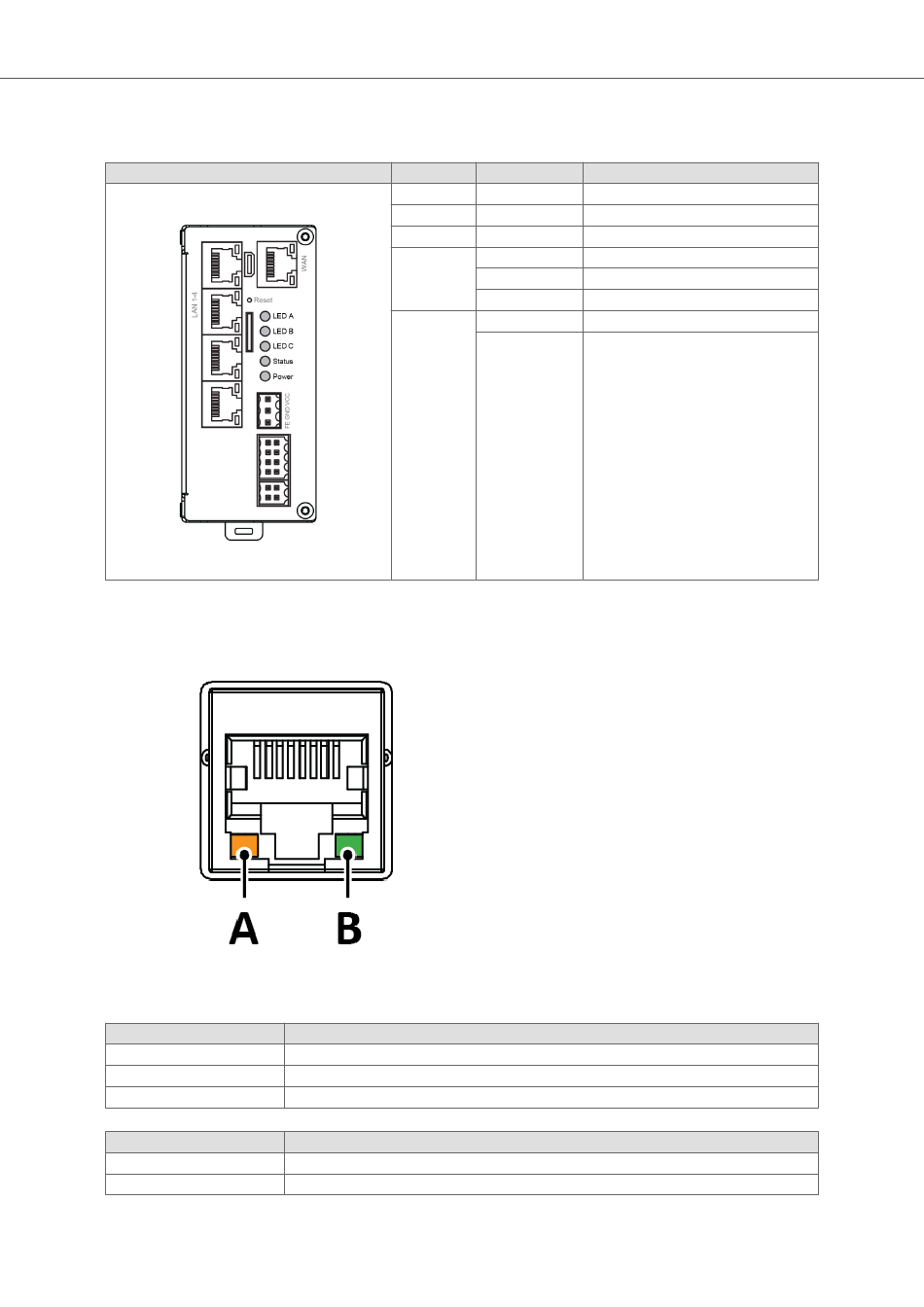

6.2. Tunnel Gateway LED Indicators
Tunnel Gateway

6.3. Ethernet LED Indication

Figure 20. RJ45 LED indicators
LED A – LINK
Off
Yellow
Yellow, flashing
LED B – ACTIVITY
Off
Green
SCM-1202-233 Version 1.0
LED Indicator
LED A
LED B
LED C
Status
Power
Function
No Ethernet link or no power
Ethernet link established
Ethernet traffic
Function
No power
Power on
Operation Status Description
N/A For future use.
N/A For future use.
N/A For future use.
Off Reset/Reboot function is inactive.
Green Reboot function is active.
Green, blink Factory reset function is active.
Green Tunnel Gateway is powered.
Off Tunnel Gateway is not powered.
®
Anybus Tunnel Gateway
