4.3. Connect Ethernet Devices
TIP
When configuring the Tunnel Gateway, use one of the LAN switch ports to connect to your PC.

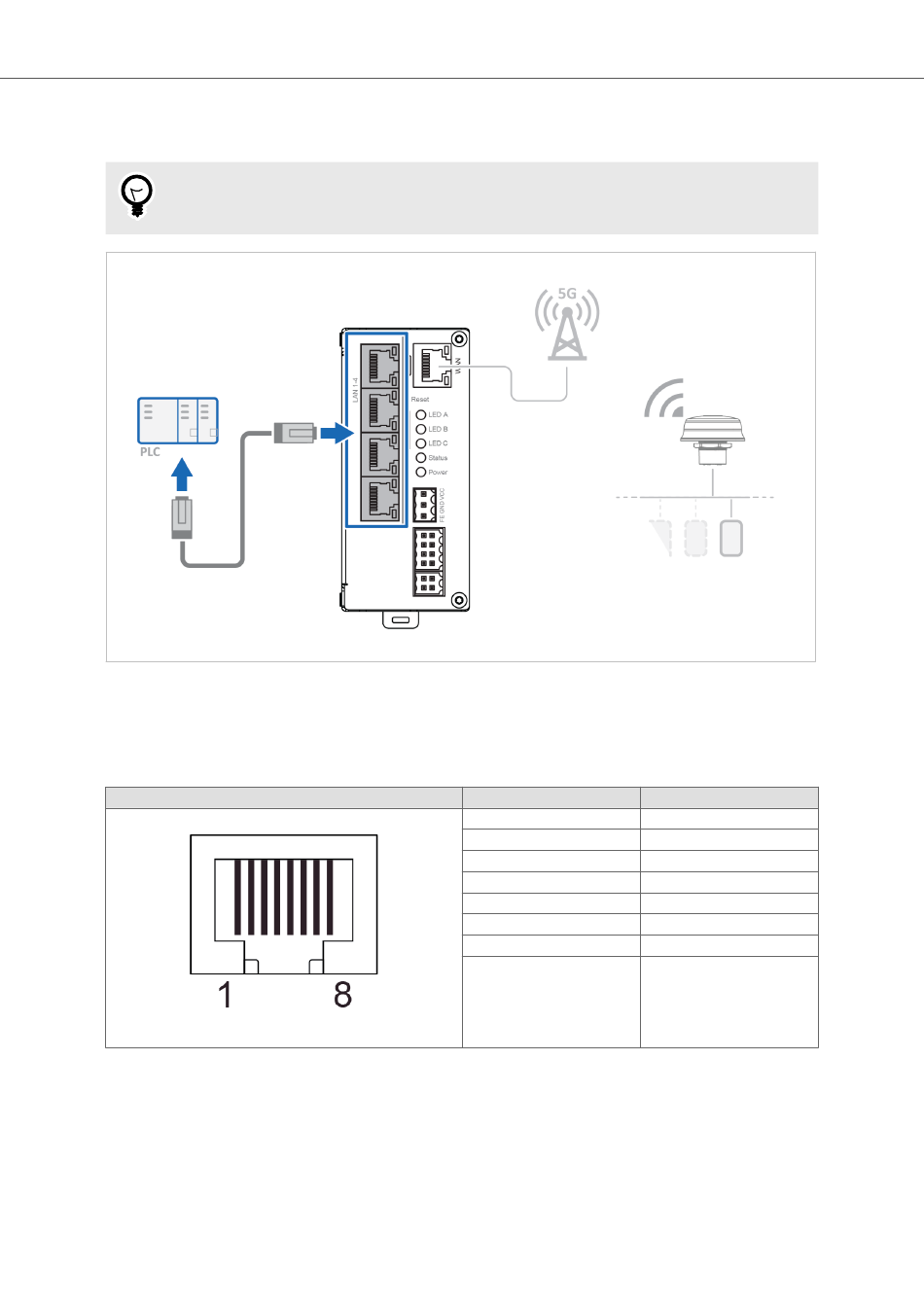

Figure 3. LAN switch ports, ETH 1-4
Connect your Ethernet device(s) to the Tunnel Gateway LAN switch ports ETH 1-4.
Ethernet RJ45 Connector Pinout
Ethernet RJ45 Connector
SCM-1202-233 Version 1.0
Pin
1
2
3
4
5
6
7
8
®
Anybus Tunnel Gateway
Description
TD+
TD-
RD+
Not used
Not used
RD-
Not used
Not used
