Setup Virtual Tunnel
Tunnel Gateway Configuration

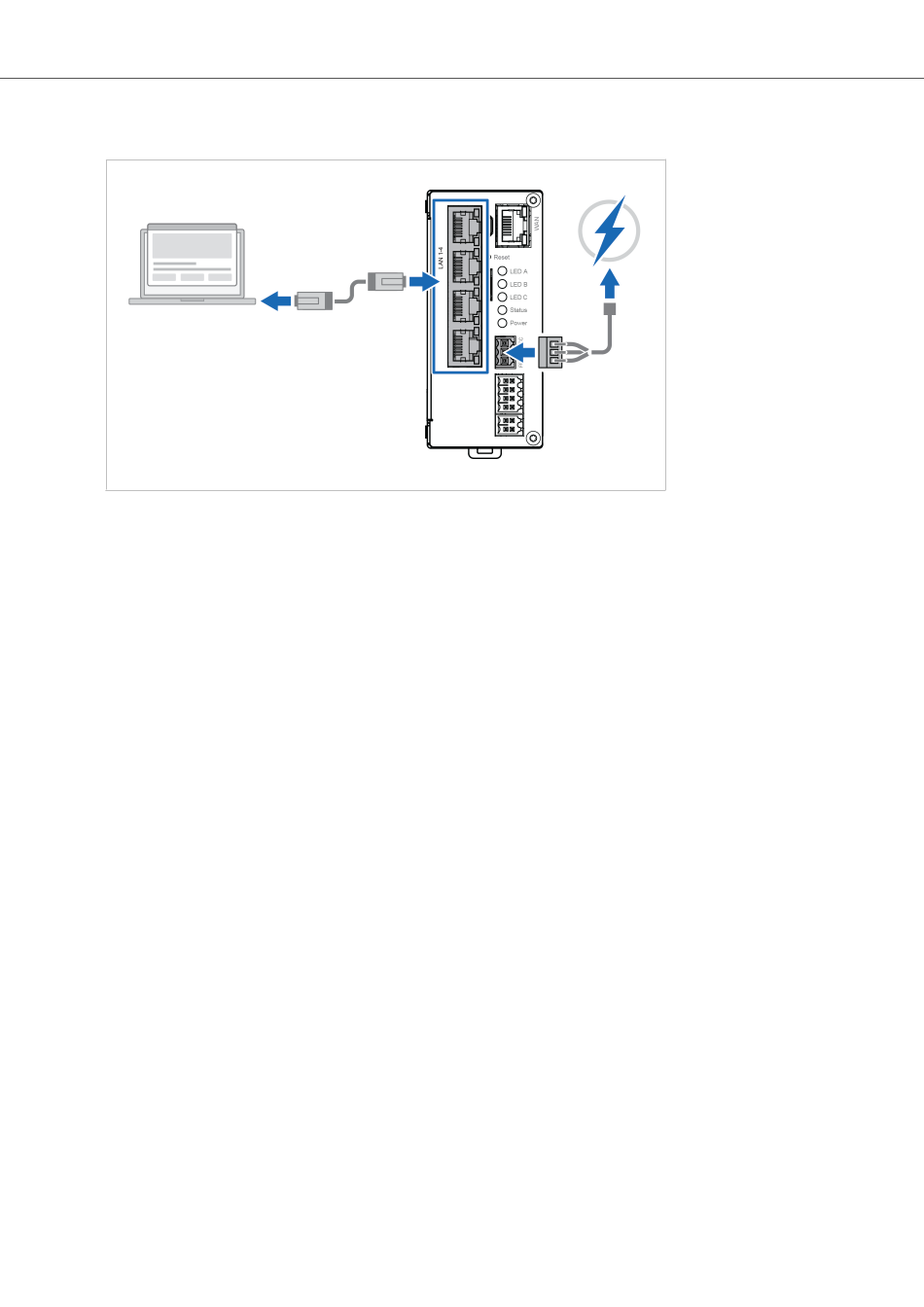

Figure 12. Connect the Tunnel Gateway to your PC and to power
Procedure
1.
Connect one of the Tunnel Gateway Ethernet ports, ETH 1-4, to your PC.
2.
Connect the Tunnel Gateway to power.
3.
Login to the Tunnel Gateway built-in web interface.
4.
On the Tunnel page, add tunnel(s) and configure the tunnel settings.
See
Tunnel Settings (page
5.
On the WAN page, configure the IP settings for the 5G core network that the Tunnel Gateway is connected
to.
See
WAN Settings (page
6.
On the Local Ethernet page, configure the IP settings for the Ethernet device(s)—in this example, a PLC—to
be connected to the Tunnel Gateway via an Ethernet cable.
See
Local Ethernet Settings (page
7.
For the setting to take effect, click Apply.
8.
Disconnect the Tunnel Gateway from power and your PC.
SCM-1202-233 Version 1.0
19).
21).
22).
®
Anybus
Tunnel Gateway
Page 17 of 45
