4.4. Connect to Power

Before You Begin
CAUTION
Ensure that the power supply is turned off before connecting it to the equipment.
CAUTION
Connecting power with reverse polarity or using the wrong type of power supply may damage the
equipment. Make sure that the power supply is connected correctly and of the recommended type.
IMPORTANT
Use a 24 V (9 - 32 VDC), 1.5 A power supply.
IMPORTANT
The power supply circuit must fulfill the Safety Extra Low Voltage (SELV) requirements.
IMPORTANT
For EMC compliance, the equipment must be electrically grounded using a protected extra-low
voltage (PELV) circuit.
IMPORTANT
The GND terminal of the power supply connector, together with the DIN rail, must be connected to
earth.

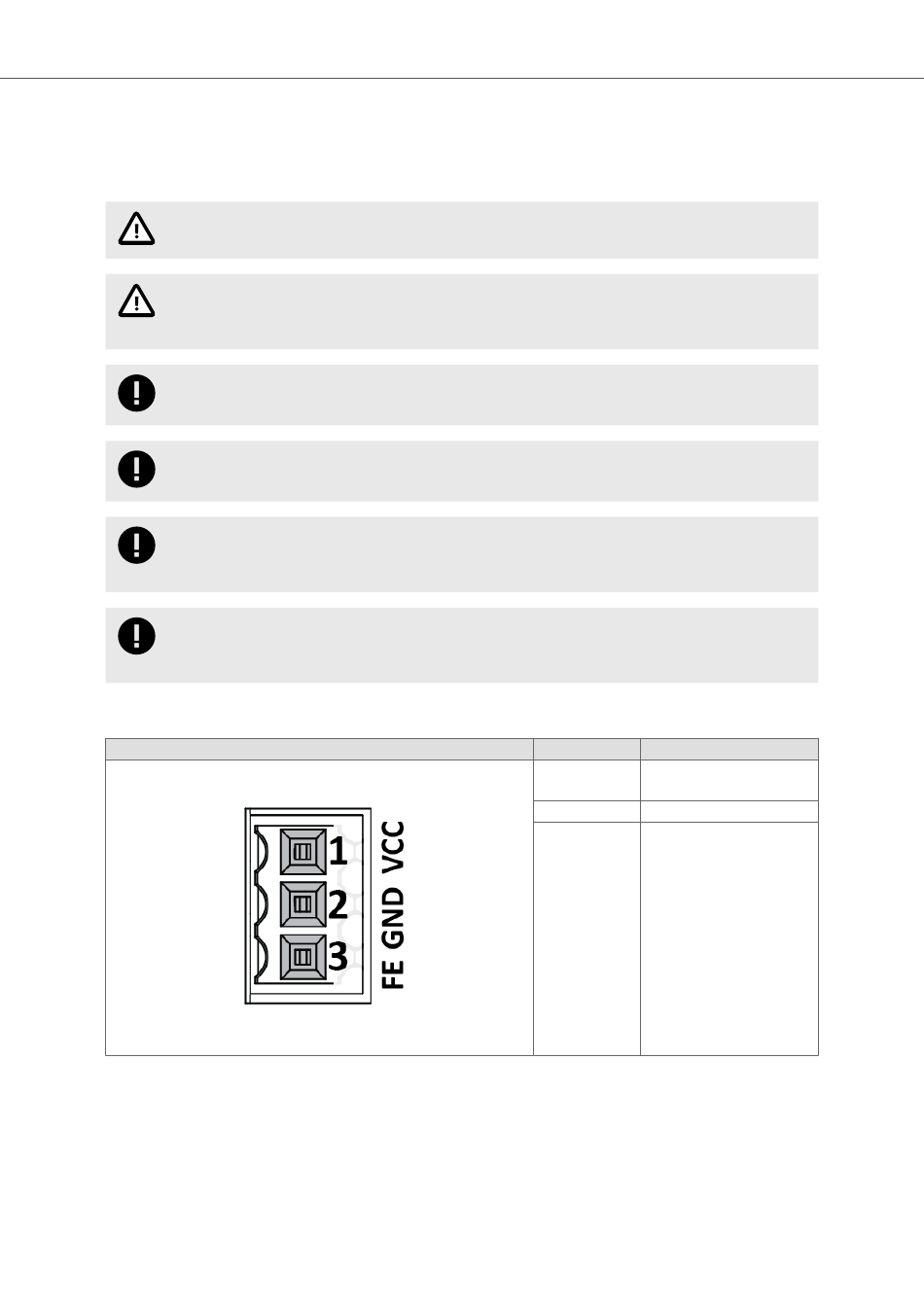

Power Connector Pinout
Power port
Page 8 of 45
Pin Description
1 Voltage Common Collector (VCC)
24 VDC
2 Ground (GND)
3 Functional Earth (FE)
